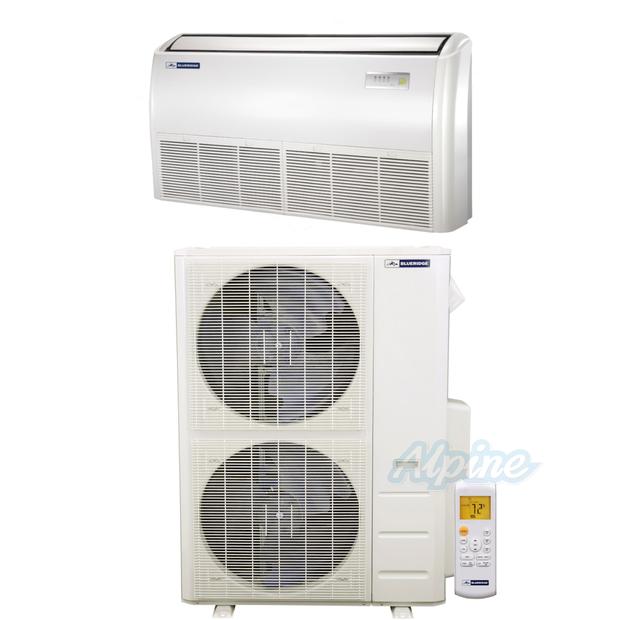

60,000 BTU (5 Ton) 18 SEER U-Match Single Zone Wall/Ceiling Ductless Mini Split System

60,000 BTU (5 Ton) 18 SEER U-Match Single Zone Wall/Ceiling Ductless Mini Split System

Model: Blueridge BM60UY18FCC

highlights
Midea Floor Ceiling
Blueridge logo
Heat or Cool Any Space,
Simply and Affordably
affordable icon
Surprisingly
Affordable
quiet icon
Incredibly
Quiet
reviews icon
Great
Reviews
easy to install icon
Easy to
Install
What is a Blueridge Ductless System?
It's a better way to heat and cool any space without the need for ductwork. Includes an outdoor heat pump condenser and 1 to 5 indoor air handlers. It's inexpensive to own and operate, easier to install and whisper quiet.
Homeowners and contractors love Blueridge ductless mini-splits. If you own a home, you will want one.
Midea Floor Ceiling
Blueridge mini-splits are a high quality, energy efficient and inexpensive option for cooling and heating many types of spaces without ductwork.
Blueridge mini-splits compare favorably to well-known brands at a fraction of the price. They have the highest online product ratings of all mini-split brands. Their affordability, ease of installation, and high quality make them a favorite among contractors and homeowners.
Benefits
Quiet
Quiet
Both the indoor and outdoor units operate so quietly you may not be aware they are running. You will just be aware that you are comfortable.
Affordable
Affordable
The great value extends beyond the low purchase price of these units. You will be pleasantly surprised by how inexpensive they are to operate.
Efficient
Efficient
Lower your utility bills with inverter technology, by using less electricity and no fossil fuels to accomplish your heating and cooling needs. This is intelligent equipment for a sustainable and comfortable lifestyle.
Versatility
Versatility
Because there is no ductwork, this is a solution for all kinds of hard-to-fit applications. Any room or space can be transformed into a place for you and others to enjoy for years to come.
Simple Installation
Simple Installation
If you're handy, you can accomplish 90% of the installation yourself by following the simple directions and watching our helpful video. Bring in a professional to finish the job and you're set.
Heat or Cool Any Type of Space:
Entire homes
Condos
Bonus rooms
Hotel rooms
Small businesses
Studios
Tiny homes
Coffee shops
Pool houses
Workshops
Offices
Man caves
Attics
Casitas
Retreat spaces
Sun rooms
Basements
Garages
Enclosed porches
Mother-in-law apartments
Many more applications
Videos
Blueridge Ductless Mini-Split AC Highlights
Video thumbnail
Blueridge Mini-Splits also Provide Heat!
Video thumbnail
Great customer reviews
Great Product!
Simon
Cleveland, GA
This is an outstanding product at a reasonable price.
Mike
Birmingham AL
Great mini-split system!
Marq
New Bern, NC
Installed easily and works very quietly.
Mike
Palm Desert, CA
Excellent! Works great.
Vic
Jefferson, GA
I would buy it again.
Jack
Johns Creek, GA
View All Reviews
Blueridge BM60MFCC Unit Type:
Wall / Ceiling Console
These units surface-mount on the wall or ceiling for a simpler, more flexible installation. Vertically, they mount all the way down near the floor. They can be mounted anywhere on the ceiling. Condensation may be pumped upward to a gravity drain, or a drain hose can be run along the ceiling inside conduit.
Wall / Ceiling Console
Installation
Mount
Step 1
Mount
Once you have received the product, mount the indoor and outdoor units to your desired resting location.
Connect
Step 2
Connect
Next, run the line sets, drain line, and electrical wires from the indoor unit(s) to the outdoor unit.
Electrical
Step 3
Electrical
Run a 220 volt power circuit from your main breaker to the outdoor disconnect. Then run the electrical whip from the disconnect to the outdoor unit.
Pro Start Up
Step 4
Pro Start Up
We'll help you get an HVAC contractor who will pressure test the line sets, check for leaks, and release refrigerant. Click Here For Details
How to Install a Blueridge Ductless Mini-Split AC System
Video thumbnail
View installation manual for complete instructions
Andrew Arthurs
CEO and Founder
Andrew Arthurs
Alpine Home Air Products
Blueridge ductless mini-splits are exclusive to Alpine Home Air and are one of our most popular brands. These units are manufactured to our specifications by the largest, most reputable HVAC manufacturer in the world.
Our customers love them! We receive rave reviews because these products are solidly-engineered, thoroughly tested, reliable, and quiet. Our customers order Blueridge because of the incredible value and savings. Competing brands cost more for one reason: a long supply chain raising the price before the product hits your door. With Blueridge, we buy directly from the manufacturer and our customers save thousands of dollars. Long established throughout the rest of the world, mini-splits are quickly gaining popularity across America. The ease of installation, versatility, and savings cannot be matched. We know you will love our Blueridge mini-splits as much as we do. Please tell your friends and help us get the word out.
Blueridge BM60UY18FCC
Standard Features
Convenient remote control enables unique temperatures to be set per zone.
High-efficiency inverter technology allows for even cooling and heating while reducing energy costs.
Gold fin condenser coil coating extends the life of your system by protecting it from corrosion.
Intelligent sleep function adjusts to your sleep pattern in order to maximize your comfort and reduce energy costs. User controls direct air flow.
Intelligent defrost reduces energy and defrost time by only defrosting when needed.
This System Includes*
Blueridge BM60UYC
60,000 BTU Single Zone Ductless Mini Split Outdoor Condenser
Blueridge BM60MFCC
60,000 BTU Single Zone Floor/Ceiling Console Ductless Air Handler
Blueridge 17317000A63544
RG10B(D1)/BGEFU1 Remote Controller
important
*NOTE: Does not include all required components for installation. See required components below in the accessories section to complete your system.
Specs
System Information
view information
Mini-Split System Type
Heating / Cooling
view information
Zones
1
view information
Factory Precharge
25 Feet
view information
Indoor Air Handler Type(s)
Floor Ceiling
view information
Product Type
U-Match
view information
Refrigerant
R-410A
Features
view information
WIFI (2.4GHz)
Yes (With Adapter)
Efficiency
view information
Coefficient of Performance (at 47 F)
3.16 COP
view information
Energy Efficiency Ratio
9.8 EER
view information
SEER
18.0 SEER
view information
Heating Seasonal Performance Factor
9.1 HSPF
Performance
view information
Ambient Temperature Range (Cooling)
122 / 5 °F
view information
Ambient Temperature Range (Heating)
5 / 86 °F
view information
Low Ambient Cooling
Yes
view information
Base Heating Capacity
60000 BTU
view information
Airflow Capacity
1384 / 1029 / 795 CFM
view information
Total Cooling Capacity
5 Ton(s)
view information
Maximum Heating Capacity
60000 BTU
view information
Base Cooling Capacity
54000 BTU
view information
Lowest Ambient Temperature (Heating)
5 °F
view information
Maximum Cooling Capacity
54000 BTU
view information
Compressor Type
Inverter
view information
Cooling Tonnage
5 Tons
view information
Sound Rating, Indoor
39 / 50 / 55 Decibels
view information
Sound Rating, Outdoor
65 Decibels
Electrical Information
view information
Frequency
60 Hz
view information
Voltage Phase
1
view information
Minimum Ampacity
36 Amps
view information
Maximum Fuse/Breaker
50 Amps
view information
Voltage
208 - 230 Volts
Line Set Information
view information
Maximum Line Length per Zone
213 Feet
view information
Maximum Height Difference
98 Feet
view information
Liquid Line Size (OD)
3/8 Inches
view information
Suction Line Size (OD)
3/4 Inches
view information
Line Set Connection Type
Flare
Product Dimensions
view information
Indoor Air Handler Size, W x H x D
64.96 x 9.25 x 26.57 Inches
view information
Outdoor Condenser Size, W x H x D
37.48 x 52.48 x 16.34 Inches
Indoor Air Handler Weight
101.2 Lbs
Outdoor Condenser Weight
224.9 Lbs
view information
Footprint Mounting Holes (W x D)
25 x 15.9 Inches
Warranty
view information
Compressor Warranty
7 Years
view information
Parts Warranty
5 Years
Certifications
view information
Qualifies for Govt. Money
No
view information
ENERGY STAR® Certified
No
