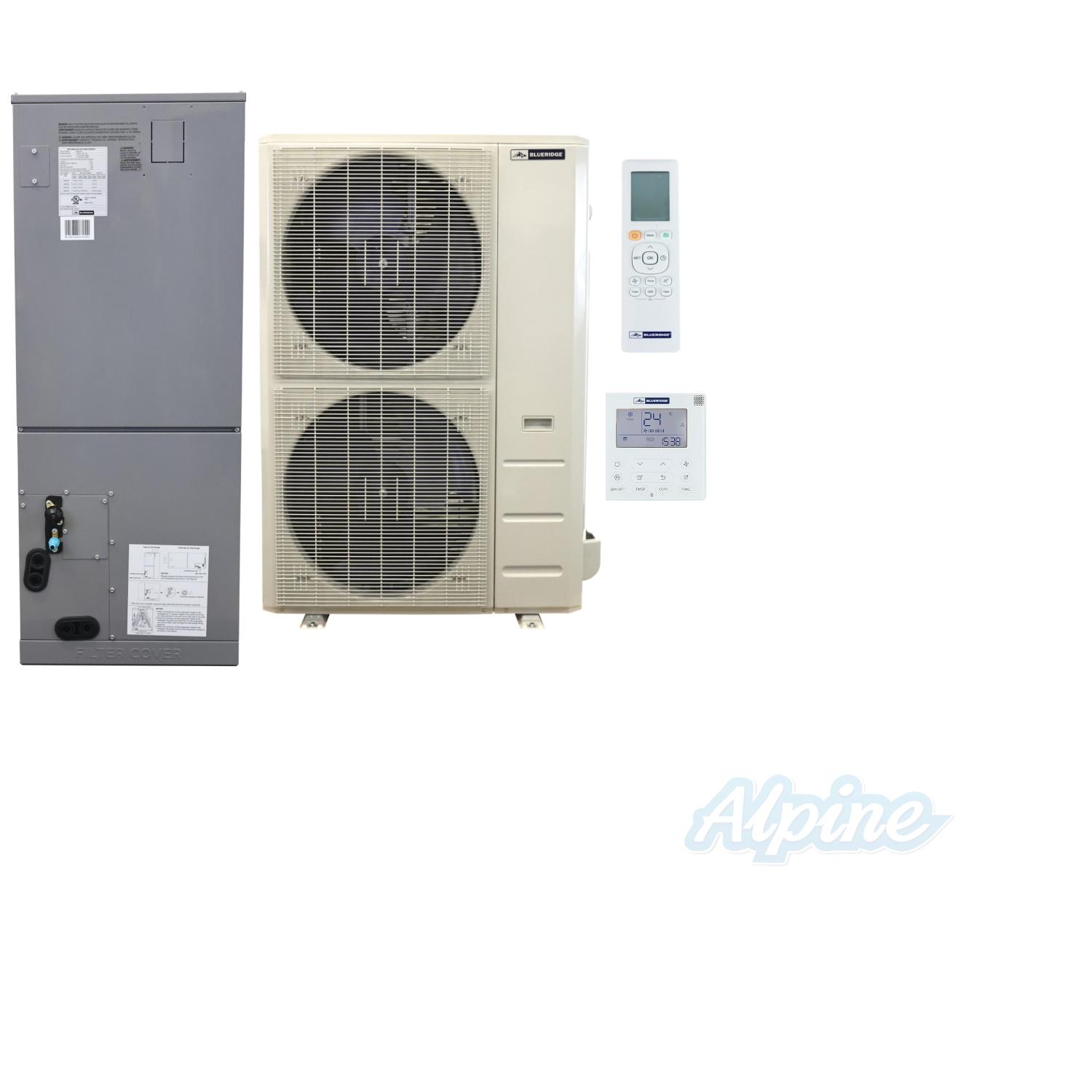

60,000 BTU 16 SEER Ultra Efficient Ducted Heat Pump/Air Handler System

60,000 BTU 16 SEER Ultra Efficient Ducted Heat Pump/Air Handler System

Model: Blueridge BMAH6016

Actual product may vary from photos.

Model: Blueridge BMAH6016

Provides heating and cooling

Whisper quiet indoors and outdoors

Sips electricity for low utility costs

Simple installation + friendly tech support available

$4,56900

Or as low as

Volume Discounts
Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

The Blueridge 60,000 BTU 16 SEER Ultra Efficient Ducted Heat Pump/Air Handler System is a high performing, versatile, and simple heating and cooling products available from the industry today. This is a heat pump that can cool better than most air conditioners, heat better than virtually any other heat pump, compete with traditional furnaces in cold weather, and reduce energy consumption thanks to its sophisticated internal controls. It even comes with new technology that makes HVAC installation faster and simpler than a traditional heat pump.

These models are designed to run consistently at low output levels to maintain optimal temperatures in your space but can ramp up their output as needed. This type of operation also enhances airflow through your structure, greatly improves efficiency, optimizes air filtration (especially if paired with a media or electronic air cleaner), and does a better job dehumidifying when in cooling mode than nearly any other type of cooling system.

When the system is on, even if there isn't a call for heating or cooling, the fan will continuously run at a low level to to mix the air and sense the conditions in your space. It then communicates that information with the outdoor unit. This communication allows the system to adjust its output as needed which optimizes the efficiency and comfort delivered!





System Features


Inverter Compressor
Designed to run only as hard as needed to maintain optimal temperatures in your space while minimizing electrical consumption.

Variable Speed Blower
Provides even air distribution throughout your home to optimize comfort.

Energy Efficient
Experience the right airflow volume in each space with a unit that automatically adjusts based on the ducting length.

Quiet Operation
Create more peaceful, comfortable spaces with ultra-quiet operation that reduces noise pollution.

Low Temperature Heating
Heat pump designed to operate at outdoor temperatures as low as -22 ºF, out performing most convential systems.

Easy & Flexible Installation
Install the unit vertically or horizontally for multi-directional air flow possibilities and increased flexibility.

Wifi enabled, programmable wall controller

Third-Party Thermostat Compatibility

Experience seamless integration — without extra kits — with a built-in 24V interface that’s compatible with third-party thermostats.


This System Includes*




Blueridge BMAH6016C x1
60,000 BTU 16 SEER Hyper Heat Inverter Outdoor Condenser





Blueridge BMAH6016I x1
60,000 BTU 16 SEER  Air Handler Unit






Blueridge 17317000A63536 x1
Remote controller





Blueridge 17317100006495 x1
Wired controller





Specs
System Information
view information
Zones
1
System Type
Heat Pump and Air Handler
view information
Configuration
Downflow / Horizontal / Upflow
view information
Factory Precharge
25 Feet
view information
Fuel Type
Electricity
view information
Indoor Air Handler Type(s)
24 V AHU
view information
Refrigerant
R-410A
Features
view information
WIFI (2.4GHz)
Yes (Built In)
Efficiency
view information
Coefficient of Performance (at 47 F)
3.5 COP
view information
Coefficient of Performance at 5° F
1.9
view information
Energy Efficiency Ratio
9.0 EER
view information
Energy Efficiency Ratio 2
8.8 EER2
view information
SEER
16.4 SEER
view information
SEER2
15.3 SEER2
view information
Heating Seasonal Performance Factor
10.5 HSPF
view information
Heating Seasonal Performance Factor 2
9.4 HSPF2
Performance
view information
Ambient Temperature Range (Cooling)
122 / 5 °F
view information
Ambient Temperature Range (Heating)
-22 / 75 °F
view information
Low Ambient Cooling
Yes
view information
Base Heating Capacity
59000 BTU
view information
Total Cooling Capacity
5 Ton(s)
view information
Maximum Heating Capacity
69000 BTU
view information
Base Cooling Capacity
55000 BTU
view information
Lowest Ambient Temperature (Heating)
-22 °F
view information
Maximum Cooling Capacity
56000 BTU
view information
Electric Heat Capabilities (Optional)
10 / 15 / 20 / 25 Kilowatts
view information
Compressor Type
Inverter
view information
Sound Rating, Indoor
41.5 / 45.5 / 51 Decibels
view information
Sound Rating, Outdoor
63.5 Decibels
Electrical Information
view information
Frequency
60 Hz
view information
Voltage Phase
1
view information
Minimum Ampacity
42 Amps
view information
Maximum Fuse/Breaker
60 Amps
view information
Maximum Overcurrent Protection (Breaker)
60 Amps
Air Handler Breaker Size
15 Amps
view information
Voltage
208 - 230 Volts
Line Set Information
view information
Maximum Line Length per Zone
213 Feet
view information
Maximum Height Difference
98 Feet
view information
Liquid Line Size (OD)
3/8 Inches
view information
Suction Line Size (OD)
7/8 Inches
Product Dimensions
view information
Cabinet/Chassis Size
D
view information
Indoor Air Handler Size, W x H x D
24.5 x 52.99 x 21 Inches
view information
Pad Size
24x36 Inches
view information
Outdoor Condenser Size, W x H x D
37.48 x 52.48 x 16.34 Inches
Indoor Air Handler Weight
162.70 Lbs
Outdoor Condenser Weight
239.86 Lbs
view information
Footprint Mounting Holes (W x D)
25 x 15.9 Inches
Important Measurements
view information
Supply Air Opening Size
22.875 w x 10.25 d Inches
view information
Return Air Opening Size
22.875 w x 18.375 d inches
Warranty
view information
Compressor Warranty
7 Years
view information
Parts Warranty
5 Years
Certifications
view information
AHRI#
210025757
view information
Qualifies for Govt. Money
No
view information
Approved for US Region(s)
North / Southeast / Southwest
view information
ENERGY STAR® Certified
No
