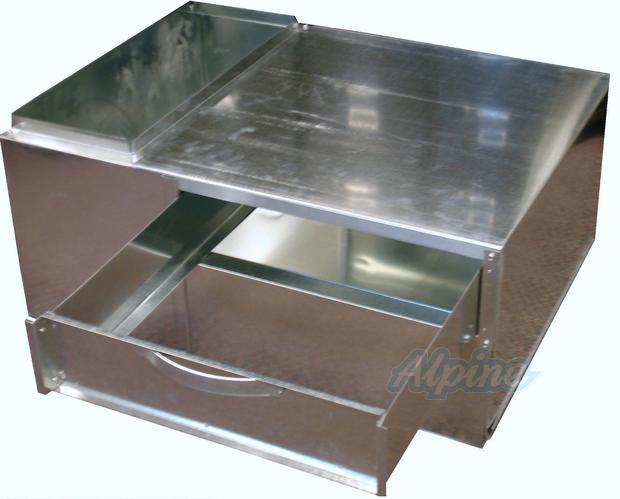

36 Inch Wide Return Air Support Box With Filter Slot
36 Inch Wide Return Air Support Box With Filter Slot
Model: Alpine SBFD36
Actual product may vary from photos.
Model: Alpine SBFD36
$34999
ย
Or as low as
Volume Discounts
Qty:
Express Pay Available
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Includes
highlights
This reversible left or right hand return air support box is for use with systems where the return air must come in underneath the furnace or air handler. The support box can hold a furnace or air handler up to 26 inches wide. The support box features an interior support bracket for maximum strength, and a 20 by 25 inch filter slot that can accommodate a one, four, or five inch thick media filter. The filter rack can be positioned on either the front or the back of the unit. This gives you the flexibility of having your return plenum on either the right or left hand side (simply swap the cover plate and the drawer). This kit does not include a filter.
Specs
System Information
Use Media Filters of Thickness
1 / 4 / 5 inches
Product Dimensions
Height
15 Inches
Filter Size
20 x 25 Inches
Duct Size
10 x 25 inches
Important Measurements
Weight Capacity
200 lbs
Sheet Metal Gauge
24
Support Box Dimensions
36W x 28D x 15H inches
Max Furnace or Air Handler Width
26 inches
