100,000 BTU Furnace, 92% Efficiency, Single-Stage Burner, 1600 CFM Multi-Speed Blower, Upflow/Horizontal Flow Application

100,000 BTU Furnace, 92% Efficiency, Single-Stage Burner, 1600 CFM Multi-Speed Blower, Upflow/Horizontal Flow Application

New Item!

Model: Goodman GR9S921004CN

highlights
view information

This is a Horizontal / Upflow unit.

view information

To use LP fuel, this unit requires an LP Conversion Kit. See Accessories

The Goodman® GR9S92 series of high-efficiency, single stage furnaces for R-32 or R-410A refrigerant systems are multi-position, making them the perfect choice whether you are installing in a basement, closet, alcove, or attic. The patented heavy-duty aluminized-steel tubular heat exchanger and durable silicon nitride ignition system combined with the heavy-gauge, reinforced, insulated steel cabinet and durable baked enamel finish ensure years of trouble-free performance. Manufactured by Goodman, you get one of the best warranties in the industry, all at an unbeatable price.

Important Safety Notice



Standard Features:

  • Operates as a natural gas furnace out of the box, and can be easily converted to a propane furnace with optional propane conversion kit (see Accessories tab).
  • Heavy-duty aluminized-steel tubular heat exchanger
  • Single-stage gas valve
  • Durable silicon nitride igniter
  • Quiet, single-speed draft induced blower

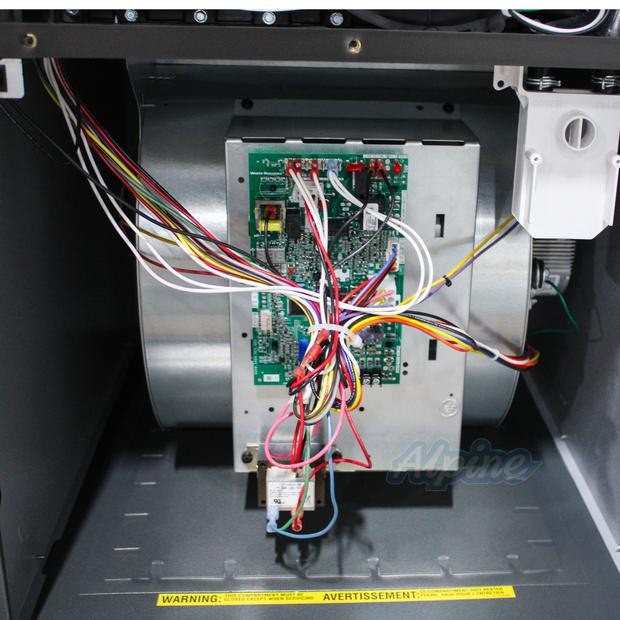

  • Self-diagnostic control board
  • Multi-speed ECM blower motor with 4 speed settings for heat and 9 speed settings for cooling



Please Note: This furnace is California approved but does not comply with California's South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD) requirements (the Goodman furnace models that end in "U" do comply). This furnace is not for sale to the South Coast or San Joaquin Valley regions due to emissions laws. Please see available ultra high-efficiency Goodman furnaces which are compliant with all California laws for applications within those regions.



Cabinet Features:

  • Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
  • Easy to install top venting with optional side venting
  • Convenient left or right connection for gas and electrical service
  • Cabinet air leakage (QLeak) less than 2%
  • Heavy-gauge steel cabinet with durable baked-enamel finish
  • Foil faced insulated heat exchanger
  • Airtight solid bottom or side return with easy cut tabs for effortless removal in bottom air-inlet applications



Outstanding Warranty Protection

This furnace is covered by what we believe to be one of the best warranties in the indoor home comfort industry. In addition to covering the heat exchanger with a Lifetime Limited Warranty to the original, registered homeowner, this furnace also has a 10-Year Limited Parts Warranty on all functional parts. For a full description of all warranties applicable to this product, please review the consumer brochure or product warranty in the Documents section.



Specs
System Information
Base Altitude Range
0-7000 ft.
Configuration
Horizontal / Upflow
Fuel Type
LP Capable (Kit Required) / Natural Gas
Refrigerant Compatibility
R-32 / R-410A
Efficiency
Efficiency (% AFUE)
92 %
Performance
Maximum Input BTU
100000 BTU
Maximum Heating Capacity
92100 BTU
Maximum CFM
1680 @ 0.5
Blower Cooling Capacity
2.5 / 3 / 3.5 / 4 Tons
Blower Type
High Efficiency Multi-Speed
Burner Stages
Single
Electrical Information
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
13.7 Amps
Maximum Overcurrent Protection (Breaker)
20 Amps
Voltage
115 Volts
Product Dimensions
Width
21 Inches
Depth
28 3/4 Inches
Height
34 1/2 Inches
Cabinet/Chassis Size
C
Product Weight
141 lbs
Shipping Weight
141 lbs
Important Measurements
Vent Connection
2 Inches
Supply Air Opening Size
19.5 x 19.5 Inches
Return Air Opening Size
Side 15 x 23 inches
Flue Pipe Diameter
2 or 3
Warranty
Heat Exchanger Warranty
Lifetime w/ online registration
Parts Warranty
With Online Registration 10 Years
Certifications
California Only
No
California Approved Furnace
Yes
Ultra-Low NOx
No
Qualifies for Govt. Money
No
Emission Standard
Low NOx
ENERGY STAR® Certified
No
