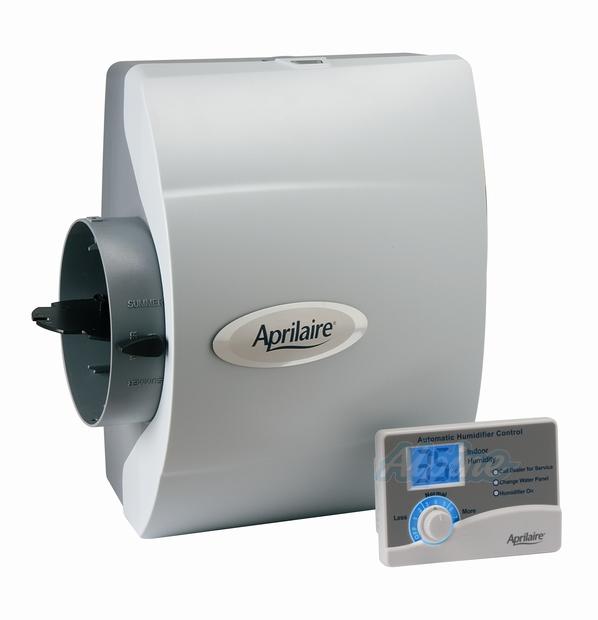

24V Bypass Humidifier with Automatic Digital Control and Humidity Readout

24V Bypass Humidifier with Automatic Digital Control and Humidity Readout

Model: Aprilaire 600

Actual product may vary from photos.

Model: Aprilaire 600

$29999
Or as low as

Volume Discounts
Qty:

Only 4 left in stock

Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Services
highlights

The Aprilaire Automatic Humidifier Model 600 is the newest addition to the aprilaire humidifier line. It takes humidifier innovation to the next level and performs as good as it looks! It offers all of the performance benefits of Aprilaire's more advanced humidifiers including Automatic Digital Control which automatically adjusts humidity based on outside temperature. The Aprilaire 600 is easier than ever to install because it includes a built-in bypass damper, which means fewer parts to install. Plus, the damper is conveniently labeled for summer and winter settings, allowing you to set it for the entire season with no guesswork involved. This humidifier can be installed on the supply or return air ductwork. It is also left or right side reversible. Includes automatic digital control humidistat, sensing bulb, water pad, 110v to 24v transformer and manufacturer's special instructional DVD.

Automatic Digital Control Features

  • Shows that the humidifier is operating
  • Allows you to check relative humidity level
  • Tells you when it's time to change the water panel
  • Gives you service alerts

Other items needed for the installation that are not included: 1/4" copper tubing for water line, 1/2" ID plastic tubing for drain, 6" round ducting and elbow for bypass air, 2-conductor 18 to 22 gauge wire. These items are available in our easy installation kit.



Specs
System Information
view information
Humidifier Type
Bypass
Features
view information
Remote Sensing Bulb
Included
Performance
view information
Maximum Coverage Area
4000 Square Feet
view information
Water Capacity (GPD)
17.0 Gallons/Day
Water Feed Rate
3 Gallons/Hour
Evap. Capacity
.70 Gallons/Hour
Electrical Information
view information
Humidifier Electrical Requirements
24 Volts
Product Dimensions
view information
Width
15 19/50 Inches
view information
Height
15 3/4 Inches
Important Measurements
Bypass Duct Diameter
6 inches
Plenum Opening Size
10W x 12.75H inches
Warranty
Limited Warranty
5 Years
