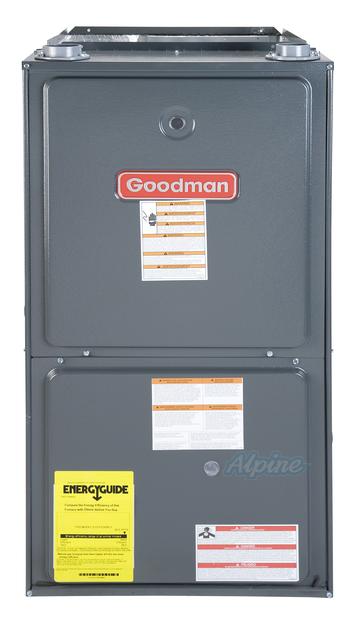

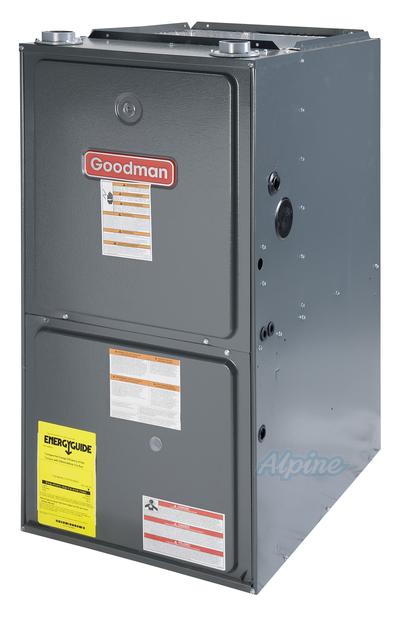

46,000 BTU Furnace, 95% Efficiency, 2-Stage Burner, 1,200 CFM Multi-Speed Blower, Upflow/Horizontal Flow Application

46,000 BTU Furnace, 95% Efficiency, 2-Stage Burner, 1,200 CFM Multi-Speed Blower, Upflow/Horizontal Flow Application

Model: Goodman GMH950453BX

highlights
view information

This is a Horizontal / Upflow unit.

view information

To use LP fuel, this unit requires an LP Conversion Kit. See Accessories

This listing is for an Amana AMH95 95% AFUE two-stage (convertible), multi-speed, multi-position gas furnace. It features a patented aluminized-steel tubular heat exchanger and durable Silicon Nitride Hot Surface Ignition system. This furnace is run-tested for heating or combination heating/cooling applications. (Please read this Important Safety Notice)

Standard Features

  • Operates as a natural gas furnace out of the box, and can be easily converted to a propane furnace with optional propane conversion kit (see Accessories tab).

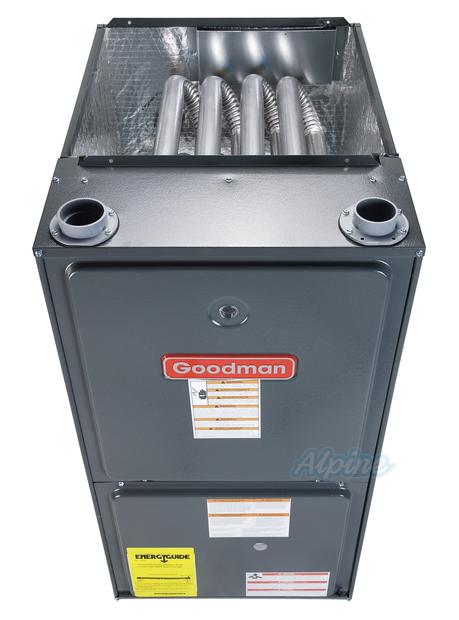

  • Patented TuffTube™ dual-diameter tubular furnace heat exchanger with lifetime limited warranty plus 10-year furnace replacement limited warranty (with online registration)

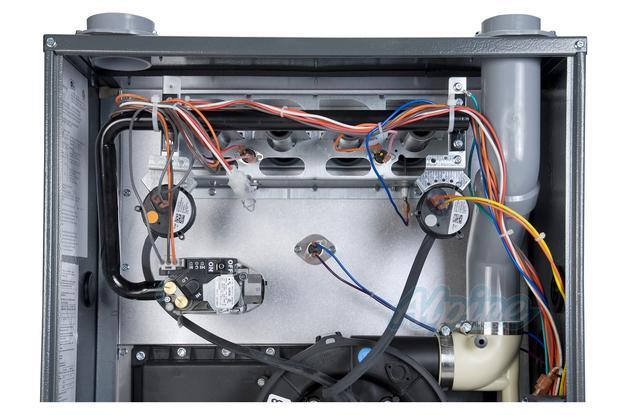

  • Two-stage furnace gas valve with revolutionary new Dual$aver control technology. Two-stage thermostat not required, operates with standard single-stage thermostat and standard thermostat wiring.
  • Silicon Nitride igniter with patented adaptive learning routine for maximum igniter life

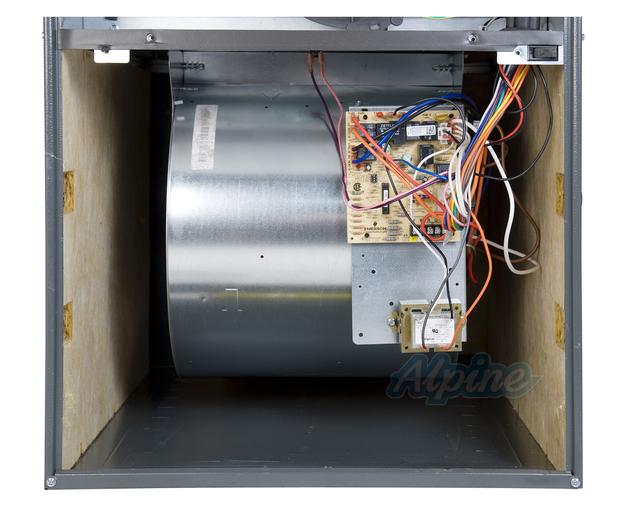

  • Energy-saving, quiet four-speed direct-drive circulator blower motor

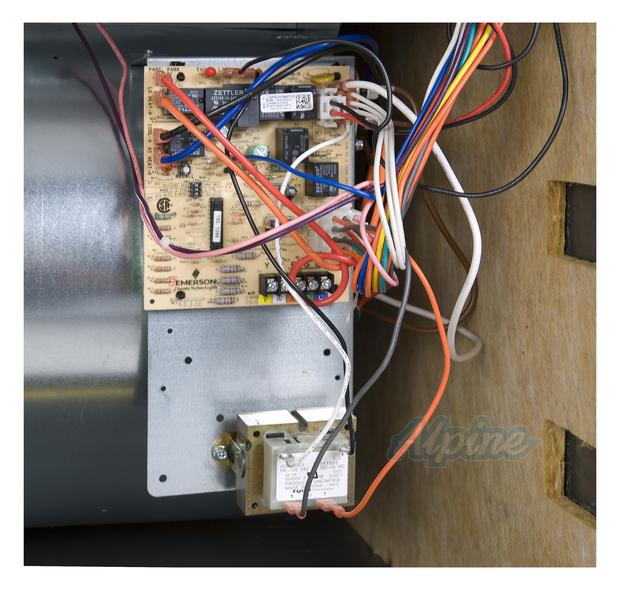

  • Integrated electronic Goodman furnace control board with self-diagnostics, low-voltage terminal block, and separate terminals for electronic air cleaner and 24-volt humidifiers
  • Heater's control board stores the last five diagnostic codes in memory; simple push-button activation outputs the fault history to a flashing red LED
  • Low constant fan mode allows the homeowner to activate the lowest available heating speed to circulate air quietly and efficiently throughout the home during the off cycle
  • Self-adjusting feature automatically adjusts furnace to high or low stage based on outside temperature without outdoor temperature sensor
  • Dual-certified for sealed combustion direct vent (2-pipe) or non-direct vent (1-pipe) applications. The direct vent furnace setup uses outside air for combustion which increases comfort and furnace energy efficiency.
  • Easy-to-install top venting standard; alternate flue/vent located on the right (GMH95)

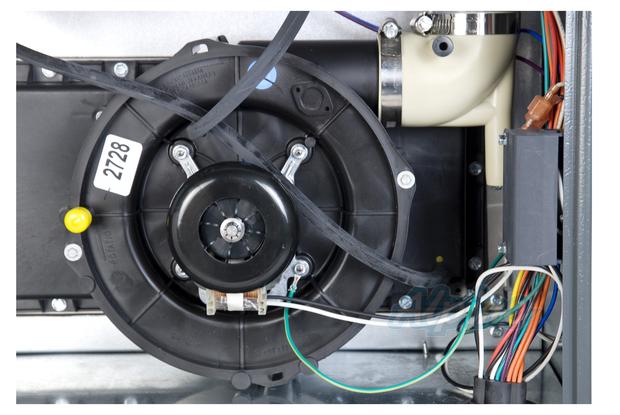

  • Quiet, single-speed induced-draft blower
  • All of these Goodman furnace models comply with California NOx emissions standards


Cabinet Features

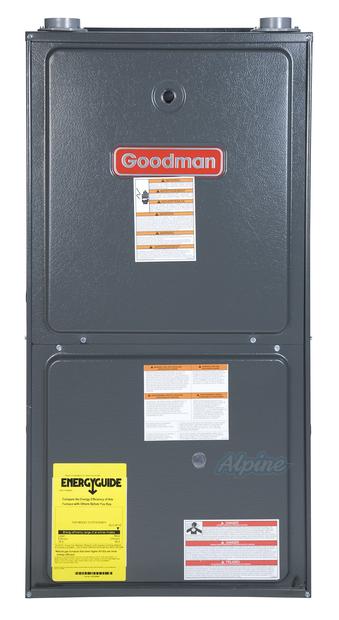

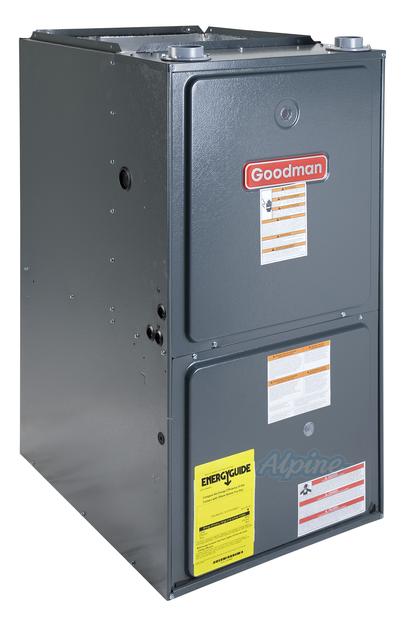

  • Fully insulated, heavy-gauge steel furnace cabinet with durable baked-enamel finish
  • Furnaces' Foil-faced insulation lines the heat exchanger compartment
  • Designed for multi-position installation: Goodman GMH95: upflow, horizontal left or right; Goodman GCH9: downflow, horizontal left or right
  • Airtight solid bottom for side-return applications and easy-cut tabs for effortless removal in bottom air-inlet applications
  • Convenient left or right connection for furnaces' gas and electric service
  • Coil and furnace fit flush for most installations



Outstanding Warranty Protection

This furnace is covered by what we believe to be one of the best warranties in the indoor home comfort industry. In addition to covering the heat exchanger with a Lifetime Limited Warranty to the original, registered homeowner, if the heat exchanger fails during the first 10 years of ownership, we will replace the entire unit for as long as you own your home. This furnace also has a 10-Year Limited Parts Warranty on all functional parts. For a full description of all warranties applicable to this product, please review the consumer brochure or product warranty in the Documents section.

Specs
System Information
view information
Configuration
Horizontal / Upflow
view information
Fuel Type
LP Capable (Kit Required) / Natural Gas
Efficiency
view information
Efficiency (% AFUE)
95 %
Performance
view information
Maximum Input BTU
46000 BTU
view information
Maximum Heating Capacity
44200 BTU
view information
Minimum Input BTU
34500 BTU
view information
Minimum Output BTU
33150 BTU
view information
Maximum CFM
1200 @ 0.5
view information
Blower Cooling Capacity
1.5 / 2 / 2.5 / 3 Tons
view information
Blower Type
Multi-Speed
view information
Burner Stages
Two
Electrical Information
view information
Frequency
60 Hz
view information
Voltage Phase
1
view information
Maximum Overcurrent Protection (Breaker)
15 Amps
view information
Voltage
115 Volts
Product Dimensions
view information
Width
17 1/2 Inches
view information
Depth
28 Inches
view information
Height
40 Inches
Product Weight
132 lbs
Shipping Weight
132 lbs
Important Measurements
view information
Vent Connection
2 Inches
view information
Supply Air Opening Size
16 x 19.875 Inches
view information
Flue Pipe Diameter
2
Warranty
view information
Heat Exchanger Warranty
Lifetime
view information
Unit Replacement Warranty
10 Years
view information
Parts Warranty
10 Years
Certifications
view information
California Approved Furnace
Yes
view information
Ultra-Low NOx
No
view information
Qualifies for Govt. Money
No
view information
ENERGY STAR® Certified
No
Accessories
