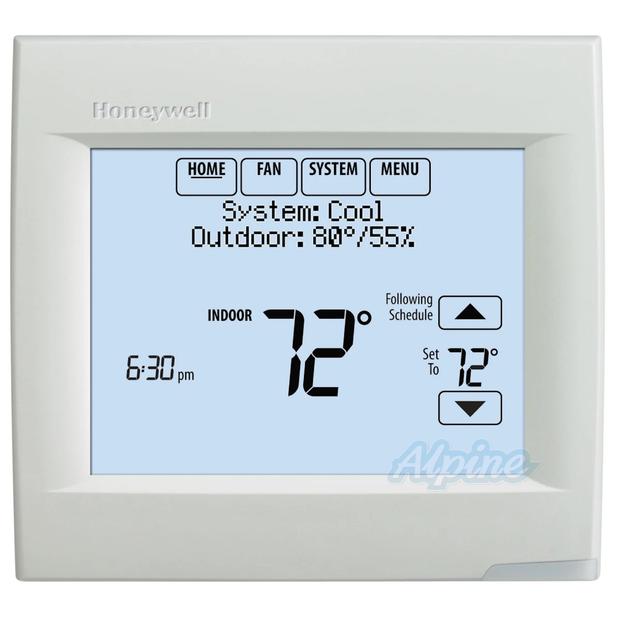

VisionPRO 8000 Programmable Touchscreen Thermostat, Three Stage Heat Two Stage Cool
VisionPRO 8000 Programmable Touchscreen Thermostat, Three Stage Heat Two Stage Cool
Model: Honeywell TH8320R1003
Actual product may vary from photos.
Model: Honeywell TH8320R1003
$24999
Or as low as
Volume Discounts
Qty:
Only 4 left in stock
Express Pay Available
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Includes
highlights
VisionPRO® 8000 with RedLINK™ is a 7 day programmable touchscreen thermostat that is selectable for residential or light commercial use. The thermostat can be wired directly to the equipment, used with the THM5421R1021 Equipment Interface Module or used with the THM4000R1000 TrueZONE Wireless Adapter. Works with the RedLINK™ accessories including the RedLINK™ Internet Gateway, Portable Comfort Control, Wireless Outdoor Sensor, Wireless Indoor Sensor, Wireless Entry/Exit Remote and Wireless Vent and Filter Boost Remote.
Features
- Smart Schedule - programs in seconds for any lifestyle
- Patented interview based programming and installer setup
- RedLINK™ wireless communication
- Selectable for residential and light commercial applications. Meets commercial code and is title 24 compliant
- Alerts and User Interactions Log - Keeps a searchable history of alerts and setting changes to the thermostat to determine if there is a system malfunction or if the issue was caused by a user error
- Dual powered - battery or hardwired (C wire)
- Precise temperature control (+/- 1° F) for reliable and consistent temperature
- Thermostat works standalone or with the THM5421R1021 Equipment Interface Module or with the TrueZONE Wireless Adapter
Specs
System Information
Application
Heating or Cooling Systems
Manual/Digital
Digital
Use with Gas/Oil
Yes
Use with Electric Furnace
Yes
Outdoor Temperature Sensor Capability
Yes
Indoor Temperature Sensing Capability
Yes
Color
Arctic White
Product Type
Digital Thermostat
Programming Days
7
Use with Heat Pump
Yes
Dual-Fuel Compatible
Yes
IAQ Control
0
Features
Touchscreen
Yes
Programmable Fan
Yes
Resume / Adaptive Intelligent Recovery Capability
Yes
Backlit Display
Yes
On-Screen Help
Yes
Auto Changeover
Yes
Memory Back-Up
Yes
Filter Indication
Yes
Humidity Control
No
Vacation Hold
Yes
Keypad Lockout
Yes
WIFI Capable
Yes With RedLINK Gateway
Performance
Stages of Heat
3 w/ Heat Pump
Stages of Cool
2
Electrical Information
Ventilation Control/Independent Circuit Switching
No
Humidifier Panel Indication
No
Power Method
Hardwired
Product Dimensions
Width
4 15/16 Inches
Depth
1 1/8 Inches
Height
4 5/8 Inches
Warranty
Limited Warranty
5 Years
Certifications
ENERGY STAR® Certified
No
Accessories
AC Installation Supplies
Alpine Home Air Products CW8/50
50 Feet of 8 Conductor, 18 Gauge Thermostat Wire
$2999
Sensors
Honeywell C7089R1013
Wireless Outdoor Temperature Sensor
$8999
Honeywell C7189R1004
Wireless Indoor Air Sensor
$6499
Thermostat Modules
Honeywell REM1000R1003
Wireless Entry/Exit Remote for Honeywell RedLINK™ Enabled Systems
$5499
Honeywell THM6000R7001
RedLINK to Internet Gateway and Ethernet Cable and Power Cable
$9999
Documents
- VisionPRO 8000 Commercial Brochure 2013(PDF, 1021 KB)
- VisionPRO 8000 Installation Guide 2016(PDF, 3.45 MB)
- VisionPRO 8000 Residential Brochure 2013(PDF, 1.66 MB)
- VisionPRO 8000 Spec Sheet 2017(PDF, 7.67 MB)
- VisionPRO 8000 User Guide 2012(PDF, 20.3 MB)
