92,000/64,000 BTU Furnace, 93% Efficiency, 2-Stage Burner, 2,000 CFM Variable Speed Blower, Horizontal / Downflow Application
92,000/64,000 BTU Furnace, 93% Efficiency, 2-Stage Burner, 2,000 CFM Variable Speed Blower, Horizontal / Downflow Application

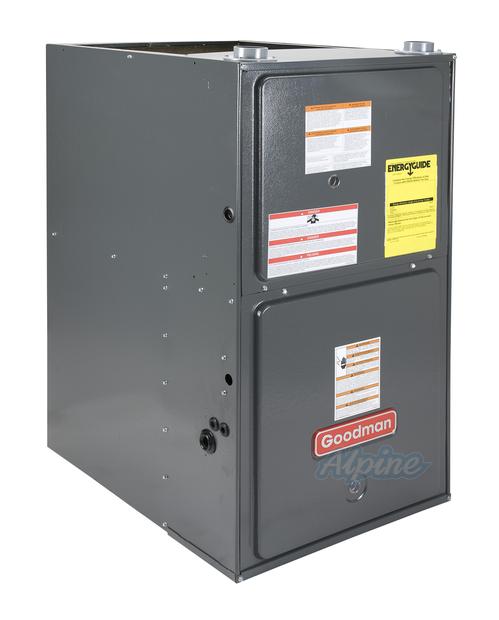

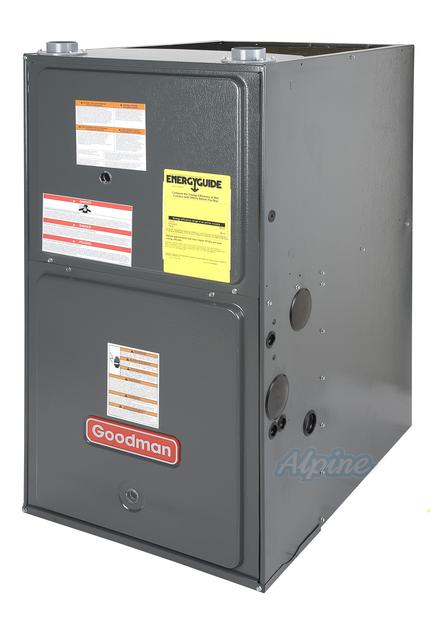

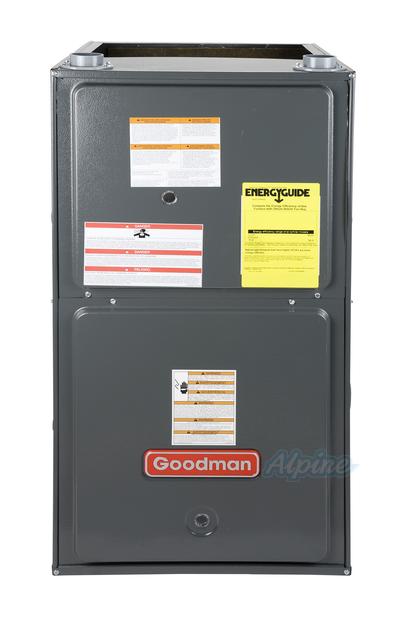

Model: Goodman GCV90905DX
This is a Downflow / Horizontal unit. Learn about Downflow / Horizontal
To use LP fuel, this unit requires an LP Conversion Kit. See Accessories
The Goodman GMV9/GCV9 multi-position condensing gas furnace with two-stage heating and variable-speed circulating blower reduces operating costs and advances home comfort by eliminating temperature swings and stratification from floor-to-ceiling and room-to-room. The Goodman GMV9/GCV9 variable-capacity furnace smoothly ramps up or down – based on the demands of the home – to keep temperature consistent at all times. The Goodman GMV9/GCV9 multi-position, variable-speed gas furnace features a patented aluminized steel tubular heat exchanger and energy-efficient hot surface ignition system. These furnaces are run-tested for heating or combination heating/cooling applications. With a corrosion-resistant, painted steel cabinet, these heaters can be installed in a utility room, closet, alcove, basement or attic. (Not intended for use in mobile homes.) (Please read this Important Safety Notice)
Standard Features
- Operates as a natural gas furnace out of the box, and can be easily converted to a propane furnace with optional propane conversion kit (see Accessories tab).
- Corrosion-resistant, aluminized-steel tubular furnace heat exchanger and stainless-steel recuperative coil for maximum efficiency
- Designed for multi-position installation— Goodman GMV9: upflow, horizontal right or left; Goodman GCV9: downflow, horizontal right or left
- ENERGY STAR Furnace Rating. Energy-saving, reliable hot surface ignition system with patented adaptive learning algorithm to maximize igniter life
- Furnaces' Auto-Comfort mode helps to efficiently create and maintain a comfortable climate by intuitively adjusting to the room’s environment
- Aluminized-steel inshot furnace burners
- 2-stage gas valve and super-efficient, quiet variable-speed furnace blower motor
- Quiet, 2-speed induced draft blower assembly
- Integrated Goodman furnace control with improved diagnostics
- Low voltage terminal blocks
- Multiple flame roll-out switches, blower door safety switch, outlet air-limit switch and pressure switch for proof of combustion air
- 40VA transformer for heating and air conditioning control service
- Combination redundant furnace 2-stage gas valve and regulator
- Top venting is standard; alternate flue/vent located on right side
- Completely assembled, factory run-tested furnace for heating or combination heating/cooling application
- All of these Goodman furnace models comply with California NOx Standards
- Suitable for direct vent (2-pipe) or non-direct vent (1-pipe) applications. The direct vent furnace setup uses outside air for combustion which increases comfort and furnace energy efficiency.
- Heavy-gauge, reinforced, fully insulated steel cabinet with durable baked-enamel finish
- Attractive architectural gray paint finish
- Furnaces' foil-face insulation-lined heat exchanger compartment
- Heaters' coil and furnace fit flush for easy installation
- Convenient left or right connection for gas and electric service
- Bottom or side air inlet (Goodman GMV9)
- Removable, solid-bottom block-off (Goodman GMV9)
