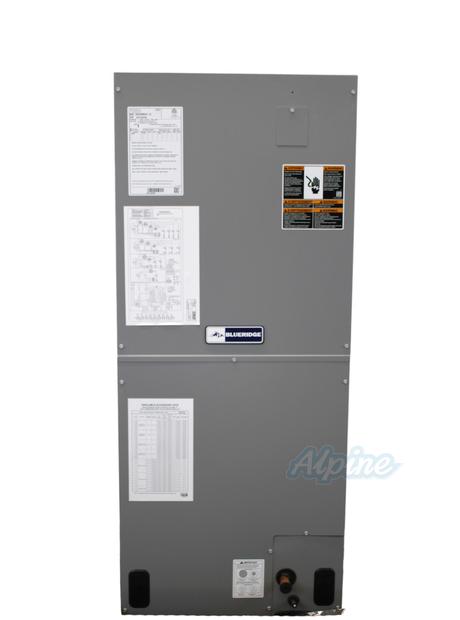

3 Ton Multi-Positional Variable Speed Air Handler
3 Ton Multi-Positional Variable Speed Air Handler

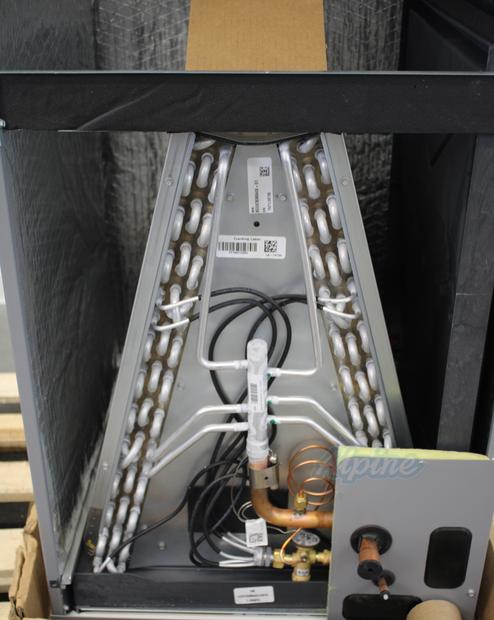

Model: Blueridge BE5V36MA4X (Item No. 717141)
Sale
Actual product may vary from photos.
Model: Blueridge BE5V36MA4X (Item No. 717141)
Easy access points for maintenance
Sturdy design for long term durability
Simple installation + friendly tech support
Peace of mind with 10 year warranty (with registration)
Now $1,28000
Was: $1,350.00
Savings: $70.00
Or as low as
Qty:
Express Pay Available
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Services
- Pro Installation (Learn More)
highlights

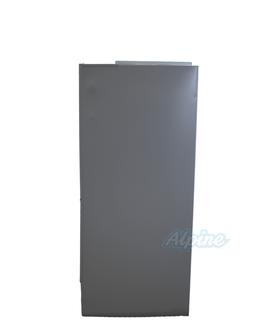

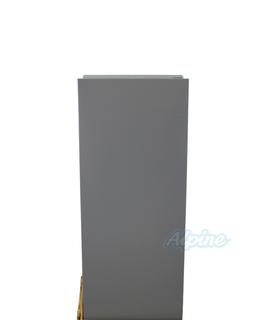

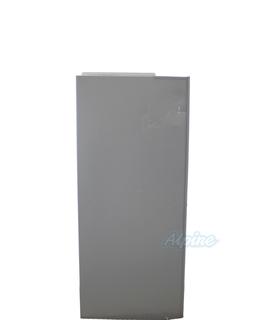

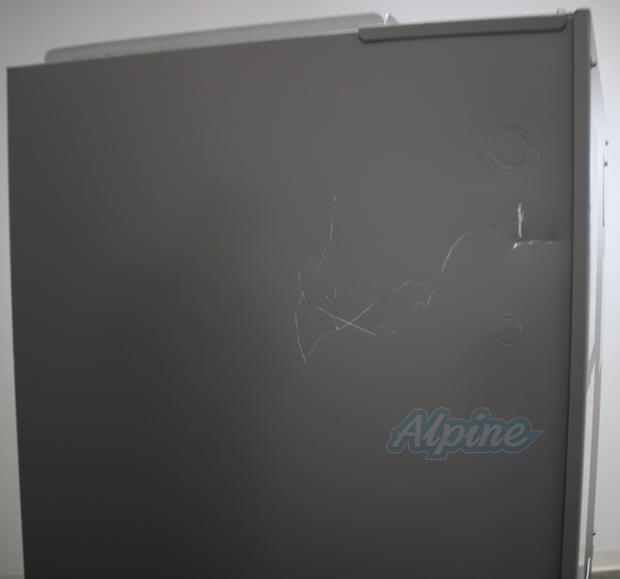

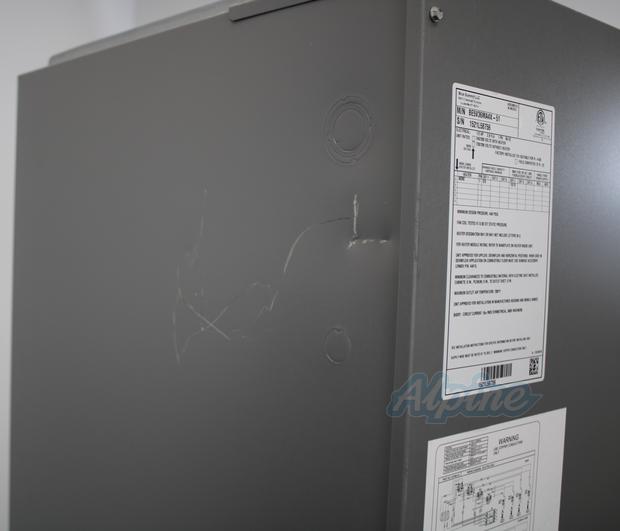

This Blueridge BE5V36MA4X 3 Ton Multi-Positional Variable Speed Air Handler has some cosmetic damage incurred during shipping. Cosmetic damage to left side top dents and scratches. For detailed photos please click 'See Additional Images' above. This Blueridge BE5V36MA4X 3 Ton Multi-Positional Variable Speed Air Handler meets the full manufacturer's specifications, comes with the full manufacturer's warranty, and includes Alpine's premium guarantee.
For product specs and photographs of product in its original condition, click here.

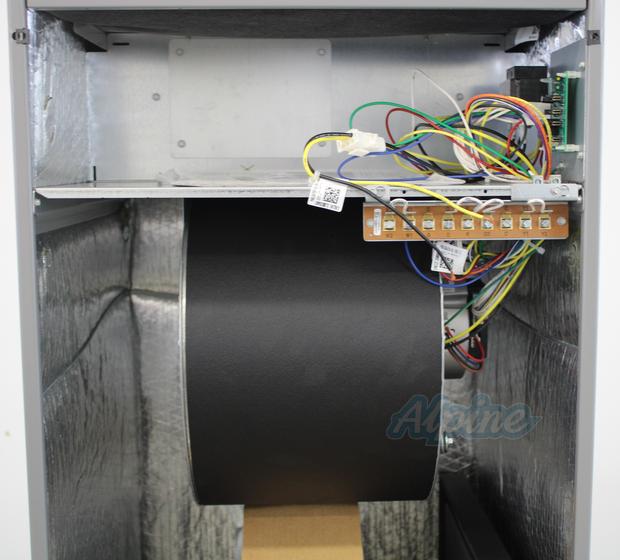

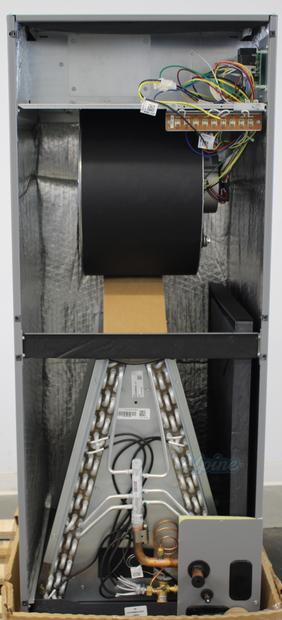

Blueridge air handlers are the indoor portion of a split-system air conditioning orheat pump system (if you don't have a furnace). Pair this air handler with an outdoor ACcondenser to complete your cooling system, or with a heat pump for efficient heating andcooling. Add an optional backup electric heat strip to ensure optimal heat, no matter theoutside temperature. The Blueridge BE5V series has a variable speed motor, which featuresa ramped start and stop profile for the quietest performance, and the widest range ofavailable speeds which means additional comfort and savings.
Condenser Series
This Product
BE5C*
BE5E
BE5V
BAH7P
BAH7E
BAH7V
Blower Type
Multi Speed
High-Efficiency Multi Speed
Ultra High-Efficiency Variable Speed
Multi Speed
High-Efficiency Multi Speed
Ultra High-Efficiency Variable Speed
Blower Speed Settings
3 speed settings
5 speed settings
Up to 24 available speeds
3 speed settings
5 speed settings
Up to 24 available speeds
Up-Front Cost VS Energy Cost
Lowest up-front cost
Balance of price and lower bills
Lowest energy costs
Lowest up-front cost
Balance of price and lower bills
Lowest energy costs
SOUND LEVELS
Quiet
Quieter
Quietest
Quiet
Quieter
Quietest
Factory-Installed Expansion Valve (TXV)
Yes
Yes
Yes
Yes
Yes
Yes
*BE5 Series Discontinued - available while supplies last
Reasons You'll Love Your Blueridge Air Handler
Quietest Air Handler You'll Probably Ever Own
Thicker sheet metal and more cabinet insulation than competing brands
Double-hemmed sides and rigid interior bracing stop vibration and air leaks
Model series BE5C shown.
Safety And Reliability Second To None
Factory-installed Thermostatic Expansion Valve (TXV) on all models
Enhanced evaporator coil design for maximum heat transfer
Sleeved, protected distributor tubes stop vibration wear and prevent leaks
Anti-microbial drain pan destroys odor-causing mold and bacteria
Model series BE5C shown.
Designed To Be Easy To Install And Service
Redesigned filter rack positions the filter for better performance and easy changeout
Optional heat kits install easily and quickly
Approved for use in manufactured housing
Model series BE5C shown.
Industry Leading Warranty
10 years with online registration at blueridgewarranty.com
Model series BE5C shown.
Hear What Blueridge Air Handler Owners Are Saying
Specs
System Information
Configuration
Downflow / Horizontal / Upflow
Fuel Type
Electricity
Requires Downflow Kit
Yes
Equipment Type
Air Handler
Refrigerant
R-410A
Performance
CFM (Low/High)
(1150/1530) CFM
Blower Cooling Capacity
3 Tons
Blower Type
Variable Speed
Electric Heat Capabilities (Optional)
10 / 15 / 5 / 7.5 Kilowatts
Blower Motor Horse Power
1/2 HP
Electrical Information
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
4.9 Amps
Maximum Overcurrent Protection (Breaker)
15 Amps
Voltage
208 - 230 Volts
Line Set Information
Liquid Line Size (OD)
3/8 Inches
Suction Line Size (OD)
7/8 Inches
Product Dimensions
Width
21 1/2 Inches
Depth
22 Inches
Height
53 5/8 Inches
Cabinet/Chassis Size
Cd
Product Weight
163 lbs
Shipping Weight
163 lbs
Important Measurements
Supply Air Opening Size
19.5 x 14.5 Inches
Return Air Opening Size
19.25 x 20.375 inches
Drain Connection (I.D.)
0.75 inch
Warranty
Warranty
10 (with online registration) years
Parts Warranty
With Online Registration 10 Years
Accessories
Enjoy free shipping on any accessories purchased with the Blueridge BE5V36MA4X (Item No. 717141).
AC Installation Supplies
Alpine Home Air Products CW8/50
50 Feet of 8 Conductor, 18 Gauge Thermostat Wire
$2999
Alpine Home Air Products KIT017
Supplemental Air Handler/Evaporator Coil Condensate Supplies Package (P-Trap and Float Switch)
$6899
Air Exchangers & Accessories
Honeywell VNT5200H1000
200 CFM TrueFRESH Heat Recovery Ventilation System
$1,39999
Condensation Control
AquaGuard AG-G30X66 (AG-4200)
30" x 66" Secondary Drain Pan with Float Switch
$20000
DiversiTech 6-3060L
31.5" x 61.5" Secondary Drain Pan
$7499
DiversiTech IQP-120T
120 Volt Condensation Pump with Variable Speed Pump and Floatless Sensor, and 20' of Drain Tubing
$10499
Dehumidifiers
Honeywell DR120A3000
TrueDRY 120-Pint Per Day Dehumidifier
$2,49999
Honeywell DR65A3000
TrueDRY 65-Pint Per Day Dehumidifier
$1,79999
Honeywell DR90A3000
90-Pint Per Day Dehumidifier
$2,17999
Downflow Kits
Blueridge Y9659
Blueridge Y9659 Downflow Kit for BCE5C BCE5E BCE5V Air Handlers (3-5 Ton)
$19999
Duct Sealant
DiversiTech 800-008
Pro-Air Duct Sealant - 1/10 Gallon Tube - 10.5 oz.
$999
DiversiTech 800-009
Pro-Air Duct Sealant - 1 Gallon Pail
$4999
Hardcast CCWI-181
Duct Sealant - 1 Gallon (Gray)
$3999
Electronic Air Cleaners (Better)
Honeywell F300E1035
Enviracaire Whole-House Electronic Air Cleaner, 6 3/4 W x 25 1/2 D x 20 3/16H Inch
$94999
Heater Coils
Blueridge ECB25-10CB-P
10 Kilowatt Heater Coil (34,121 BTUs of Heat), For Blueridge BE5(C,E,V) Air Handlers
$15999
Blueridge ECB25-15CB-2P
15 Kilowatt Heater Coil (51,150 BTUs of Heat), For Blueridge BE5(C,E,V) Air Handlers
$21999
Blueridge ECB25-5CB-P
5 Kilowatt Heater Coil (17,060 BTUs of Heat), For Blueridge BE5(C,E,V) Air Handlers
$11999
Blueridge ECB25-7.5CB-P
7.5 Kilowatt Heater Coil (25,591 BTUs of Heat), For Blueridge BE5(C,E,V) Air Handlers
$12999
Media Air Cleaners (Good)
Honeywell F100F2020
Media Air Cleaner, 6 3/4W x 20 1/2D x 20 3/16H Inch, MERV 11
$19999
Return Air Plenums
Alpine SBFD36
36 Inch Wide Return Air Support Box With Filter Slot
$34999
Sheet Metal Transition Kits
Alpine Home Air Products KIT081T
Sheet Metal Transition Kit With Sheet Metal Bender
$9998
Steam Humidifiers
Aprilaire 800
Up to 34.6 GPD, Aprilaire 800 Canister Steam Humidifier with Digital Humidifier Control, 120 / 208 / 240 Volt
$99999
Thermostats
Cielo Smart Thermostat Eco (White)
Cielo Smart Thermostat Eco (White) - Smart Wi-Fi Air Conditioner Controller (Works with Alexa and Google Assistant)
$11999
Cielo Smart Thermostat Eco (Black)
Cielo Smart Thermostat Eco (Black) - Smart Wi-Fi Air Conditioner Controller (Works with Alexa and Google Assistant)
$11999
Honeywell TH6220D1028
FocusPro 6000 Universal Programmable Thermostat - Two Stage Heat Two Stage Cool (Large Display)
$15999
Honeywell TH4210U2002
T4 Pro Programmable Thermostat, With Stages Up To: (2 Heat/1 Cool Heat Pumps - 1 Heat/1 Cool Conventional Systems)
$7999
Honeywell TH6320WF2003
Lyric T6 Pro Wi-Fi Programmable Thermostat with stages up to 3 Heat/2 Cool Heat Pump or 2 Heat/2 Cool (compatible with Alexa and Google Assistant)
$21499
Honeywell YTHX9421R5101WW
Redesigned Prestige IAQ Kit, 4 Stage Heat / 2 Cool, w/HD Touchscreen, Equipment Interface Module and Duct Sensors, White
$45999
Tools
DiversiTech 640-UL25
DiversiTech 640-UL25 Foil Tape
$3499
Ultraviolet Purifiers & Replacement Parts
Honeywell UV100A1059
UV Surface or Air Treatment CoilPlus Irradiation System
$25999
Documents
Blueridge Air Handler Brochure(PDF, 3.89 MB)
- BE5V Spec Sheet(PDF, 676 KB)
- Blueridge BE5V Installation Manual 09-2023(PDF, 4.58 MB)
- Blueridge Unitary Equipment Warranty (Ver. 2.2)(PDF, 551 KB)
