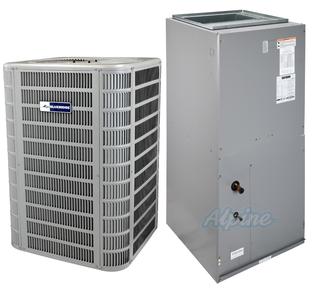

3.5 Ton Heat Pump, 3.5 Ton High Efficiency Multi-Positional Air Handler, 15.5 SEER / 15 SEER2 Split System Kit

3.5 Ton Heat Pump, 3.5 Ton High Efficiency Multi-Positional Air Handler, 15.5 SEER / 15 SEER2 Split System Kit

Model: Blueridge BHP17L42P-BE5E42MA4X (Kit No. D1830)

Actual product may vary from photos.

Model: Blueridge BHP17L42P-BE5E42MA4X (Kit No. D1830)

$3,98000

Or as low as

Volume Discounts
Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

When you consider a Blueridge system, quality and value are a given. You’re getting peace of mind with great features and a smart design—and best of all, you get it right now. When you think about everything Blueridge delivers, your decision is easy. With Blueridge, all your heating and cooling questions are answered. The performance and reliability you want are right here, and ready to go to work.

Blueridge heat pumps are built in North America for an unbeatable combination of quality and price. They provide highly efficient, powerful cooling, during hot weather, and when the weather turns cold, onboard technology reverses the refrigerant cycle to provide heat, and at a fraction of the cost of many alternative heat sources.

This system consists of a heat pump and matching air handler. They are designed to work together and are rated at 15 SEER2 efficiency. Blueridge heat pumps and air handlers are designed with reliability, ease of maintenance and installation in mind.

In most parts of the country you will need to install a heater coil in the air handler for auxilary heating during the coldest times of the year. The matching heater coils, line sets, and other install components are in accessories section below.

We design our system bundles to provide homeowners and contractors with a new HVAC system in one simple purchase. If you'd like help picking out the best option for your needs, give us a call at 1 800 865 5931. Our system design consultants have decades of combined experience helping homeowners select the right equipment. If you have any questions, concerns or just need some guidance, please get in touch with us. We're here to help.

Heat Pump Standard Features:

  • High-efficiency scroll compressor

  • R410A refrigerant

  • Grommet mounted compressor for quiet operation

  • Internally protected against high temperature motor overload conditions

  • Full metal louvered panel with 2 screws to remove for ease of coil cleaning and service

  • Corner-mounted controls for easy service

  • Baked polyester paint finished over galvanized steel for maximum durability

  • External gauge ports for easy service

  • Removable service panel for internal access

  • Omniguard™ total corrosion protection technology designed coil

  • Enhanced tube-and-fin coil design featuring MHT™ Technology

  • Lanced fins for maximum heat transfer

  • Factory tested for leakproof construction 

  • Raised coil prevents debris from impeding airflow

  • Factory installed high and low pressure switches

  • Thread-on pressure switches with Schrader core for simple, quick replacement

  • Factory installed filter drier

  • Fan orifice for smoother airflow and sound level reduction

  • Charged for 15 feet of line set

  • Discharge muffler for quiet operation

  • Quiet Shift™ capable to reduce noise during defrost



Air Handler Features:

  • Efficient Multi-Speed blower motors

  • Standard  transformer and blower relay

  • Field installed 5 - 15kW electric heat kits with easy plug connections

  • Blower time delay for increased efficiency

  • Sleeves on distributor tubing to protect tubes

  • Total corrosion protection coil

  • Enhanced tube-and-fin coil design

  • Lanced fins for maximum heat transfer

  • Factory leak tested and pre-charged with nitrogen holding charge

  • 1 piece design

  • Smaller profile for tight application areas

  • Multi position - Factory ready for upflow, downflow, and horizontal left/right applications



These components were selected by HVAC specialists to maximize their performance and efficiency. This system is certified under AHRI # 210904804 to give you 15 SEER2



Please note that this heat pump comes pre-charged with R-410A liquid refrigerant and by Federal law cannot be released to the atmosphere. You can purchase this equipment without being EPA certified, and if you are mechanically inclined you may perform about 90% of the equipment installation yourself. However we strongly recommend to have a professional heating/cooling contractor do the final part of the installation including managing the refrigerant. An HVAC contractor has the tools and know-how to do this work. Also, having a contractor perform the final startup and inspection of this heat pump validates your warranty with Alpine.



Click the links below to check each components' specifications and documentation.

This system includes:



Blueridge BE5E24MA4X

BE5E42MA4X
  • 3.5 Ton
  • High Efficiency Multi-Speed Blower
  • W 21 1/2 x H 53 5/8 x D 22




Blueridge BHP15L24P

BHP17L42P
  • 3.5 Ton, 15 SEER2 Heat Pump
  • R-410A Refrigerant
  • W 32 1/4 x H 38 x D 32 1/4







WARRANTY
10 year limited warranty with online registration
5 year limited warranty without online registration

Specs
System Information
System Type
Heat Pump and Air Handler
view information
Configuration
Downflow / Horizontal / Upflow
view information
Fuel Type
Electricity
Efficiency
view information
Energy Efficiency Ratio
12.5 EER
view information
Energy Efficiency Ratio 2
12.2 EER2
view information
SEER
15.5 SEER
view information
SEER2
14.9 SEER2
view information
Heating Seasonal Performance Factor
9.2 HSPF
view information
Heating Seasonal Performance Factor 2
7.8 HSPF2
Performance
view information
Base Heating Capacity
38000 BTU
view information
Total Cooling Capacity
3.5 Ton(s)
view information
Base Cooling Capacity
40000 BTU
view information
Blower Type
High Efficiency Multi-Speed
Product Dimensions
view information
Cabinet/Chassis Size
Cd
Warranty
view information
Compressor Warranty
10 Years With Online Registration
view information
Parts Warranty
With Online Registration 10 Years
Certifications
view information
AHRI#
210904804
view information
Qualifies for Govt. Money
No
view information
Approved for US Region(s)
North / Southeast / Southwest
view information
ENERGY STAR® Certified
No
Accessories
