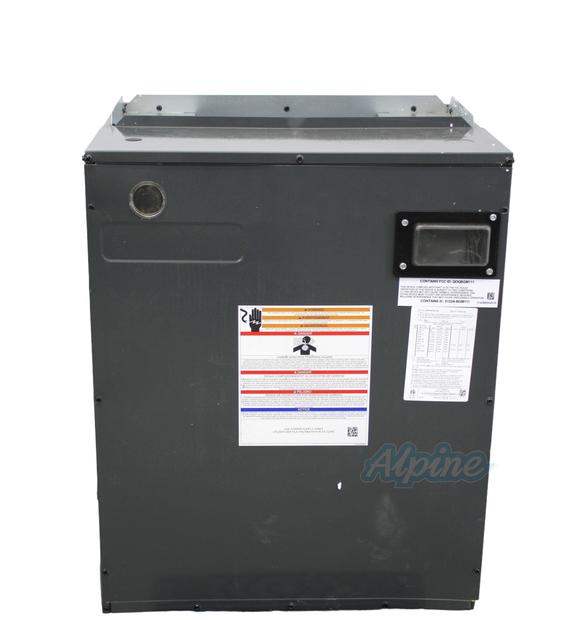

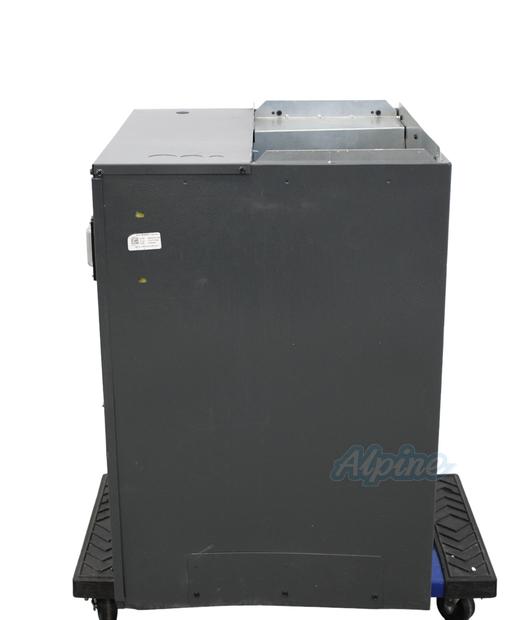

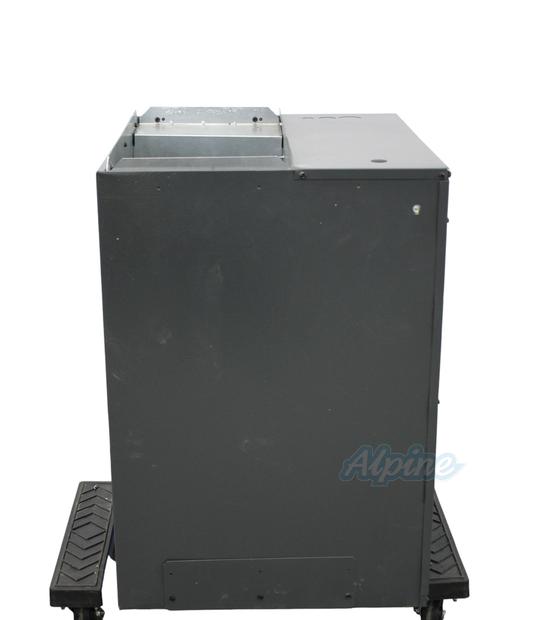

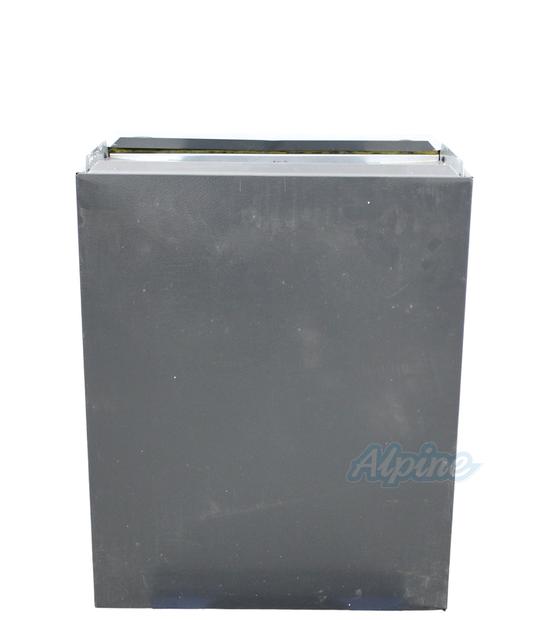

4 to 5 Ton, 24.5" Wide, Variable Speed Modular Blower w/ ComfortBridge Technology

4 to 5 Ton, 24.5" Wide, Variable Speed Modular Blower w/ ComfortBridge Technology

Model: Goodman MBVC2001AA-1 (Item No. 713008)

Sale
Actual product may vary from photos.

Model: Goodman MBVC2001AA-1 (Item No. 713008)

Now $92000

Was: $970.00

Savings: $50.00


Or as low as

Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

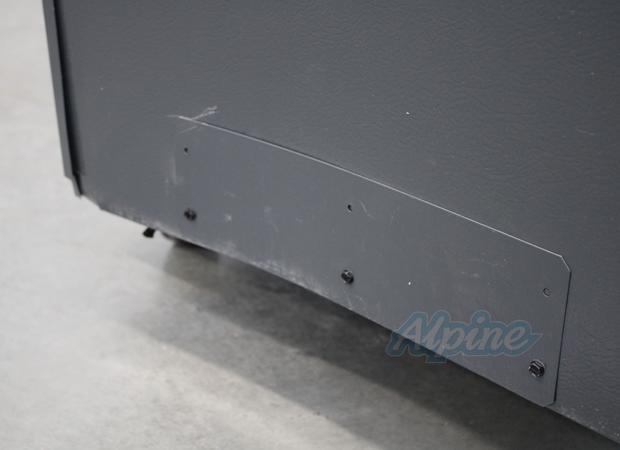

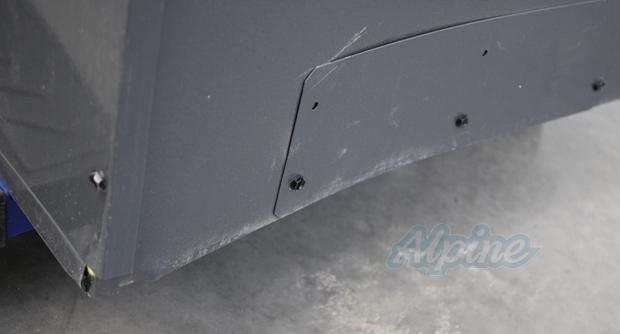

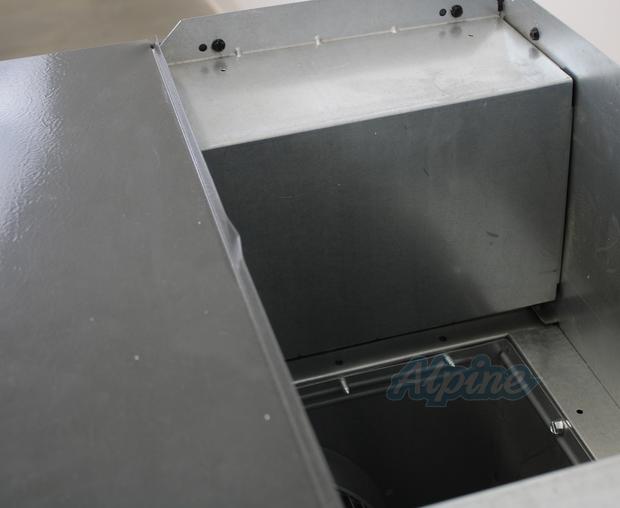

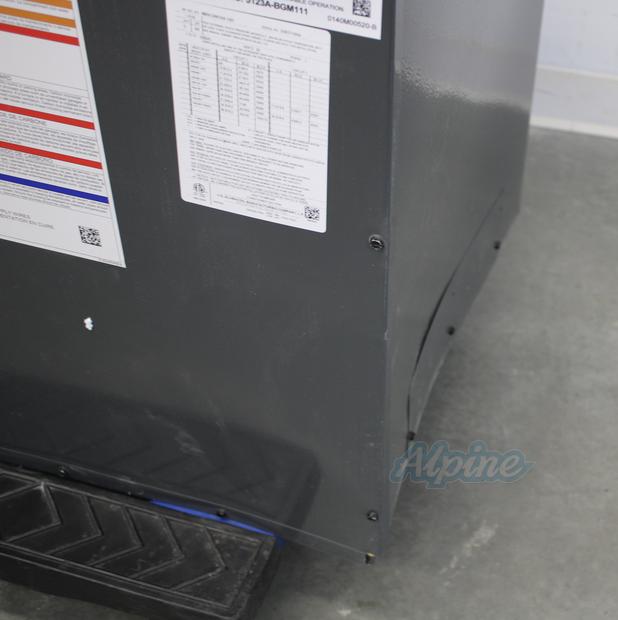

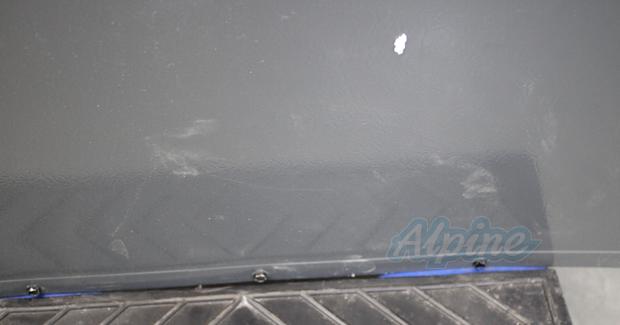

This Goodman 4 to 5 Ton MBVC2001AA-1 Variable Speed Modular Blower has some cosmetic damage incurred during shipping. Unit was returned with minor damage, didn't have original padding on the inside and has some scratches and minor dents. For detailed photos please click 'See Additional Images' above. This Goodman 4 to 5 Ton MBVC2001AA-1 Variable Speed Modular Blower meets the full manufacturer's specifications, comes with the full manufacturer's warranty, and includes Alpine's premium guarantee.

For product specs and photographs of product in its original condition, click here.

The Goodman® brand MBVC modular blowers are tailor-made for exceptional energy efficiency. Now fully compatible with the ComfortBridge line of communicating equipment, these two-piece blowers increase both installation and application flexibility. Units can be matched with cased coils for upflow, downflow, and horizontal applications.

Standard Features

  • Bluetooth Connectivity
  • MBR is a multi-speed blower — motor speed is easily changed
  • MBVC has a variable-speed ECM™ blower motor
  • MBVC is compatible with the ComfortBridge Communicating System family of products
  • Cooling or heat pump applications: upflow, downflow, and horizontal applications
  • MBR control board includes a fan delay in the cooling mode and is isolated from the air stream
  • CAPF/CHPF coils are equipped with a check flowrater
  • ARI Certified
  • ETL Certified

Cabinet Features

  • Cabinet constructed from formed, painted galvanized steel
  • Cabinet blower section can be used as an electric furnace
  • Cabinets intended to be used with cased evaporator coil (CAPF/CHPF) and condensing unit or heat pump
  • Foil-faced insulation is glued in place and covers the entire blower case to reduce operating sound and cabinet condensation
  • Bottom flanges formed inwardly for additional strength and to provide a good mounting surface for a cased-coil section to form a two-piece blower coil

This unit does not include a heat strip.  If you would like to add heating capabilities, see the accessories tab for the appropriate heater coil.

Specs
System Information
view information
Configuration
Downflow / Horizontal / Upflow
view information
Fuel Type
Electricity
Equipment Type
Modular Blower
Performance
CFM (Low/High)
(1200/2000) CFM
view information
Maximum CFM
1995 @ 0.5
view information
Blower Cooling Capacity
4 / 5 Tons
view information
Blower Type
Variable Speed
view information
Electric Heat Capabilities (Optional)
10 / 15 / 20 / 3 / 5 / 8 Kilowatts
Blower Motor Horse Power
3/4 HP
Electrical Information
view information
Voltage Phase
1
view information
Maximum Overcurrent Protection (Breaker)
15 Amps
view information
Voltage
208 / 230 Volts
Product Dimensions
view information
Width
24 1/2 Inches
view information
Depth
21 Inches
view information
Height
30 Inches
view information
Cabinet/Chassis Size
D
Blower Width
10 inches
Product Weight
86 lbs
Shipping Weight
86 lbs
Important Measurements
Blower Diameter
11 inches
view information
Supply Air Opening Size
23 1/5 x 11 1/4 Inches
Warranty
Warranty
10 (with online registration) years
Limited Warranty
10 Years
view information
Parts Warranty
With Online Registration 10 Years
