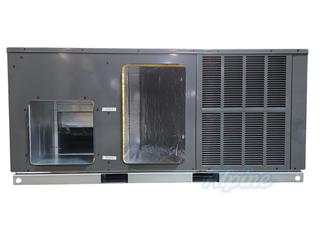

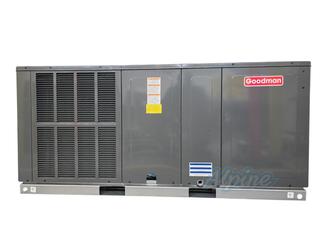

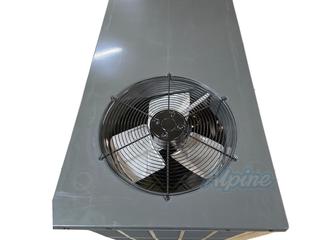

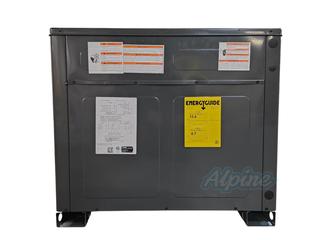

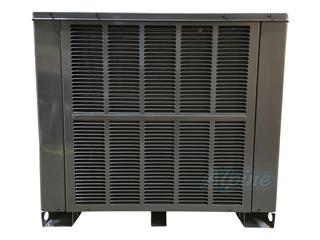

2.5 Ton, 13.4 SEER2 Self-Contained Packaged Heat Pump

2.5 Ton, 13.4 SEER2 Self-Contained Packaged Heat Pump

Model: Goodman GPHH33041 (Item No. 725527)

Sale
Actual product may vary from photos.

Model: Goodman GPHH33041 (Item No. 725527)

Keeps your home comfortable at any time of the year

Engineered for use in multiple configurations

Built for simple installation and easy maintenance

Peace of mind with 10 year warranty (with registration)

$3,45900

View Discounted Price In Cart

Or as low as

Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

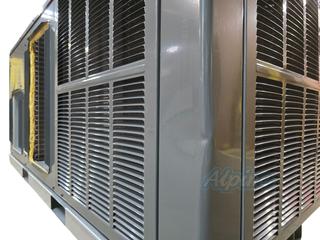

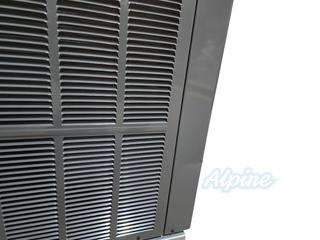

This GPHH33041 has some cosmetic damage incurred during shipping. This unit has a small dent on the side corner. For detailed photos please click 'See Additional Images' above. This GPHH33041 meets the full manufacturer's specifications, comes with the full manufacturer's warranty, and includes Alpine's premium guarantee.

For product specs and photographs of product in its original condition, click here.

The Goodman GPHH3 SEER2 Packaged Heat Pump delivers dependable cooling and heating comfort in a single self-contained unit outside your home. The GPHH3's heavy-gauge, galvanized-steel cabinet is protected by a high-quality, UV-resistant powder-paint finish for years of trouble-free operation. Homeowners and small businesses can enjoy powerful performance while saving on energy bills with highly efficient performance. Each unit is designed to allow for a ground-level or rooftop application, and the only connections needed for installation are the supply and return ducts, the line and low-voltage wiring, and drain connection.



A heat pump is on average 2-3 times more efficient than an electric furnace, electric baseboards, or an electric heater coil that can be installed in self-contained AC-only units. So if you are currently using electric heat and not using a heat pump, they can greatly reduce your heating bills. Heater coils are still typically installed in self-contained heat pumps as an auxiliary heating option and to assist in defrost cycles.



Standard Features

  • Energy-efficient scroll compressor
  • Multi-speed ECM indoor blower motor
  • Quiet horizontal discharge
  • All-aluminum evaporator coil
  • Copper tube/aluminum fin condenser coil
  • Totally enclosed, permanently lubricated condenser fan motor
  • Fully charged system
  • Electric heat kit available as a field-installed option
  • AHRI certified; ETL listed



Cabinet Features

  • Heavy-gauge galvanized-steel cabinet with architectural gray powder-paint finish
  • Aluminum foil-facing internal insulation reinforced with fiberglass scrim
  • Fully insulated blower compartment with convenient access panels
  • Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
  • Louvered condenser coil protection
  • One footprint for all tonnages
  • When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds



Specs
System Information
view information
Configuration
Horizontal
view information
Fuel Type
Electricity
view information
Compressor Stages
Single Stage
Equipment Type
Packaged Unit
view information
Refrigerant
R-410A
Efficiency
view information
Coefficient of Performance (at 47 F)
3.54 COP
view information
Coefficient of Performance at 5° F
1.5
view information
Energy Efficiency Ratio
11.0 EER
view information
Energy Efficiency Ratio 2
10.6 EER2
view information
SEER
14.0 SEER
view information
SEER2
13.4 SEER2
view information
Heating Seasonal Performance Factor
7.9 HSPF
view information
Heating Seasonal Performance Factor 2
6.7 HSPF2
Performance
Cooling CFM
1050 (High / Low)
view information
Total Cooling Capacity
2.5 Ton(s)
view information
Maximum Heating Capacity
27600 BTU
view information
Base Cooling Capacity
27800 BTU
view information
Nominal CFM
1050
view information
Blower Type
High Efficiency Multi-Speed
view information
Electric Heat Capabilities (Optional)
10 / 15 / 5 / 8 Kilowatts
view information
Compressor Type
Scroll
view information
Noise Level
76 Decibels
Electrical Information
view information
Frequency
60 Hz
view information
Voltage Phase
1
view information
Minimum Ampacity
22.4 Amps
view information
Maximum Overcurrent Protection (Breaker)
35 Amps
view information
Voltage
208 - 230 Volts
Product Dimensions
view information
Width
66 Inches
view information
Depth
34 Inches
view information
Height
30 Inches
view information
Pad Size
38x65 Inches
Product Weight
315 lbs
Shipping Weight
324 lbs
Important Measurements
view information
Supply Air Opening Size
14 x 14 Inches
view information
Return Air Opening Size
14 x 22 inches
Warranty
view information
Compressor Warranty
10 Years With Online Registration
view information
Parts Warranty
With Online Registration 10 Years
Certifications
view information
AHRI#
208842405
view information
Qualifies for Govt. Money
No
view information
Approved for US Region(s)
North / Southeast / Southwest
view information
ENERGY STAR® Certified
No
