18,000 BTU 22 SEER Single Zone 208-230V Do It Yourself Ductless Mini Split Outdoor Condenser
18,000 BTU 22 SEER Single Zone 208-230V Do It Yourself Ductless Mini Split Outdoor Condenser
Model: Blueridge BMY18DIY22C (Item No. 725018)
Actual product may vary from photos.
Model: Blueridge BMY18DIY22C (Item No. 725018)
Provides heating and cooling
Whisper quiet indoors and outdoors
Sips electricity for low utility costs
Simple installation + friendly tech support available
$91710
Or as low as
Qty:
Express Pay Available
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

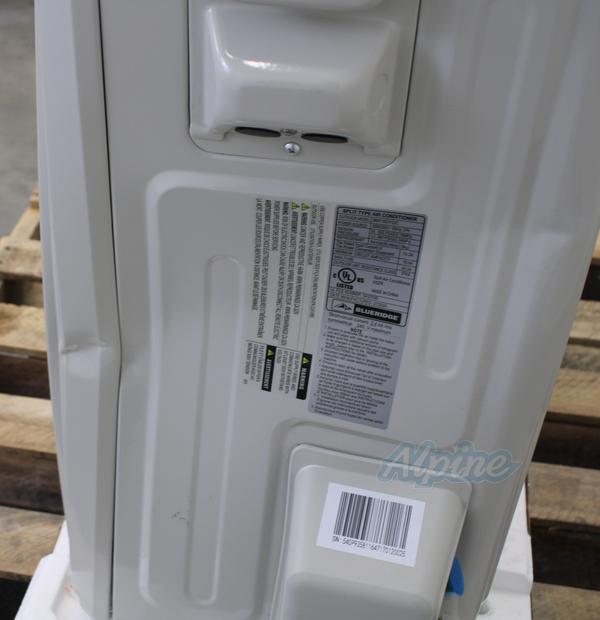

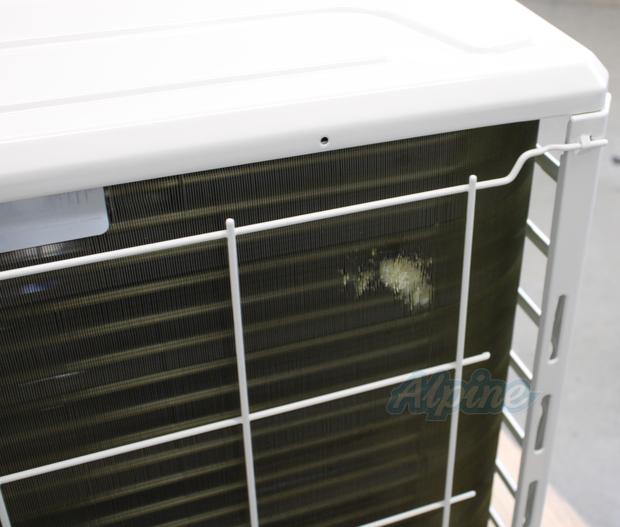

This 18,000 BTU 22 SEER Ductless Air Conditioner Condenser DIY has some cosmetic damage incurred during shipping. This unit has dents and scratches to the front and right side panel. For detailed photos please click 'See Additional Images' above. This 18,000 BTU 22 SEER Ductless Air Conditioner Condenser DIY meets the full manufacturer's specifications, comes with the full manufacturer's warranty, and includes Alpine's premium guarantee.
For product specs and photographs of product in its original condition, click here.
18,000 BTU 22 SEER Single Zone 208-230V Do It Yourself Ductless Air Conditioner Condenser - Condenser ONLY
*NOTE: This product is not a complete system, it is only one component. A complete system requires an indoor air handler, outdoor condenser and connecting line set. Please view complete systems here.
Heat or Cool Any Space,
Simply and Affordably
Simply and Affordably
Surprisingly
Affordable
Affordable
Incredibly
Quiet
Quiet
Great
Reviews
Reviews
Easy to
Install
Install
What is a Blueridge Ductless System?
It's a better way to heat and cool any space without the need for ductwork. Includes an outdoor heat pump condenser and 1 to 5 indoor air handlers. It's inexpensive to own and operate, easier to install and whisper quiet.
The Blueridge Do-It-Yourself eliminates the most technical, difficult steps from a normal HVAC installation.
No Soldering
No Refrigerant Handling
No Gauges
No Vacuum Pump
Normal HVAC Installation:
Usually, a technician will solder together copper tubing to create a sealed environment for the refrigerant chemicals to circulate. Then, they add nitrogen gas under high pressure to test for leaks. Next, they use a vacuum pump to evacuate all gasses from inside. Only then will they release the refrigerant that will allow the system to function, using gauges to make sure the volume and pressure are correct.
Blueridge Do-It-Yourself:
The Blueridge Do-It-Yourself system uses a different approach to get the same result. You get two separate units - the inside air handler and the outside condenser. The condenser already contains the correct amount of refrigerant. The copper lines included with your Blueridge DIY system, are already under vacuum. They have quick-connect fittings that maintain a vacuum until you’re ready to connect. After you’ve installed the indoor and outdoor units, you screw together the quick-connect fittings, then open the valves to release the refrigerant. It’s that easy.
Benefits
Quiet
Both the indoor and outdoor units operate so quietly you may not be aware they are running. You will just be aware that you are comfortable.
Affordable
The great value extends beyond the low purchase price of these units. You will be pleasantly surprised by how inexpensive they are to operate.
Efficient
Lower your utility bills with inverter technology, by using less electricity and no fossil fuels to accomplish your heating and cooling needs. This is intelligent equipment for a sustainable and comfortable lifestyle.
Versatility
Because there is no ductwork, this is a solution for all kinds of hard-to-fit applications. Any room or space can be transformed into a place for you and others to enjoy for years to come.
Simple Installation
You can install a Blueridge Do-It-Yourself mini split without any special training, tools, or equipment thanks to the pre-charged line set that comes included with your system. Simply follow a few easy installation steps to get your mini split working in no time.
Heat or Cool Any Type of Space:
Entire homes
Condos
Bonus rooms
Hotel rooms
Small businesses
Studios
Tiny homes
Coffee shops
Pool houses
Workshops
Offices
Man caves
Attics
Casitas
Retreat spaces
Sun rooms
Basements
Garages
Enclosed porches
Mother-in-law apartments
Many more applications
Videos
Blueridge Ductless Mini-Split AC Highlights
Blueridge Mini-Splits also Provide Heat!
Great customer reviews
Great Product!
Simon
Cleveland, GA
This is an outstanding product at a reasonable price.
Mike
Birmingham AL
Great mini-split system!
Marq
New Bern, NC
Installed easily and works very quietly.
Mike
Palm Desert, CA
Excellent! Works great.
Vic
Jefferson, GA
I would buy it again.
Jack
Johns Creek, GA
Installation
Step 1
Mount
Once you have received the product, mount the indoor and outdoor units to your desired resting location.
Step 2
Connect
Next, run the line sets, drain line, and electrical wires from the indoor unit(s) to the outdoor unit.
Step 3
Electrical
Run a 220 volt power circuit from your main breaker to the outdoor disconnect. Then run the electrical whip from the disconnect to the outdoor unit.
CEO and Founder
Andrew Arthurs
Alpine Home Air Products
Blueridge ductless mini-splits are exclusive to Alpine Home Air and are one of our most popular brands. These units are manufactured to our specifications by the largest, most reputable HVAC manufacturer in the world.
Our customers love them! We receive rave reviews because these products are solidly-engineered, thoroughly tested, reliable, and quiet. Our customers order Blueridge because of the incredible value and savings. Competing brands cost more for one reason: a long supply chain raising the price before the product hits your door. With Blueridge, we buy directly from the manufacturer and our customers save thousands of dollars. Long established throughout the rest of the world, mini-splits are quickly gaining popularity across America. The ease of installation, versatility, and savings cannot be matched. We know you will love our Blueridge mini-splits as much as we do. Please tell your friends and help us get the word out.
Blueridge BMY18DIY22C (Item No. 725018)
Standard Features
Convenient remote control enables unique temperatures to be set per zone.
High-efficiency inverter technology allows for even cooling and heating while reducing energy costs.
Gold fin condenser coil coating extends the life of your system by protecting it from corrosion.
Intelligent sleep function adjusts to your sleep pattern in order to maximize your comfort and reduce energy costs. User controls direct air flow.
Intelligent defrost reduces energy and defrost time by only defrosting when needed.
This System Includes*
18,000 BTU 22 SEER Single Zone 208-230V Do It Yourself Ductless Mini Split Outdoor Condenser
Specs
System Information
Zones
1
Factory Precharge
25 Feet
Equipment Type
Mini Split Outdoor Unit
Single Vs. Multi-Zone
Single zone
Mini-Split Series
S3 Series: DIY
Product Type
Mini Split DIY
Component Type
Outdoor Unit
Refrigerant
R-410A
Features
WIFI (2.4GHz)
None
Efficiency
Coefficient of Performance (at 47 F)
3.74 COP
Coefficient of Performance at 5° F
2.05
Energy Efficiency Ratio
12.5 EER
Energy Efficiency Ratio 2
12.6 EER2
SEER
22.0 SEER
SEER2
22.7 SEER2
Heating Seasonal Performance Factor
11.5 HSPF
Heating Seasonal Performance Factor 2
9.8 HSPF2
Performance
Ambient Temperature Range (Cooling)
-13 / 122 °F
Ambient Temperature Range (Heating)
-13 / 75 °F
Low Ambient Cooling
Yes
Base Heating Capacity
18000 BTU
Total Cooling Capacity
1.5 Ton(s)
Maximum Heating Capacity
21200 BTU
Base Cooling Capacity
18000 BTU
Maximum Cooling Capacity
18660 BTU
Compressor Type
Inverter
Sound Rating, Outdoor
58.5 Decibels
Electrical Information
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
18 Amps
Maximum Fuse/Breaker
30 Amps
Maximum Overcurrent Protection (Breaker)
30 Amps
Voltage
208 - 230 Volts
Line Set Information
Maximum Line Length per Zone
98.42 Feet
Maximum Height Difference
65.62 Feet
Maximum Line Length all Zones
98.42 Feet
Included Pre-charged Line Set Length
25 Feet
Liquid Line Size (OD)
1/4 Inches
Suction Line Size (OD)
1/2 Inches
Line Set Connection Type
Quick Connect
Product Dimensions
Width
35 1/25 Inches
Depth
13 23/50 Inches
Height
26 1/2 Inches
Product Weight
94.36 lbs
Footprint Mounting Holes (W x D)
26.1 x 13.9 Inches
Warranty
Compressor Warranty
7 Years
Parts Warranty
5 Years
Certifications
AHRI#
207339180
ENERGY STAR® ID
2449016
ENERGY STAR® Certified
Yes
Accessories
Enjoy free shipping on any accessories purchased with the Blueridge BMY18DIY22C (Item No. 725018).
Electrical Disconnect
Alpine AG-DCT
Safety Non-Fused Electrical Disconnect
$2199
Electrical Whips
Alpine AG-WHP10
1/2 x 48 Inches, #10 Gauge Electrical Whip
$2499
Mini-Split Components
Blueridge BMY18DIY22WM
18,000 BTU Single Zone Do It Yourself Wall Mounted Ductless Air Handler
$43000
Mini-Split System Accessories
Alpine AHMSA1
Adapter 5/16" x 1/4" for Ductless Mini-Split Systems
$1999
Blueridge BY-30
Adjustable Steel Wall Bracket for w/ 30 inch long arms Ductless Mini Splits, 660 lbs Capacity
$7999
Blueridge BY650
Blueridge Adjustable Wall Bracket w/ 25.5 inch long arms for Ductless Mini Splits, 440 lbs Capacity
$5999
Blueridge BR1838
Blueridge BR1838 18x38x3 in. Air Conditioning Condenser Pad
$4999
Mersen STXH240S05
STXH240S05 Type 1 50kA 240/120V Split Phase Surge Protector
$9999
Refrigeration Technologies RT201B
Nylog Blue Gasket, Flare and Thread Sealant
$1199
Outdoor Line Set Covers
Blueridge BGG130
Blueridge Line Set Cover Kit BGG130
$7999
DiversiTech 230-EIN3
90° Outside Elbow for Diversitech 3" SpeediChannel™ Line Set Covers
$1599
DiversiTech 230-CP3
Coupling for Diversitech 3" SpeediChannel™ Line Set Covers
$999
DiversiTech 230-D3 1M
39" Long, 3" SpeediChannel™ Line Set Cover for DiversiTech
$2999
DiversiTech 230-DC3
End Cap for Diversitech 3" SpeediChannel™ Line Set Covers
$1099
DiversiTech 230-DCLIP-10
(10-Pack) SpeediClips™ for DiversiTech Line Set Covers
$1099
DiversiTech 230-DE3
End Fitting for Diversitech 3" SpeediChannel™ Line Set Covers
$1099
DiversiTech 230-EB3
90° Inside Elbow for Diversitech 3" SpeediChannel™ Line Set Covers
$1599
DiversiTech 230-FB3
90° Flat Bend for Diversitech 3" SpeediChannel™ Line Set Covers
$1899
DiversiTech 230-FB453
45° Flat Bend for Diversitech 3" SpeediChannel™ Line Set Covers
$1799
DiversiTech 230-FJ3
Flex Joint for Diversitech 3" SpeediChannel™ Line Set Covers
$1599
DiversiTech 230-FR3
Flat Wall Escutcheon for Diversitech 3" SpeediChannel™ Line Set Covers
$899
DiversiTech 230-LFB3
90° Long Bend for Diversitech 3" SpeediChannel™ Line Set Covers
$2399
DiversiTech 230-SF3
3" Soffit Fitting for DiversiTech SpeediChannel™ Line Set Covers
$2599
DiversiTech 230-WC3
Wall Connection Piece for Diversitech 3" SpeediChannel™ Line Set Covers
$2599
DiversiTech 230-WR3
Non-Flat Wall Escutcheon for Diversitech 3" SpeediChannel™ Line Set Covers
$1099
Documents
Blueridge DIY Installation 12/5/2023(PDF, 3.83 MB)- Blueridge BMY18DIY22 AHRI Certificate 207339180(PDF, 111 KB)
- Blueridge BMY18DIY22 Energy Star Certificate 2449016(PDF, 74.7 KB)
- Blueridge Ductless Mini-Split Warranty(PDF, 180 KB)
- Blueridge DIY Install and User Manual 5/29/2024(PDF, 3.76 MB)
- Wire Gauge Sizes(PDF, 40.9 KB)
