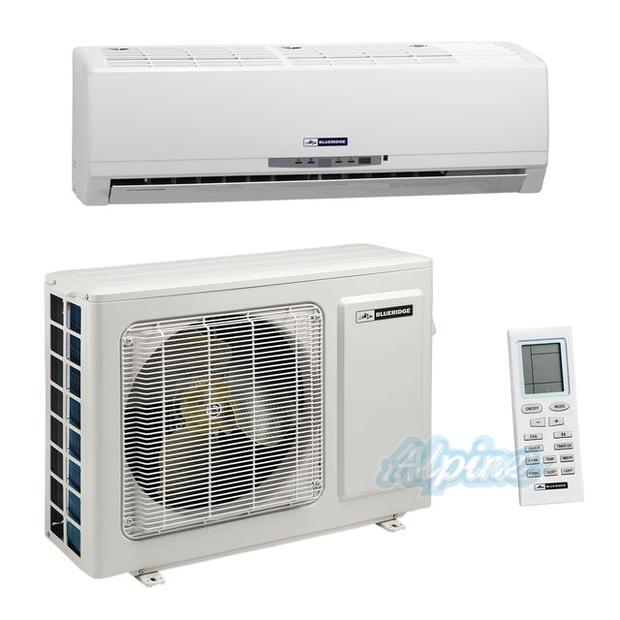

24,000 BTU (2 Ton) 18 SEER Single Zone Ductless Mini-Split Heat Pump System ****WARRANTY ONLY****
24,000 BTU (2 Ton) 18 SEER Single Zone Ductless Mini-Split Heat Pump System ****WARRANTY ONLY****
Model: Blueridge BMKH24-18YN4GA
highlights
****WARRANTY ONLY PRODUCT - NOT FOR SALE****
Also Consider
24,000 BTU (2 Ton) 21.5 SEER / 21.5 SEER2 - S5 SERIES - 208/230V ULTRA HEAT Single Zone Ductless Mini-Split Heat Pump System w/ WiFi
Blueridge BMKH2422
In Stock
$
2,169
00
Specs
System Information
Mini-Split System Type
Heating / Cooling
Zones
1
Factory Precharge
25 Feet
Refrigerant
R-410A
Efficiency
Coefficient of Performance (at 47 F)
3.2 COP
Energy Efficiency Ratio
12.0 EER
SEER
18.0 SEER
Heating Seasonal Performance Factor
10.0 HSPF
Performance
Ambient Temperature Range (Cooling)
109 / 5 °F
Ambient Temperature Range (Heating)
5 / 75 °F
Low Ambient Cooling
Yes
Base Heating Capacity
26000 BTU
Total Cooling Capacity
2 Ton(s)
Maximum Heating Capacity
26000 BTU
Base Cooling Capacity
24000 BTU
Maximum Cooling Capacity
21400 BTU
Compressor Type
Inverter
Sound Rating, Indoor
37 / 53 Decibels
Sound Rating, Outdoor
58 Decibels
Electrical Information
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
16 Amps
Maximum Fuse/Breaker
25 Amps
Voltage
208 / 230 Volts
Line Set Information
Maximum Line Length per Zone
82 Feet
Maximum Height Difference
32.8 Feet
Maximum Line Length all Zones
82 Feet
Liquid Line Size (OD)
1/4 Inches
Suction Line Size (OD)
5/8 Inches
Line Set Connection Type
Flare
Product Dimensions
Indoor Air Handler Size, W x H x D
39 11/16 x 12 7/16 x 8 5/8 Inches
Outdoor Condenser Size, W x H x D
38 5/8 x 31 1/8 x 16 13/16 Inches
Indoor Air Handler Weight
30 Lbs
Outdoor Condenser Weight
132.3 Lbs
Footprint Mounting Holes (W x D)
24 x 15.72 Inches
Warranty
Compressor Warranty
5 Years
Parts Warranty
1 Years
Certifications
Qualifies for Govt. Money
No
ENERGY STAR® Certified
No
Accessories
Enjoy free shipping on any accessories purchased with the Blueridge BMKH24-18YN4GA.
Required Components for Installation
Alpine AG-DCT
Safety Non-Fused Electrical Disconnect
$2199
Alpine AG-WHP10
1/2 x 48 Inches, #10 Gauge Electrical Whip
$2499
Alpine MW4/125
125' Stranded Mini-Split Communication Wire - Non-Shielded (600 Volt)
$14999
Alpine MW4/025
25' Stranded Ductless Mini-Split Communication Wire - Non-Shielded (600 Volt)
$4999
Alpine MW4/250
250' Stranded Mini-Split Communication Wire - Non-Shielded (600 Volt)
$29999
Alpine MW4/050
50' Stranded Ductless Mini-Split Communication Wire - Non-Shielded (600 Volt)
$6999
Alpine AHDH20
5/8in Inner Diameter Drain Hose, 20ft Length
$1999
Alpine AHMSA1
Adapter 5/16" x 1/4" for Ductless Mini-Split Systems
$1999
Alpine 41080150B3B6
15 Foot 1/4 LL 5/8 SL Ductless Mini-Split Line Set
$13999
Alpine 41080250B3B6
25 Foot 1/4 LL 5/8 SL Ductless Mini-Split Line Set
$17999
Alpine 41080350B3B6
35 Foot 1/4 LL 5/8 SL Ductless Mini-Split Line Set
$23999
Alpine 41080500B3B6
50 Foot 1/4 LL 5/8 SL Ductless Mini-Split Line Set
$31999
Alpine 41080650B3B6
65 Foot 1/4 LL 5/8 SL Ductless Mini-Split Line Set
$41999
Air Boosters & Specialty Fans
Tjernlund AS1
Room-to-Room Ventilator, 120 VAC Hardwired, 75 CFM
$17499
Air Conditioning System Protectors
DiversiTech CGB-AER
Coil Guard - Aerosol, Blue
$3299
Condensation Control
Rectorseal SS610E
Safe-T-Switch Electronic Condensate Overflow Switch
$11999
Mini-Split System Accessories
DiversiTech 230-MB17CW
(2-Pack) 17" Mounting Blocks with End Caps for Ductless Mini-Split Air Conditioner and Heat Pump Condensers
$4300
Blueridge 30510517
Blueridge Remote Control - For High SEER and Multizone Indoor Wall Mounted Air Handlers
$3999
Alpine AHDH164
5/8in Coil Standard Drain Hose 164 ft Length
$9999
Rectorseal 83004
5/8in Coil UV Resistant Drain Hose 164 ft. Length
$13499
Rectorseal 87743
Slab Stand for Ductless Mini-Split Condensers, 176 lbs Weight Capacity
$16999
Rectorseal 97705
Rectorseal 97705 Mighty Bracket
$18999
Outdoor Line Set Covers
DiversiTech 230-CP6
Coupling for Diversitech 6" SpeediChannel™ Line Set Covers
$1699
DiversiTech 230-DC6
End Cap for Diversitech 6" SpeediChannel™ Line Set Covers
$1499
DiversiTech 230-DCLIP-10
(10-Pack) SpeediClips™ for DiversiTech Line Set Covers
$1099
DiversiTech 230-DE6
End Fitting for Diversitech 6" SpeediChannel™ Line Set Covers
$1899
DiversiTech 230-EB6
90° Inside Elbow for Diversitech 6" SpeediChannel™ Line Set Covers
$3699
DiversiTech 230-EIN6
90° Outside Elbow for Diversitech 6" SpeediChannel™ Line Set Covers
$3699
DiversiTech 230-FB456
45° Flat Bend for Diversitech 6" SpeediChannel™ Line Set Covers
$3999
DiversiTech 230-FB6
90° Flat Bend for Diversitech 6" SpeediChannel™ Line Set Covers
$3699
DiversiTech 230-FR6
Flat Wall Escutcheon for Diversitech 6" SpeediChannel™ Line Set Covers
$1399
DiversiTech 230-LFB6
90° Long Bend for Diversitech 6" SpeediChannel™ Line Set Covers
$3899
DiversiTech 230-WC6
Wall Connection Piece for Diversitech 6" SpeediChannel™ Line Set Covers
$4299
DiversiTech 230-WR6
Non-Flat Wall Escutcheon for Diversitech 6" SpeediChannel™ Line Set Covers
$1299
DiversiTech 230-WS2
2.5" Wall Sleeve for SpeediChannel™ Line Set Covers
$1499
Tools
DiversiTech 358-20
Foam-Plus™ Foaming Condenser Coil Cleaner - 19 oz. Aerosol
$999
Documents
BMKH24-18YN4GA Specifications Submittal(PDF, 2.45 MB)- AHRI Certificate BMKH24 18 SEER(PDF, 223 KB)
- Blueridge Warranty - High SEER Single Zone(PDF, 313 KB)
- Blueridge Installation and Owner's Manual(PDF, 677 KB)
- Blueridge M Series Remote Control Manual(PDF, 301 KB)
- Blueridge Ductless Mini-Split Warranty(PDF, 180 KB)
