24,000 BTU (2 Ton) 21.5 SEER / 21.5 SEER2 - S5 SERIES - 208/230V ULTRA HEAT Single Zone Ductless Mini-Split Heat Pump System w/ WiFi
24,000 BTU (2 Ton) 21.5 SEER / 21.5 SEER2 - S5 SERIES - 208/230V ULTRA HEAT Single Zone Ductless Mini-Split Heat Pump System w/ WiFi
Model: Blueridge BMKH2422
Actual product may vary from photos.
Model: Blueridge BMKH2422
Provides heating and cooling
Whisper quiet indoors and outdoors
Sips electricity for low utility costs
Simple installation + friendly tech support available
$2,16900
Or as low as
Volume Discounts
Qty:
Express Pay Available
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Includes
Services
- Pro Installation (Learn More)
highlights
Heat or Cool Any Space,
Simply and Affordably
Simply and Affordably
Surprisingly
Affordable
Affordable
Incredibly
Quiet
Quiet
Great
Reviews
Reviews
Easy to
Install
Install
What is a Blueridge Ductless System?
It's a better way to heat and cool any space without the need for ductwork. Includes an outdoor heat pump condenser and 1 to 5 indoor air handlers. It's inexpensive to own and operate, easier to install and whisper quiet.
Homeowners and contractors love Blueridge ductless mini-splits. If you own a home, you will want one.
Introducing Blueridge Energy Star, the ultra high efficiency smart ductless mini-split system from Blueridge. You can keep any room comfortable without sacrificing aesthetics. The quiet, unobtrusive design delivers advanced performance with an industry-best energy efficiency rating of up to 38 SEER in cooling and 15.0 HSPF in heating.
Blueridge ES Series provides ULTRA Heating technology to keep you reliably warm when temperatures drop as low as -22°F. Universal WIFI technology makes operation simple - enjoy direct control from your smartphone. Unparalleled efficiency and technology make Blueridge Energy Star Mini Splits, the perfect choice for any home or office.
Benefits
Quiet
Both the indoor and outdoor units operate so quietly you may not be aware they are running. You will just be aware that you are comfortable.
Affordable
The great value extends beyond the low purchase price of these units. You will be pleasantly surprised by how inexpensive they are to operate.
Efficient
Lower your utility bills with inverter technology, by using less electricity and no fossil fuels to accomplish your heating and cooling needs. This is intelligent equipment for a sustainable and comfortable lifestyle.
Versatility
Because there is no ductwork, this is a solution for all kinds of hard-to-fit applications. Any room or space can be transformed into a place for you and others to enjoy for years to come.
Simple Installation
If you're handy, you can accomplish 90% of the installation yourself by following the simple directions and watching our helpful video. Bring in a professional to finish the job and you're set.
Heat or Cool Any Type of Space:
Entire homes
Condos
Bonus rooms
Hotel rooms
Small businesses
Studios
Tiny homes
Coffee shops
Pool houses
Workshops
Offices
Man caves
Attics
Casitas
Retreat spaces
Sun rooms
Basements
Garages
Enclosed porches
Mother-in-law apartments
Many more applications
Videos
Blueridge Ductless Mini-Split AC Highlights
Blueridge Mini-Splits also Provide Heat!
Great customer reviews
Great Product!
Simon
Cleveland, GA
This is an outstanding product at a reasonable price.
Mike
Birmingham AL
Great mini-split system!
Marq
New Bern, NC
Installed easily and works very quietly.
Mike
Palm Desert, CA
Excellent! Works great.
Vic
Jefferson, GA
I would buy it again.
Jack
Johns Creek, GA
Blueridge BMKH2422/I Unit Type:
Wall Unit
Wall mounted units mount high on a vertical wall. The
connective hoses and condensation go through the wall
to the outside behind the unit. These are the most
popular design due to the ease of installation and
low cost.
Installation
Step 1
Mount
Once you have received the product, mount the indoor and outdoor units to your desired resting location.
Step 2
Connect
Next, run the line sets, drain line, and electrical wires from the indoor unit(s) to the outdoor unit.
Step 3
Electrical
Run a 220 volt power circuit from your main breaker to the outdoor disconnect. Then run the electrical whip from the disconnect to the outdoor unit.
Step 4
Pro Start Up
We'll help you get an HVAC contractor who will pressure test the line sets, check for leaks, and release refrigerant. Click Here For Details
How to Install a Blueridge Ductless Mini-Split AC System
View installation manual for complete instructions
CEO and Founder
Andrew Arthurs
Alpine Home Air Products
Blueridge ductless mini-splits are exclusive to Alpine Home Air and are one of our most popular brands. These units are manufactured to our specifications by the largest, most reputable HVAC manufacturer in the world.
Our customers love them! We receive rave reviews because these products are solidly-engineered, thoroughly tested, reliable, and quiet. Our customers order Blueridge because of the incredible value and savings. Competing brands cost more for one reason: a long supply chain raising the price before the product hits your door. With Blueridge, we buy directly from the manufacturer and our customers save thousands of dollars. Long established throughout the rest of the world, mini-splits are quickly gaining popularity across America. The ease of installation, versatility, and savings cannot be matched. We know you will love our Blueridge mini-splits as much as we do. Please tell your friends and help us get the word out.
Blueridge BMKH2422
Standard Features
Ultra High Efficiency. Seasonal rating of up to 38 SEER cooling and 15 HSPF heating, making it among the most energy efficient heat pumps available today. Energy Star rated, recognized nationwide for products with high efficiency and lower utility costs.
Ultra Heating. Technology that gives true year round comfort in cold climate by delivering up to 90% heating capacity at -22°F.
WIFI Enabled - Control the comfort with your smartphone. For the ultimate in convenience, it has Universal WIFI and smartphone control. Simple and easy, allowing you to adjust comfort levels from anywhere you have WIFI access through your smartphone. The system is compatible with devices using standard Android or IOS operating systems.
Variable Speed Compressor. The variable speed compressor provides extended heating capacity at ultra-low temperature and additional cooling capacity in high temperature environments.
G-10 Inverter Technology. Inverter Technology gives the Blueridge Energy Star system a wide range of heating and cooling capacities to reach the desired room temperature much faster and maintain consistent comfort levels year round.
Intelligent Defrost / Pre-Heating. Saving energy by defrosting only when needed, the Energy Star series monitors the frost build up on the coil surface. It also monitors the discharge air temperature, and delays the indoor fan until the coil has warmed up to prevent uncomfortable cold air blowing into the room.
Self-Diagnostics. The system has a built-in computer which uses real-time diagnostics which help prolong the unit's life. The automatic diagnostics feature continuously scans for errors or malfunctions and fault codes are shown on the unit display to facilitate troubleshooting and repair.
4-Way Airflow. 4-way adjustable swing louvers can direct the airflow anywhere it is needed in the room.
Whisper Quiet Operation. Blueridge operates below typical library sound levels with sound ratings as low as 19 dB(A).
7 Speed Fan. The indoor fan can operate at different speeds, up to seven, for COOL or HEAT mode to provide maximum comfort and quiet operation.
180° Vertical Air Supply. Wide angle air guides enable a full 180° swing up and down for superior air distribution.

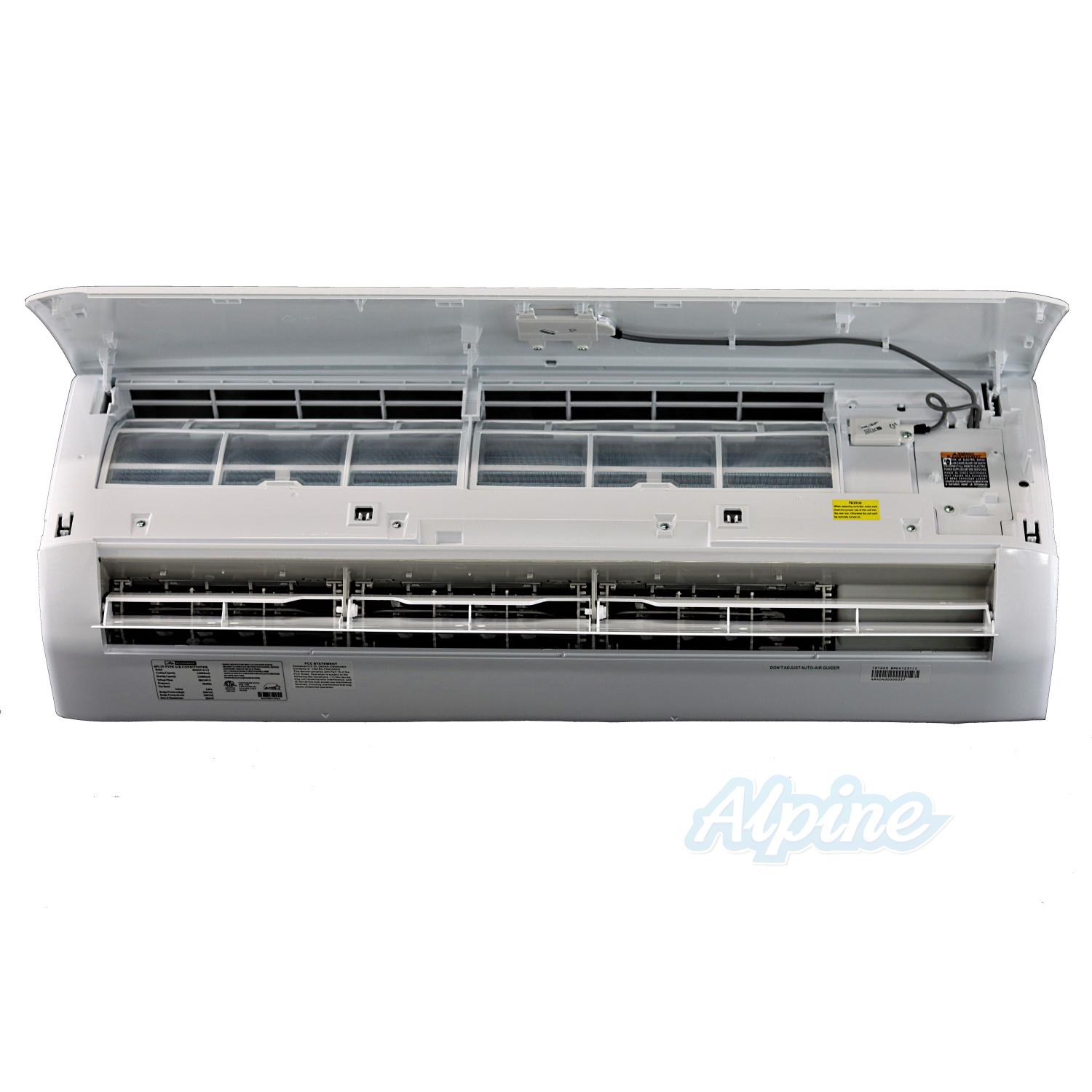

Polymeric Air Filters. Protect your unit and improve air quality by preventing dust and debris from degrading your system performance. The filters are washable and permanent for your convenience.
I Feel Mode Senses the room temperature from the remote control which is closest to you, instead of at the indoor unit. This means that it will adjust airflow and temperature for maximum personal comfort.
This System Includes*

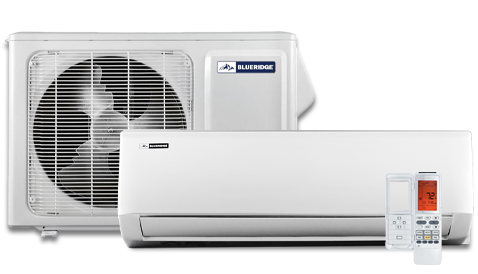

24,000 BTU 21.5 SEER / 21.5 SEER2 ULTRA HEAT Single Zone Ductless Mini Split Outdoor Condenser

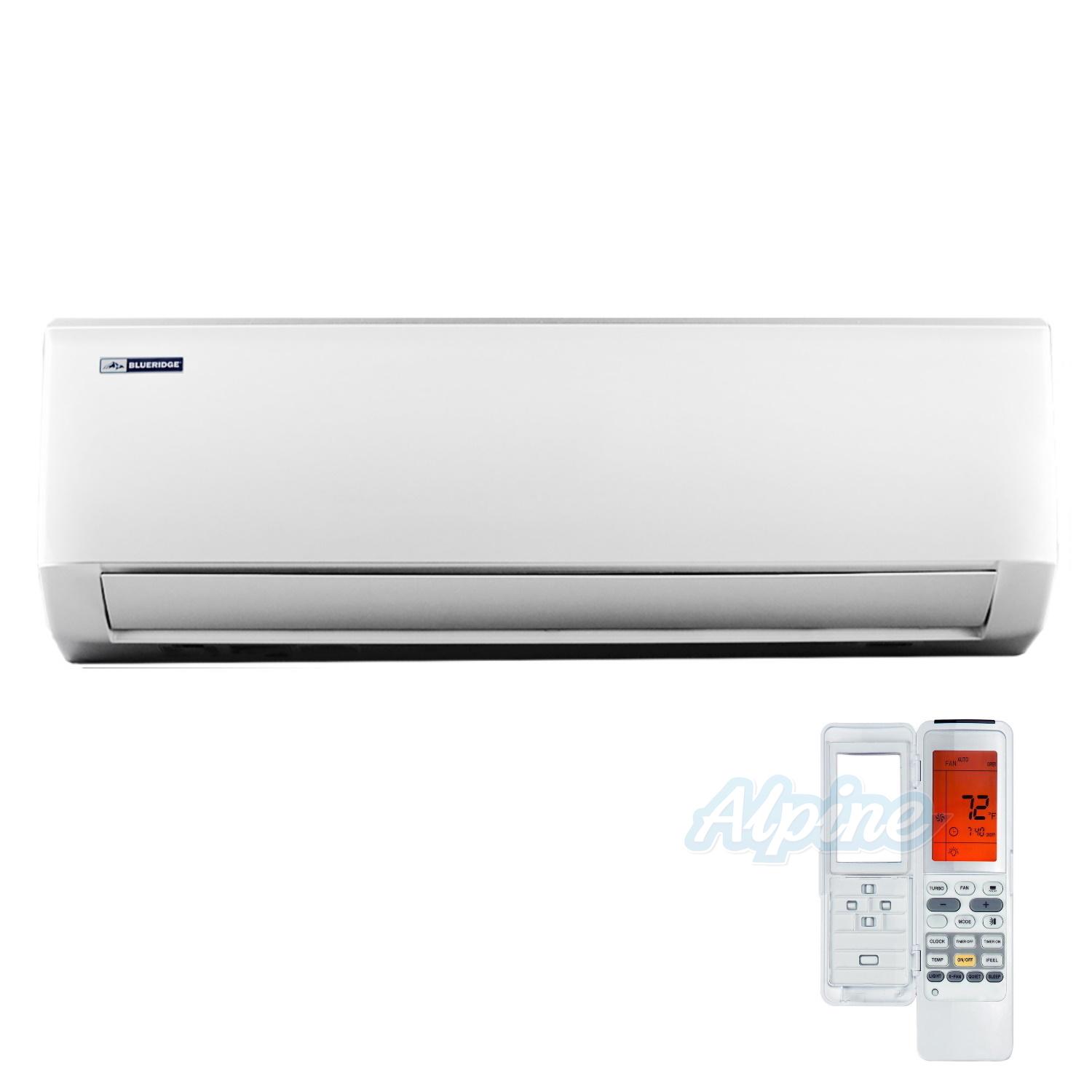

24,000 BTU Single Zone ULTRA HEAT Wall Mounted Ductless Air Handler (1/4 LL 5/8 SL)

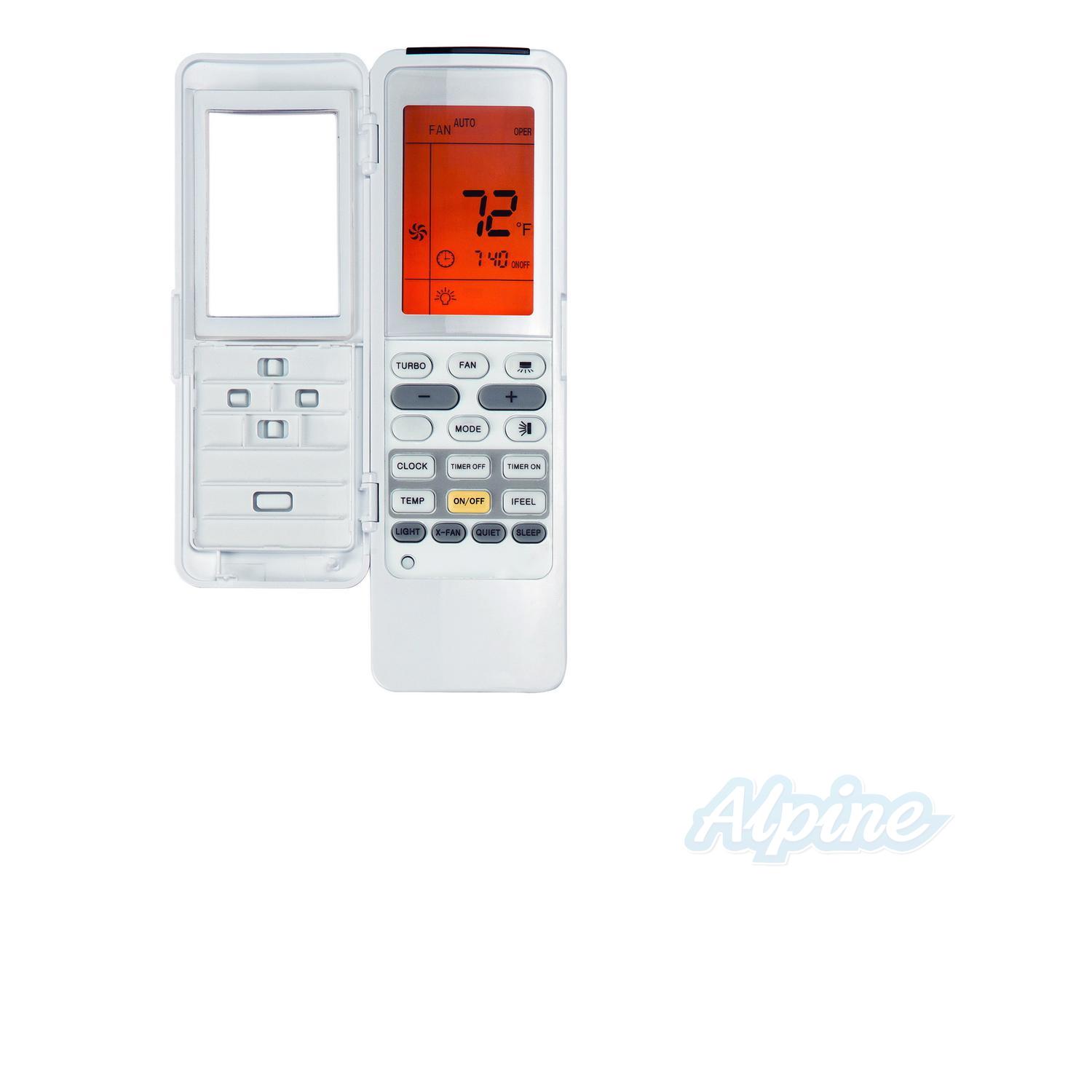

Blueridge 305001000082 Remote Control
*NOTE: Does not include all required components for installation. See required components below in the accessories section to complete your system.
Also Consider
24,000 BTU (2 Ton) 21.5 SEER / 21.5 SEER2 - S5 SERIES - 208/230V ULTRA HEAT Single Zone Ductless Mini-Split Heat Pump KIT 25FT w/ WiFi
Blueridge BMKH2422 KIT25
In Stock
$
2,523
00
Specs
System Information
Mini-Split System Type
Heating / Cooling
Zones
1
Factory Precharge
25 Feet
Indoor Air Handler Type(s)
Wall Mount
Single Zone Mini-Split Series
S5 Series: Ultra Heat
Product Type
Mini Split Only
Refrigerant
R-410A
Features
WIFI (2.4GHz)
Yes (Built In)
Efficiency
Coefficient of Performance (at 47 F)
3.5 COP
Coefficient of Performance at 5° F
1.9
Energy Efficiency Ratio
13.0 EER
Energy Efficiency Ratio 2
13.0 EER2
SEER
21.5 SEER
SEER2
21.5 SEER2
Heating Seasonal Performance Factor
12.0 HSPF
Heating Seasonal Performance Factor 2
9.5 HSPF2
Performance
Ambient Temperature Range (Cooling)
0 / 129 °F
Ambient Temperature Range (Heating)
-22 / 75 °F
Low Ambient Cooling
Yes
Base Heating Capacity
24000 BTU
Airflow Capacity
824 - 383 CFM
Total Cooling Capacity
2 Ton(s)
Maximum Heating Capacity
32000 BTU
Base Cooling Capacity
22000 BTU
Lowest Ambient Temperature (Heating)
-22 °F
Maximum Cooling Capacity
30700 BTU
Moisture Removal
4.23 Pts/Hr
Compressor Type
Inverter
Cooling Tonnage
2 Tons
Sound Rating, Indoor
34 / 54 Decibels
Sound Rating, Outdoor
59 Decibels
Electrical Information
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
22 Amps
Maximum Fuse/Breaker
35 Amps
Voltage
208 - 230 Volts
Line Set Information
Maximum Line Length per Zone
164 Feet
Maximum Height Difference
98 Feet
Liquid Line Size (OD)
1/4 Inches
Suction Line Size (OD)
5/8 Inches
Line Set Connection Type
Flare
Product Dimensions

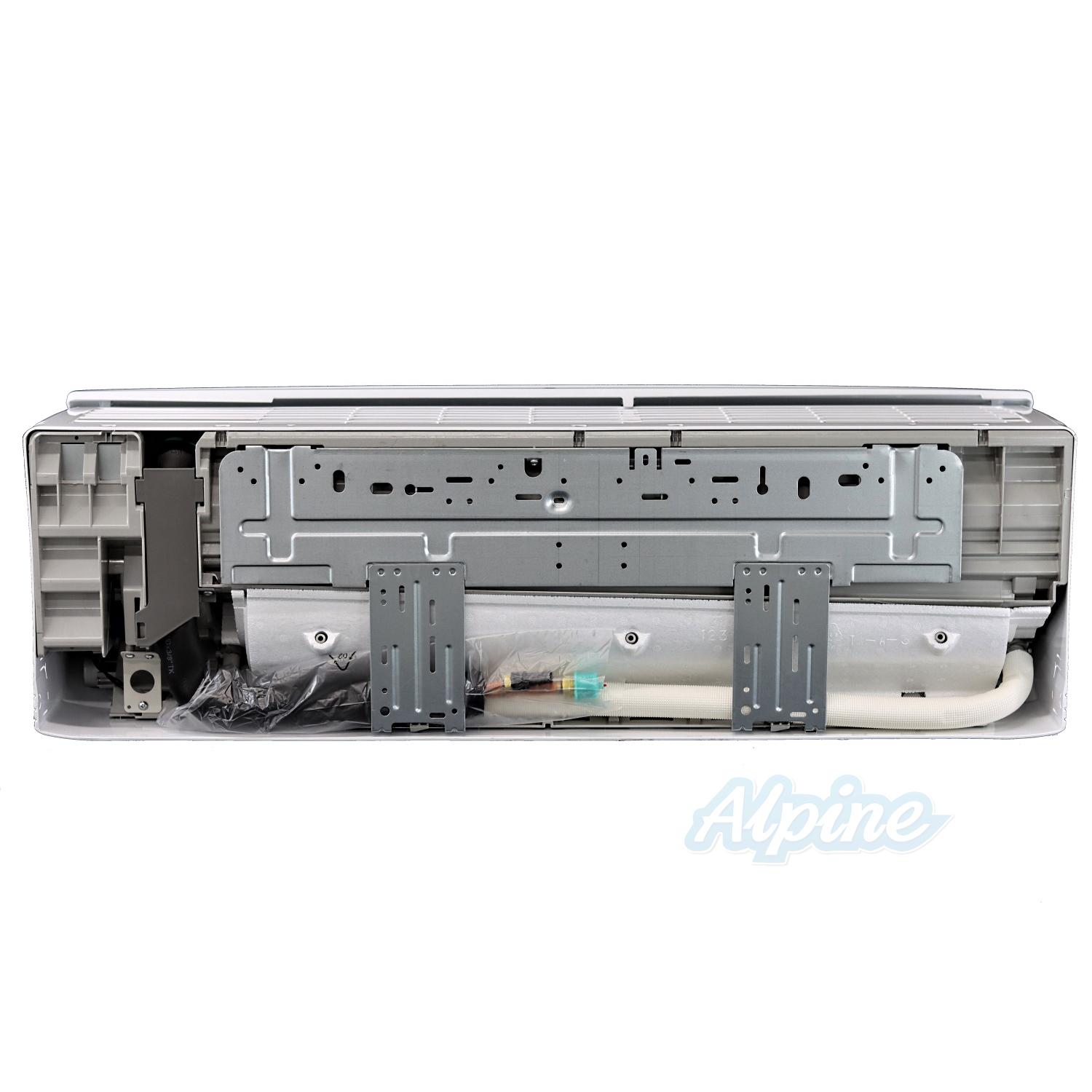

Indoor Air Handler Size, W x H x D
42.5 x 12.8 x 9.7 Inches

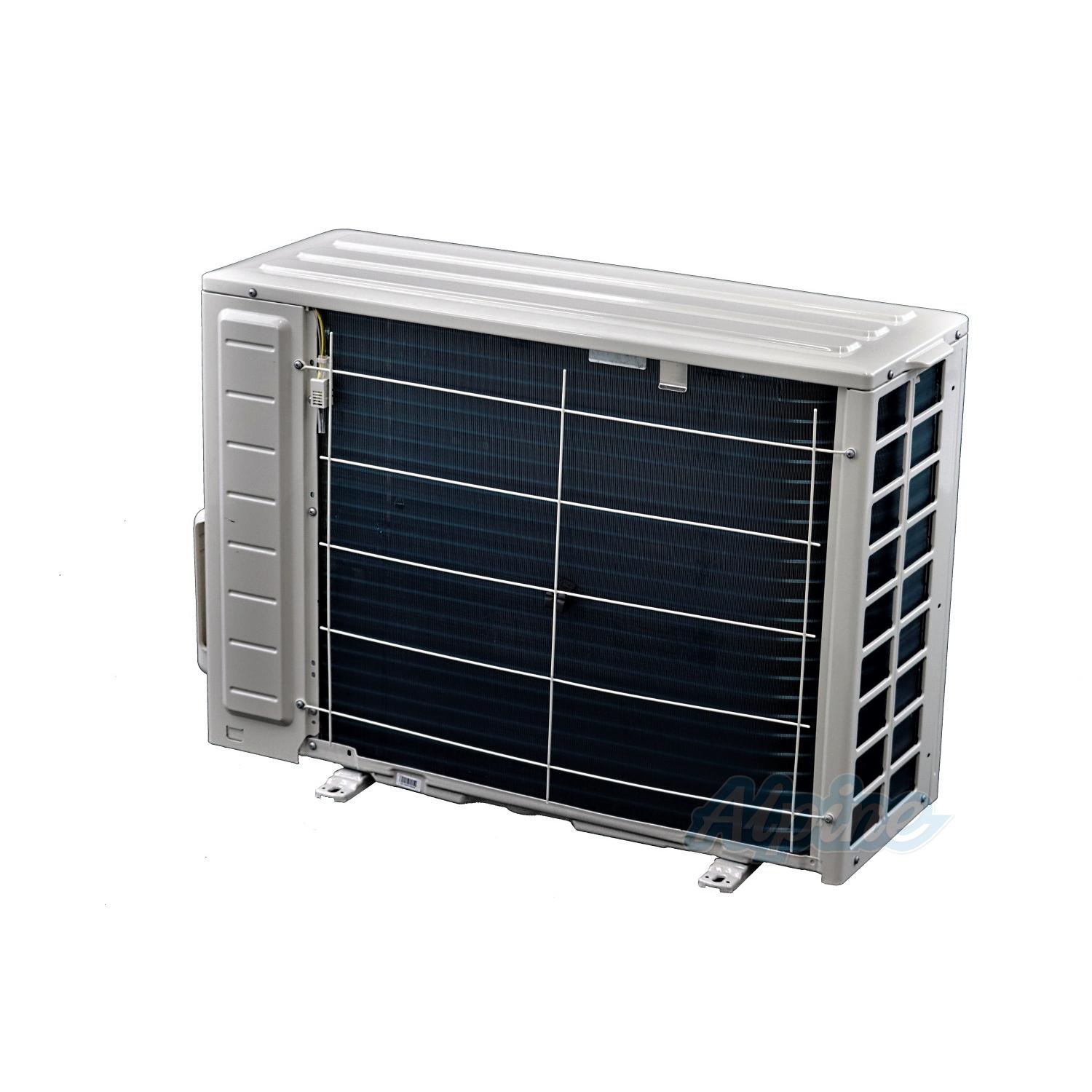

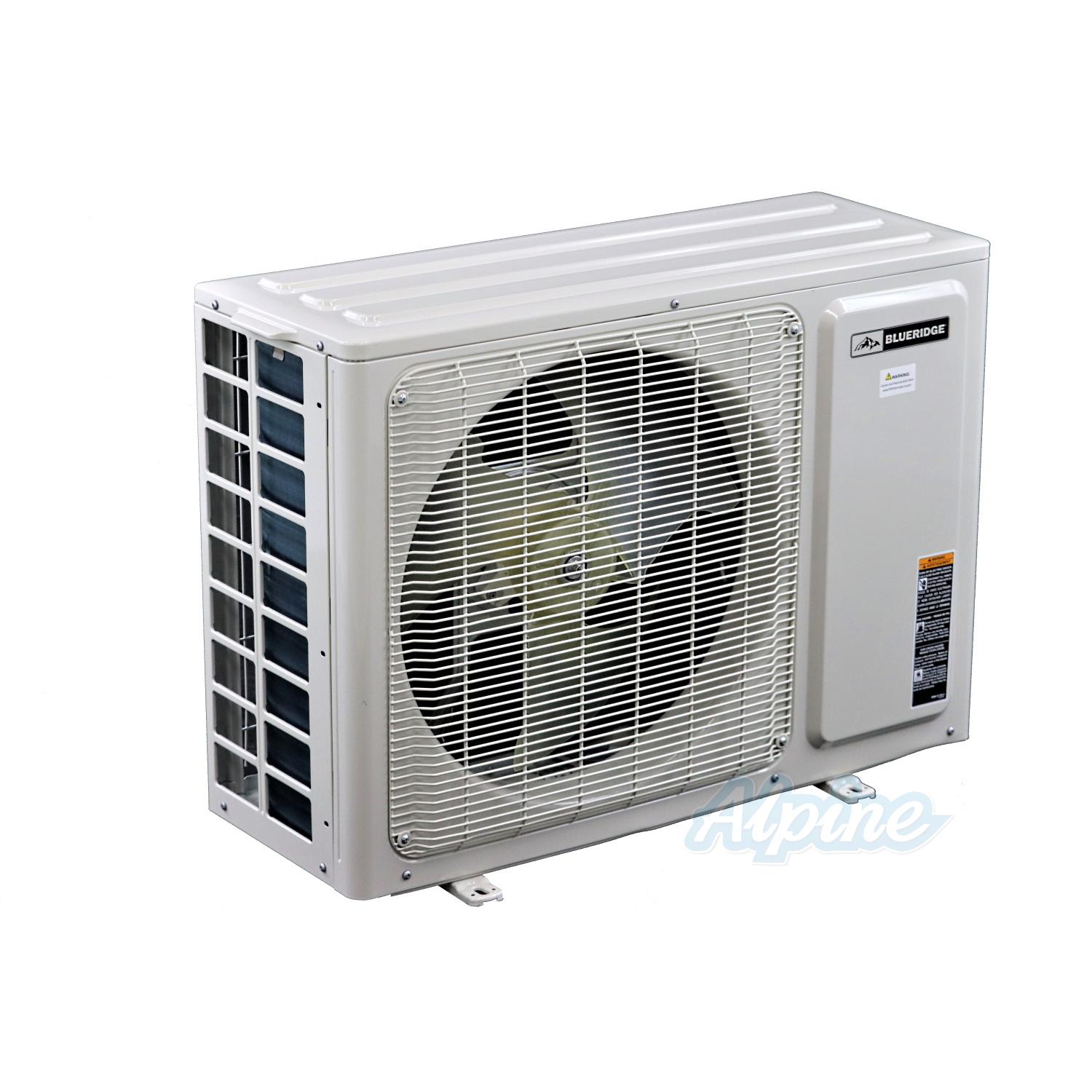

Outdoor Condenser Size, W x H x D
38.6 x 31.1 x 16.8 Inches
Indoor Air Handler Weight
43 Lbs
Outdoor Condenser Weight
158.8 Lbs
Footprint Mounting Holes (W x D)
24 x 15.56 Inches
Warranty
Compressor Warranty
7 Years
Parts Warranty
5 Years
Certifications
AHRI#
205968031
Qualifies for Govt. Money
North US: Up to $2,000 / South US: Up to $2,000
Approved for US Region(s)
North / Southeast / Southwest
ENERGY STAR® ID
2415099
ENERGY STAR® Certified
Yes
