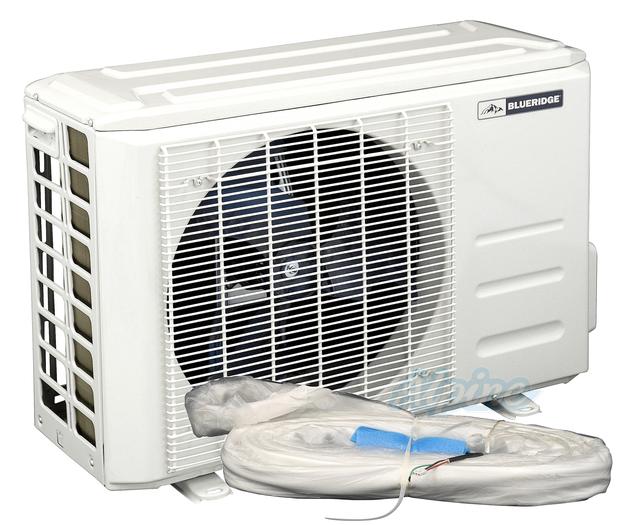

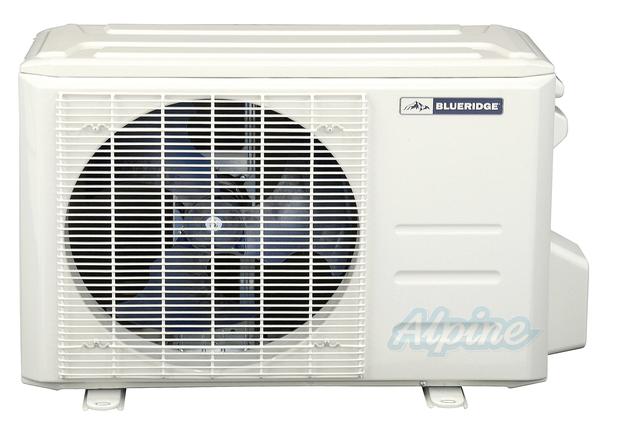

9,000 BTU 20 SEER2 Single Zone 115V Do It Yourself Ductless Mini Split Outdoor Condenser
9,000 BTU 20 SEER2 Single Zone 115V Do It Yourself Ductless Mini Split Outdoor Condenser
Model: Blueridge BMX9DIY20C
Actual product may vary from photos.
Model: Blueridge BMX9DIY20C
Provides heating and cooling
Whisper quiet indoors and outdoors
Sips electricity for low utility costs
Simple installation + friendly tech support available
$69900
Or as low as
Volume Discounts
Qty:
Express Pay Available
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Includes
highlights
*NOTE: This product is not a complete system, it is only one component. A complete system requires an indoor air handler, outdoor condenser and connecting line set. Please view complete systems here.
Heat or Cool Any Space,
Simply and Affordably
Simply and Affordably
Surprisingly
Affordable
Affordable
Incredibly
Quiet
Quiet
Great
Reviews
Reviews
Easy to
Install
Install
What is a Blueridge Ductless System?
It's a better way to heat and cool any space without the need for ductwork. Includes an outdoor heat pump condenser and 1 to 5 indoor air handlers. It's inexpensive to own and operate, easier to install and whisper quiet.
The Blueridge Do-It-Yourself eliminates the most technical, difficult steps from a normal HVAC installation.
No Soldering
No Refrigerant Handling
No Gauges
No Vacuum Pump
Normal HVAC Installation:
Usually, a technician will solder together copper tubing to create a sealed environment for the refrigerant chemicals to circulate. Then, they add nitrogen gas under high pressure to test for leaks. Next, they use a vacuum pump to evacuate all gasses from inside. Only then will they release the refrigerant that will allow the system to function, using gauges to make sure the volume and pressure are correct.
Blueridge Do-It-Yourself:
The Blueridge Do-It-Yourself system uses a different approach to get the same result. You get two separate units - the inside air handler and the outside condenser. The condenser already contains the correct amount of refrigerant. The copper lines included with your Blueridge DIY system, are already under vacuum. They have quick-connect fittings that maintain a vacuum until you’re ready to connect. After you’ve installed the indoor and outdoor units, you screw together the quick-connect fittings, then open the valves to release the refrigerant. It’s that easy.
Benefits
Quiet
Both the indoor and outdoor units operate so quietly you may not be aware they are running. You will just be aware that you are comfortable.
Affordable
The great value extends beyond the low purchase price of these units. You will be pleasantly surprised by how inexpensive they are to operate.
Efficient
Lower your utility bills with inverter technology, by using less electricity and no fossil fuels to accomplish your heating and cooling needs. This is intelligent equipment for a sustainable and comfortable lifestyle.
Versatility
Because there is no ductwork, this is a solution for all kinds of hard-to-fit applications. Any room or space can be transformed into a place for you and others to enjoy for years to come.
Simple Installation
You can install a Blueridge Do-It-Yourself mini split without any special training, tools, or equipment thanks to the pre-charged line set that comes included with your system. Simply follow a few easy installation steps to get your mini split working in no time.
Heat or Cool Any Type of Space:
Entire homes
Condos
Bonus rooms
Hotel rooms
Small businesses
Studios
Tiny homes
Coffee shops
Pool houses
Workshops
Offices
Man caves
Attics
Casitas
Retreat spaces
Sun rooms
Basements
Garages
Enclosed porches
Mother-in-law apartments
Many more applications
Videos
Blueridge Ductless Mini-Split AC Highlights
Blueridge Mini-Splits also Provide Heat!
Great customer reviews
Great Product!
Simon
Cleveland, GA
This is an outstanding product at a reasonable price.
Mike
Birmingham AL
Great mini-split system!
Marq
New Bern, NC
Installed easily and works very quietly.
Mike
Palm Desert, CA
Excellent! Works great.
Vic
Jefferson, GA
I would buy it again.
Jack
Johns Creek, GA
Installation
Step 1
Mount
Once you have received the product, mount the indoor and outdoor units to your desired resting location.
Step 2
Connect
Next, run the line sets, drain line, and electrical wires from the indoor unit(s) to the outdoor unit.
Step 3
Electrical
Run a 220 volt power circuit from your main breaker to the outdoor disconnect. Then run the electrical whip from the disconnect to the outdoor unit.
CEO and Founder
Andrew Arthurs
Alpine Home Air Products
Blueridge ductless mini-splits are exclusive to Alpine Home Air and are one of our most popular brands. These units are manufactured to our specifications by the largest, most reputable HVAC manufacturer in the world.
Our customers love them! We receive rave reviews because these products are solidly-engineered, thoroughly tested, reliable, and quiet. Our customers order Blueridge because of the incredible value and savings. Competing brands cost more for one reason: a long supply chain raising the price before the product hits your door. With Blueridge, we buy directly from the manufacturer and our customers save thousands of dollars. Long established throughout the rest of the world, mini-splits are quickly gaining popularity across America. The ease of installation, versatility, and savings cannot be matched. We know you will love our Blueridge mini-splits as much as we do. Please tell your friends and help us get the word out.
Blueridge BMX9DIY20C
Standard Features
Convenient remote control enables unique temperatures to be set per zone.
High-efficiency inverter technology allows for even cooling and heating while reducing energy costs.

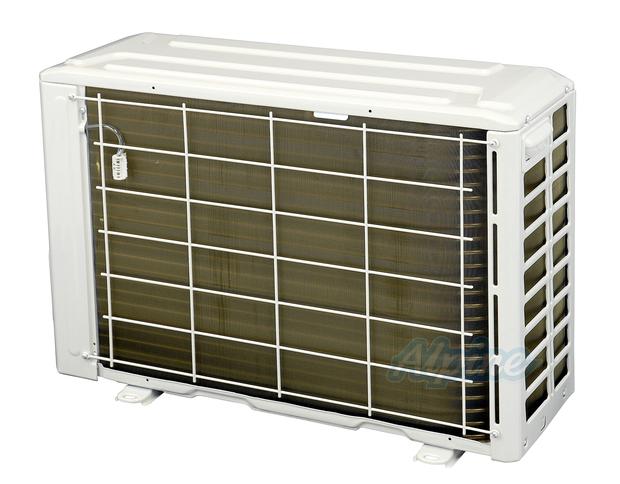

Gold fin condenser coil coating extends the life of your system by protecting it from corrosion.
Intelligent sleep function adjusts to your sleep pattern in order to maximize your comfort and reduce energy costs. User controls direct air flow.
Intelligent defrost reduces energy and defrost time by only defrosting when needed.
This System Includes*
9,000 BTU 20 SEER2 Single Zone 115V Do It Yourself Ductless Mini Split Outdoor Condenser
Also Consider
12,000 BTU (1 Ton) 22 SEER / 22.5 SEER2 - S3 SERIES - 115V Single Zone DIY Ductless Mini-Split Heat Pump System
Blueridge BMY12DIY22
In Stock
$
1,179
00
Specs

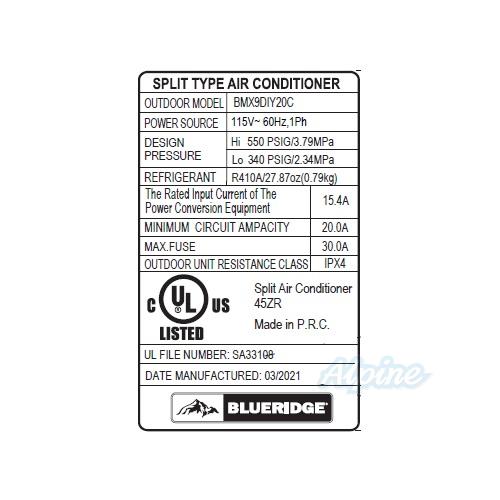

System Information
Zones
1
Factory Precharge
16 Feet
Single Vs. Multi-Zone
Single zone
Mini-Split Series
S3 Series: DIY
Product Type
Mini Split DIY
Component Type
Outdoor Unit
Refrigerant
R-410A
Efficiency
Coefficient of Performance (at 47 F)
3.14 COP
Coefficient of Performance at 5° F
1.75
Energy Efficiency Ratio
11.5 EER
Energy Efficiency Ratio 2
11.5 EER2
SEER
20 SEER
SEER2
20 SEER2
Heating Seasonal Performance Factor
10.3 HSPF
Heating Seasonal Performance Factor 2
9.4 HSPF2
Performance
Ambient Temperature Range (Cooling)
122 / 5 °F
Ambient Temperature Range (Heating)
5 / 75 °F
Low Ambient Cooling
Yes
Base Heating Capacity
10000 BTU
Total Cooling Capacity
.75 Ton(s)
Maximum Heating Capacity
10500 BTU
Base Cooling Capacity
9000 BTU
Maximum Cooling Capacity
10000 BTU
Compressor Type
Inverter
Sound Rating, Outdoor
55 Decibels

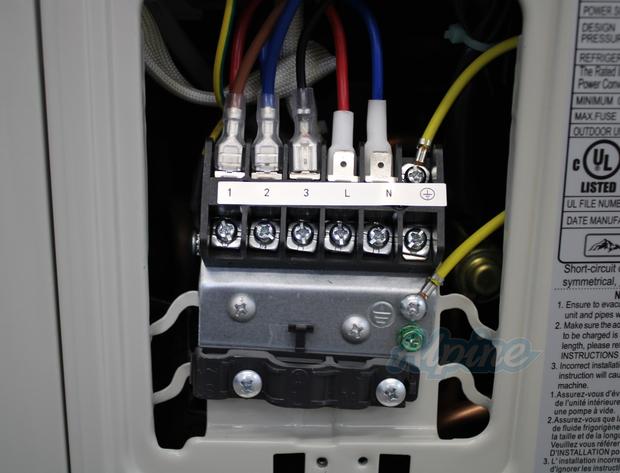

Electrical Information
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
20 Amps
Maximum Fuse/Breaker
30 Amps
Maximum Overcurrent Protection (Breaker)
30 Amps
Voltage
115 Volts
Line Set Information
Maximum Line Length per Zone
16 Feet
Maximum Height Difference
16 Feet
Included Pre-charged Line Set Length
16 Feet
Liquid Line Size (OD)
1/4 Inches
Suction Line Size (OD)
1/2 Inches

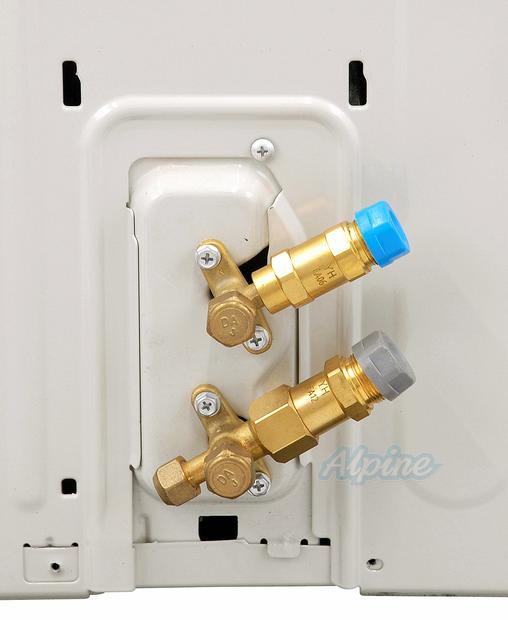

Line Set Connection Type
Quick Connect
Product Dimensions
Width
28 7/20 Inches
Depth
10 63/100 Inches
Height
19 49/100 Inches
Product Weight
54.45 lbs
Footprint Mounting Holes (W x D)
17.8 x 10 Inches
Warranty
Compressor Warranty
7 Years
Parts Warranty
5 Years
Certifications
AHRI#
212360181
ENERGY STAR® Certified
No
Accessories
Enjoy free shipping on any accessories purchased with the Blueridge BMX9DIY20C.
Electrical Disconnect
Alpine AG-DCT
Safety Non-Fused Electrical Disconnect
$2199
Electrical Whips
Alpine AG-WHP10
1/2 x 48 Inches, #10 Gauge Electrical Whip
$2499
Mini-Split Components
Blueridge BMX9DIY20WM
9,000 BTU Single Zone Do It Yourself Wall Mounted Ductless Air Handler
$30000
Mini-Split System Accessories
Blueridge BY-30
Adjustable Steel Wall Bracket for w/ 30 inch long arms Ductless Mini Splits, 660 lbs Capacity
$7999
Blueridge BY650
Blueridge Adjustable Wall Bracket w/ 25.5 inch long arms for Ductless Mini Splits, 440 lbs Capacity
$5999
Blueridge BGF-620
Slab Stand for Ductless Mini-Split Condensers, 660 lbs Weight Capacity
$13999
Blueridge BR1838
Blueridge BR1838 18x38x3 in. Air Conditioning Condenser Pad
$4999
Mersen STXH240S05
STXH240S05 Type 1 50kA 240/120V Split Phase Surge Protector
$9999
Rectorseal 87743
Slab Stand for Ductless Mini-Split Condensers, 176 lbs Weight Capacity
$16999
Outdoor Line Set Covers
Blueridge BGG130
Blueridge Line Set Cover Kit BGG130
$7999
DiversiTech 230-EIN3
90° Outside Elbow for Diversitech 3" SpeediChannel™ Line Set Covers
$1599
DiversiTech 230-CP3
Coupling for Diversitech 3" SpeediChannel™ Line Set Covers
$999
DiversiTech 230-D3 1M
39" Long, 3" SpeediChannel™ Line Set Cover for DiversiTech
$2999
DiversiTech 230-DC3
End Cap for Diversitech 3" SpeediChannel™ Line Set Covers
$1099
DiversiTech 230-DCLIP-10
(10-Pack) SpeediClips™ for DiversiTech Line Set Covers
$1099
DiversiTech 230-DE3
End Fitting for Diversitech 3" SpeediChannel™ Line Set Covers
$1099
DiversiTech 230-EB3
90° Inside Elbow for Diversitech 3" SpeediChannel™ Line Set Covers
$1599
DiversiTech 230-FB3
90° Flat Bend for Diversitech 3" SpeediChannel™ Line Set Covers
$1899
DiversiTech 230-FB453
45° Flat Bend for Diversitech 3" SpeediChannel™ Line Set Covers
$1799
DiversiTech 230-FJ3
Flex Joint for Diversitech 3" SpeediChannel™ Line Set Covers
$1599
DiversiTech 230-FR3
Flat Wall Escutcheon for Diversitech 3" SpeediChannel™ Line Set Covers
$899
DiversiTech 230-LFB3
90° Long Bend for Diversitech 3" SpeediChannel™ Line Set Covers
$2399
DiversiTech 230-SF3
3" Soffit Fitting for DiversiTech SpeediChannel™ Line Set Covers
$2599
DiversiTech 230-WC3
Wall Connection Piece for Diversitech 3" SpeediChannel™ Line Set Covers
$2599
DiversiTech 230-WR3
Non-Flat Wall Escutcheon for Diversitech 3" SpeediChannel™ Line Set Covers
$1099
Documents
- Blueridge DIY Minisplit Service Manual(PDF, 12.5 MB)
- Blueridge BMX9DIY20 AHRI Certificate 212360181(PDF, 111 KB)
- Blueridge Ductless Mini-Split Warranty(PDF, 180 KB)
- Blueridge DIY Install and User Manual 5/29/2024(PDF, 3.76 MB)
