80,000 BTU Furnace, 96% Efficiency, Single-Stage Burner, 1600 CFM Multi-Speed Blower, Downflow/Horizontal Flow Application

80,000 BTU Furnace, 96% Efficiency, Single-Stage Burner, 1600 CFM Multi-Speed Blower, Downflow/Horizontal Flow Application

New Item!

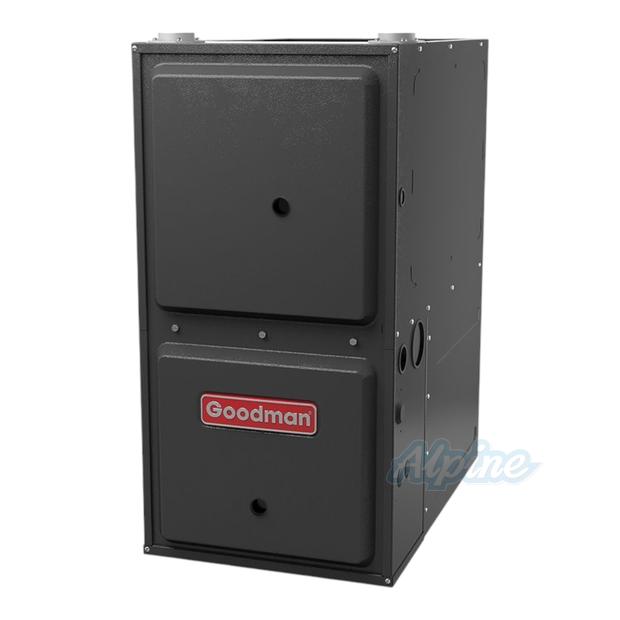

Model: Goodman GD9S960804CN

Actual product may vary from photos.

Model: Goodman GD9S960804CN

$2,13600

View Discounted Price In Cart

Or as low as

Qty:

Only 8 left in stock

Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights
view information

This is a Downflow / Horizontal unit. Learn about Downflow / Horizontal

view information

To use LP fuel, this unit requires an LP Conversion Kit. See Accessories

The Goodman® GD9S96 downflow application series of high-efficiency, single stage furnaces for R-32 or R-410A refrigerant systems are the perfect choice whether you are installing in a closet, alcove, or attic. The patented heavy-duty aluminized-steel tubular heat exchanger and durable silicon nitride ignition system combined with the heavy-gauge, reinforced, insulated steel cabinet and durable baked enamel finish ensure years of trouble-free performance. Manufactured by Goodman, you get one of the best warranties in the industry, all at an unbeatable price.

Important Safety Notice



Standard Features:

  • Operates as a natural gas furnace out of the box, and can be easily converted to a propane furnace with optional propane conversion kit (see Accessories tab).
  • Heavy-duty aluminized-steel tubular heat exchanger
  • Stainless steel secondary heat exchanger
  • Single-stage gas valve
  • Durable silicon nitride igniter
  • Quiet, single-speed draft induced blower
  • Self-diagnostic control board with constant memory fault code history output to LED
  • Multi-speed ECM blower motor with 4 speed settings for heat and 9 speed settings for cooling



Please Note: This furnace is California approved but does not comply with California's South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD) requirements (the Goodman furnace models that end in "U" do comply). This furnace is not for sale to the South Coast or San Joaquin Valley regions due to emissions laws. Please see available ultra high-efficiency Goodman furnaces which are compliant with all California laws for applications within those regions.



Cabinet Features:

  • Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
  • Convenient left or right connection for gas and electrical service
  • Cabinet air leakage (QLeak) less than 2%
  • Heavy-gauge steel cabinet with durable baked-enamel finish
  • Foil faced insulated heat exchanger
  • Airtight solid bottom or side return with easy cut tabs for effortless removal in bottom air-inlet applications



Outstanding Warranty Protection

This furnace is covered by what we believe to be one of the best warranties in the indoor home comfort industry. In addition to covering the heat exchanger with a Lifetime Limited Warranty to the original, registered homeowner, this furnace also has a 10-Year Limited Parts Warranty on all functional parts. For a full description of all warranties applicable to this product, please review the consumer brochure or product warranty in the Documents section.



Specs
System Information
Base Altitude Range
0-7000 ft.
Configuration
Downflow / Horizontal
Fuel Type
LP Capable (Kit Required) / Natural Gas
Refrigerant Compatibility
R-32 / R-410A
Efficiency
Efficiency (% AFUE)
96 %
Performance
Maximum Input BTU
80000 BTU
Maximum Heating Capacity
76880 BTU
Maximum CFM
1808 @ 0.5
Blower Cooling Capacity
2.5 / 3 / 3.5 / 4 Tons
Blower Type
High Efficiency Multi-Speed
Burner Stages
Single
Electrical Information
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
13.7 Amps
Maximum Overcurrent Protection (Breaker)
20 Amps
Voltage
115 Volts
Product Dimensions
Width
21 Inches
Depth
28 3/4 Inches
Height
34 1/2 Inches
Cabinet/Chassis Size
C
Product Weight
141 lbs
Shipping Weight
141 lbs
Important Measurements
Vent Connection
2 Inches
Supply Air Opening Size
17.5 x 20.125 Inches
Return Air Opening Size
19.5 x 18.25 inches
Flue Pipe Diameter
2 or 3
Warranty
Heat Exchanger Warranty
Lifetime w/ online registration
Unit Replacement Warranty
With online registration 10 Years
Parts Warranty
With Online Registration 10 Years
Certifications
California Only
No
California Approved Furnace
Yes
Ultra-Low NOx
No
Qualifies for Govt. Money
No
ENERGY STAR® ID
3629417
Emission Standard
Low NOx
ENERGY STAR® Certified
Yes
Accessories
