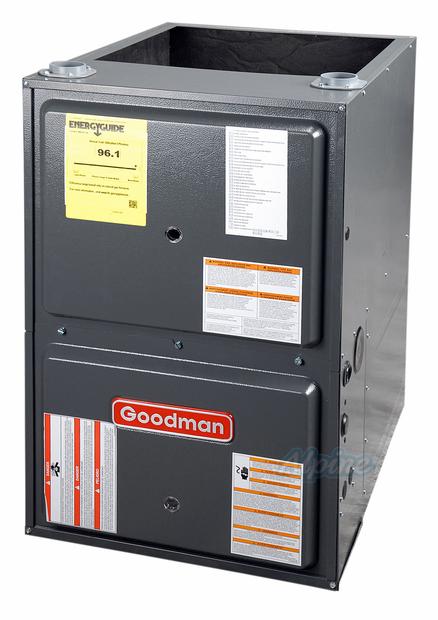

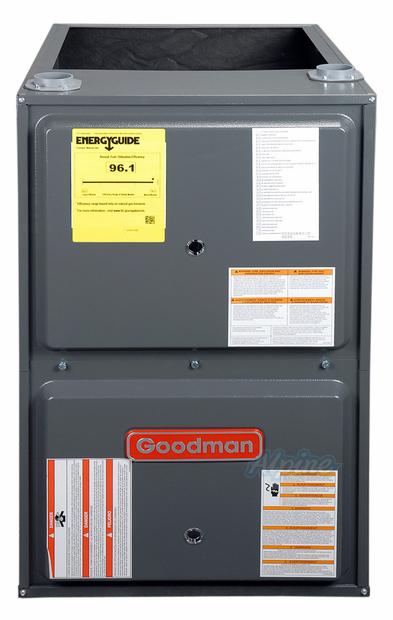

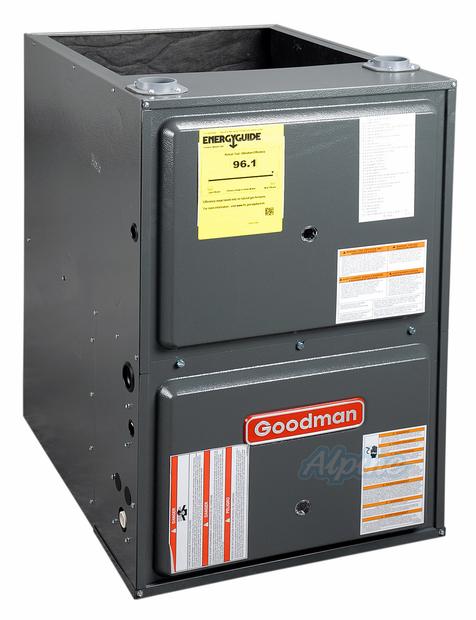

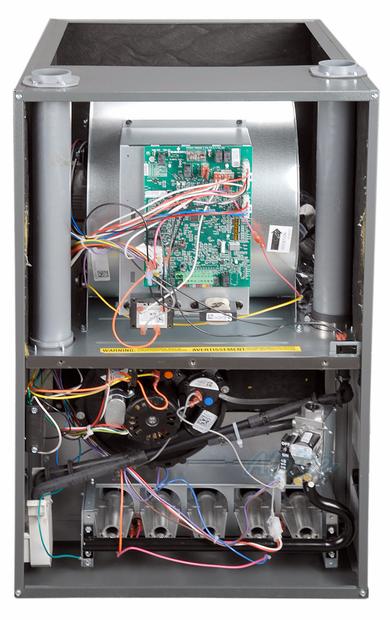

60,000 BTU Furnace, 96% Efficiency, 2-Stage Burner, 1,200 CFM Variable Speed Blower, Downflow/Horizontal Flow Application

60,000 BTU Furnace, 96% Efficiency, 2-Stage Burner, 1,200 CFM Variable Speed Blower, Downflow/Horizontal Flow Application

Model: Goodman GCVC960603BN

highlights
view information

This is a Downflow / Horizontal unit. Learn about Downflow / Horizontal

view information

To use LP fuel, this unit requires an LP Conversion Kit. See Accessories

This is a ComfortBridgeTM Model, and will require a smartphone and the CoolCloud HVAC app for setup.



Search CoolCloud HVAC on the Apple App Store (iPhone) or the Google Play Store (Android).



What is ComfortBridgeTM technology?
Revolutionary ComfortBridge technology is factory-installed into select Goodman brand gas furnaces and air handlers to ensure that the entire system operates at peak, energy-efficient performance.



How does ComfortBridgeTM Technology benefit you?
The ComfortBridge technology smart home algorithm gathers HVAC system performance data and uses it to automatically make adjustments that may minimize the amount of energy used to heat or cool your home. ComfortBridgeTM is compatible with a wide variety of standard or smart home thermostats.


Features:

  • Aluminized Steel Tubular Primary Heat Exchanger – Distinctive tubular aluminized steel construction formed using wrinkle-bend technology results in an extremely durable heat exchanger. Paired with a stainless steel secondary heat exchanger, this combination provides reliability, durability and efficiency.

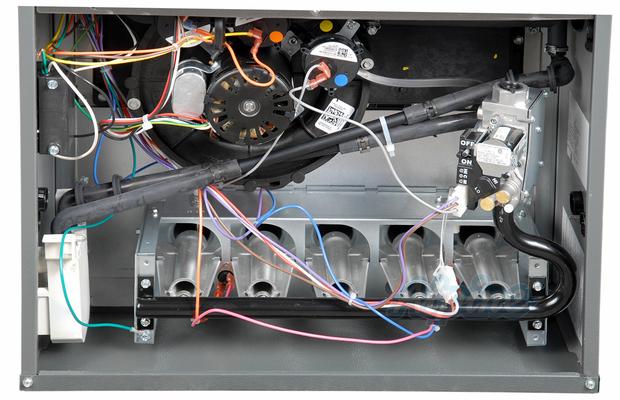

  • Two-Stage Gas Valve – Reduces energy needed during moderate demand to deliver outstanding comfort and efficiency as compared to single-stage gas valves.
  • Durable Silicon Nitride Igniter – Eliminates the need for an energy-wasting pilot light.
  • Quiet, Two-Stage, Induced-Draft Blower – Provides precise control and enhanced energy-efficient performance as compared to a natural draft furnace.
  • Efficient and Quiet Variable-Speed ECM Circulator Motor – Provides quiet system startup and shutdown with highly efficient performance.

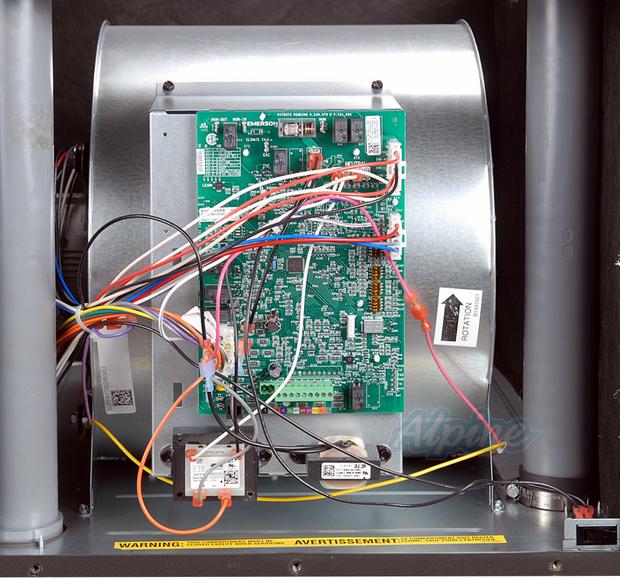

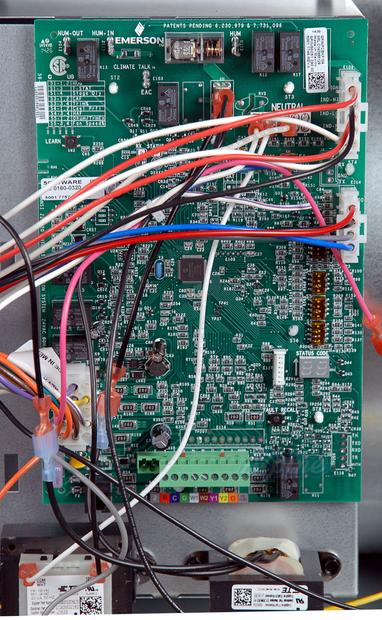

  • Self-Diagnostic Control Board – Continuously monitors the system for consistent, reliable operation, stores last diagnostic codes in memory; and indicates condition through a 7-segment display for quick troubleshooting.
  • Thermally-Insulated Cabinet – The fully insulated cabinet means air leakage of less than 2% to maximize the heat transfer efficiency and lower blower noise.
  • ComfortBridge™ Technology – ComfortBridge off-the-wall communicating technology constantly monitors the performance of a high-efficiency heating and cooling system. As ComfortBridge technology gathers data, it uses it to make automatic adjustments; this technology uses the minimum amount of energy required to create consistent and comfortable indoor heating and cooling. Rather than installing the communications technology circuit board in the thermostat (which is connected to an inside wall in a home), the ComfortBridge circuit board is securely installed in the indoor unit of the energy-efficient heating and cooling system. ComfortBridge technology works with any single-stage thermostat to help create customized indoor comfort specifically for you and your family.



Furnace accessory kit

For your convenience, we asked our HVAC technicians to develop a kit of commonly needed furnace installation supplies. Consider adding Alpine Home Air Products Furnace Installation Supplies Package to your cart to have everything you need to install your Goodman Furnace!!











Outstanding Warranty Protection

This furnace is covered by what we believe to be one of the best warranties in the indoor home comfort industry. We cover the heat exchanger with a Lifetime Limited Warranty to the original, registered homeowner; in addition, if the heat exchanger fails during the first 10 years of ownership, we will replace the entire unit for as long as you own your home. This furnace also has a 10-Year Limited Parts Warranty on all functional parts. For a full description of all warranties applicable to this product, please review the consumer brochure or product warranty in the Documents section.

Specs
System Information
view information
Base Altitude Range
0-7000 ft.
view information
Configuration
Downflow / Horizontal
view information
Fuel Type
LP Capable (Kit Required) / Natural Gas
view information
Product Type
Gas Furnace
Efficiency
view information
Efficiency (% AFUE)
96 %
Performance
view information
Maximum Input BTU
60000 BTU
view information
Maximum Heating Capacity
57600 BTU
view information
Minimum Input BTU
42000 BTU
view information
Minimum Output BTU
40320 BTU
view information
Maximum CFM
1200 @ 0.5
view information
Blower Cooling Capacity
1.5 / 2 / 2.5 / 3 Tons
view information
Blower Type
Variable Speed
view information
Burner Stages
Two
Electrical Information
view information
Frequency
60 Hz
view information
Voltage Phase
1
view information
Maximum Overcurrent Protection (Breaker)
20 Amps
view information
Voltage
115 Volts
Product Dimensions
view information
Width
17 1/2 Inches
view information
Depth
28 3/4 Inches
view information
Height
34 1/2 Inches
view information
Cabinet/Chassis Size
B
Product Weight
119 lbs
Shipping Weight
119 lbs
Important Measurements
view information
Vent Connection
2 Inches
view information
Supply Air Opening Size
20 1/8 x 14 5/8 Inches
view information
Return Air Opening Size
14 x 23 inches
view information
Flue Pipe Diameter
2 or 3
Warranty
view information
Heat Exchanger Warranty
Lifetime w/ online registration
view information
Unit Replacement Warranty
10 years with online registration Years
view information
Parts Warranty
With Online Registration 10 Years
Certifications
view information
California Approved Furnace
Yes
view information
Ultra-Low NOx
No
view information
Qualifies for Govt. Money
No
view information
ENERGY STAR® ID
2313584
view information
Emission Standard
Low NOx
view information
ENERGY STAR® Certified
Yes
