Low NOx Emission 80,000 BTU Furnace, 80% Efficiency, 2-Stage Burner, 1,850 CFM Variable Speed Blower, Downflow/Horizontal Flow Application

Low NOx Emission 80,000 BTU Furnace, 80% Efficiency, 2-Stage Burner, 1,850 CFM Variable Speed Blower, Downflow/Horizontal Flow Application

New Item!

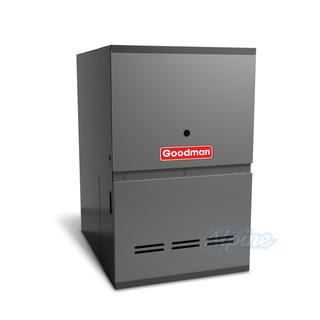

Model: Goodman GCVC80805CX

highlights
view information

This is a Downflow / Horizontal unit. Learn about Downflow / Horizontal

view information

To use LP fuel, this unit requires an LP Conversion Kit. See Accessories

The Goodman brand GCVC8 two-stage, variable-speed, downflow/horizontal flow gas furnace provides exceptional indoor comfort and quiet operation. With their two-stage gas valves and variable-speed circulator blowers, these furnaces provide comfort all season long.

If you want what we consider the best 80% AFUE gas furnace the Goodman® brand offers, but don’t need the efficiency provided by a 95% furnace, install this furnace and enjoy the energy and money savings year after year. This gas furnace has an AFUE rating of 80%, which means that 80 cents of every $1.00 of heating energy expense warms your home.

Please read this Important Safety Notice

Standard Features

  • Aluminized steel, dual-diameter tubular heat exchanger with Lifetime Limited Heat Exchanger Warranty with online registration for as long as the original registered homeowner owns their home
  • Two-stage gas valve operates on two-stage or single-stage thermostats
  • ComfortNet™ Communications System compatible
  • Efficient and quiet variable-speed circulator motor gently ramps up or down according to heating or cooling demand
  • Silicon Nitride igniter designed for long igniter life
  • Furnace control board with self-diagnostics, colorcoded low-voltage terminals, and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
  • Low constant fan speed allows homeowner to activate a very low speed, efficiently circulating air throughout the home. This setting costs as little as a 100-watt light bulb to operate.
  • Quiet, two-speed induced draft blower
  • Complies with California NOx emissions standards
  • Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
  • Designed for downflow/horizontal flow installation
  • Coil and furnace fit flush for most installations
Specs
System Information
view information
Configuration
Downflow / Horizontal
view information
Fuel Type
LP Capable (Kit Required) / Natural Gas
Efficiency
view information
Efficiency (% AFUE)
80 %
Performance
view information
Maximum Input BTU
80000 BTU
view information
Maximum Heating Capacity
64000 BTU
view information
Minimum Input BTU
56000 BTU
view information
Minimum Output BTU
44800 BTU
view information
Maximum CFM
1852 @ 0.5
view information
Blower Type
Variable Speed
view information
Burner Stages
Two
Electrical Information
view information
Frequency
60 Hz
view information
Voltage Phase
1
view information
Maximum Overcurrent Protection (Breaker)
15 Amps
view information
Voltage
120 Volts
Product Dimensions
view information
Width
21 Inches
view information
Depth
28 Inches
view information
Height
33 3/8 Inches
Product Weight
125 lbs
Shipping Weight
125 lbs
Important Measurements
view information
Flue Pipe Diameter
4
Warranty
view information
Heat Exchanger Warranty
Lifetime
view information
Unit Replacement Warranty
10 Years
view information
Parts Warranty
10 Years
Certifications
California Only
Yes
view information
California Approved Furnace
Yes
view information
Ultra-Low NOx
No
view information
Qualifies for Govt. Money
No
view information
ENERGY STAR® Certified
No
view information
Meets Canadian OEE Standards
No
