Blueridge 10U93 High Altitude Pressure Switch (7501-10,000 ft.)
Blueridge 10U93 High Altitude Pressure Switch (7501-10,000 ft.)
Model: Blueridge 10U93
Model: Blueridge 10U93

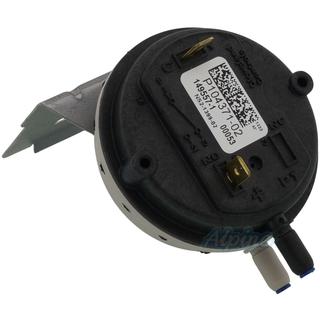

Blueridge 10U93 104371-01 Pres. Swch Kit 0.65"
This is a high altitude pressure switch that is designed to be used with the 70000, 90000, and 110000 input btu BG951 series of furnaces when installed between 7501-10000 feet above sea level.
If installing a 70000, 90000, or 110000 input btu BG951 series furnace using natural gas at 7501-10000 feet in altitude then use this pressure switch, and the high altitude natural gas orifice kit B51W01.
If installing a 70000, 90000, or 110000 input btu BG951 series furnace using propane at 7501-10000 feet in altitude then use this pressure switch, and the high altitude LP conversion kit BG11K45.
This is also designed to be used with the 90000 and 110000 input btu BG961 series of furnaces when installed between 7501-10000 feet above sea level.
If installing a 90000, or 110000 input btu BG961 series furnace using natural gas at 7501-10000 feet in altitude then use this pressure switch, and the high altitude natural gas orifice kit B51W01.
If installing a 90000, or 110000 input btu BG961 series furnace using propane at 7501-10000 feet in altitude then use this pressure switch, and the high altitude LP conversion kit BG11K45.
