7,000 BTU (0.6 Ton) Cooling, 10,900 BTU Heating, 13.1 EER Heat Pump PTAC, 3.5kW Heat Strip, R-410A Refrigerant, 208/230V
7,000 BTU (0.6 Ton) Cooling, 10,900 BTU Heating, 13.1 EER Heat Pump PTAC, 3.5kW Heat Strip, R-410A Refrigerant, 208/230V
Model: Blueridge BP07ANR (Item No. 717564)
Sale
Actual product may vary from photos.
Model: Blueridge BP07ANR (Item No. 717564)
Now $70000
Was: $779.00
Savings: $79.00
Or as low as
Qty:
Express Pay Available
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Services
- Pro Installation (Learn More)
highlights

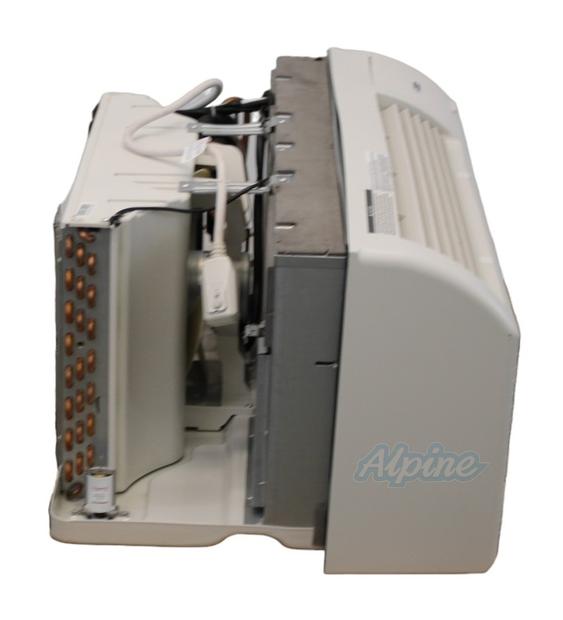

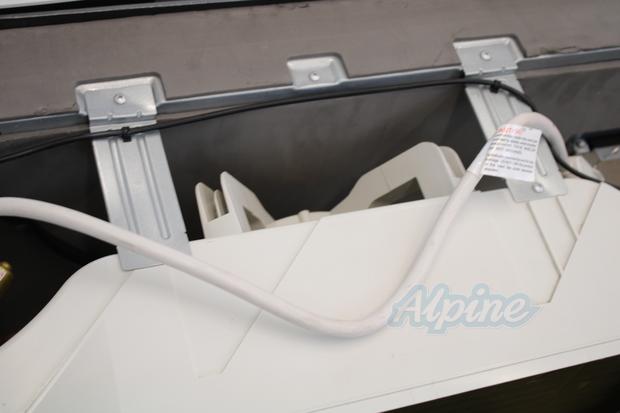

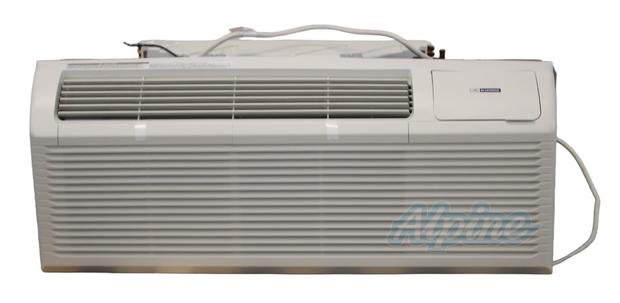

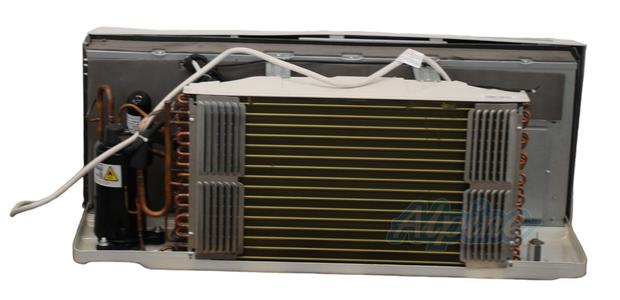

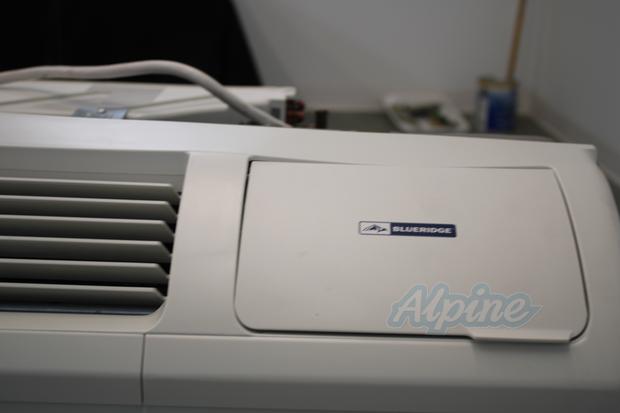

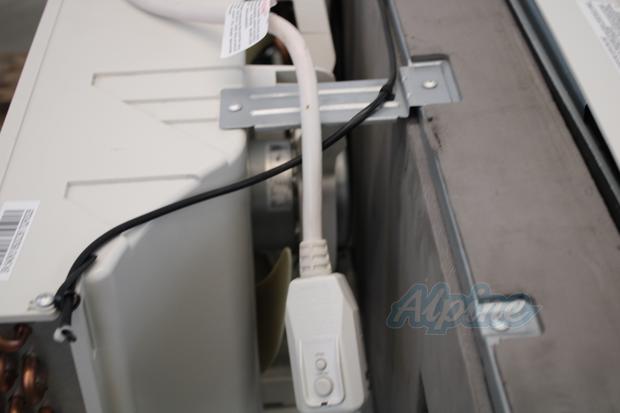

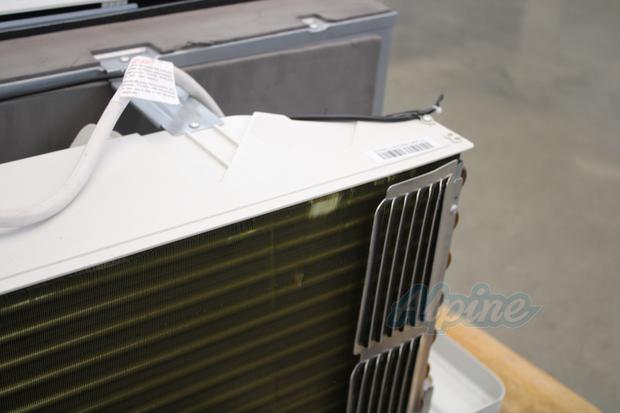

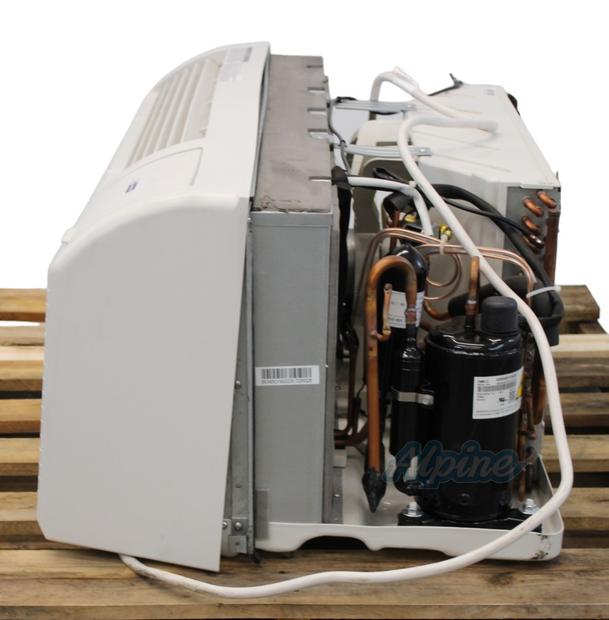

This Blueridge 7,000 BTU, 10,900 BTU Heating, 13.1 EER 3.5kW R-410A AC Heat Pump PTAC Unit, 208/230V has some cosmetic damage incurred during shipping. The unit was tested and works with a little low compression. Has scratches and damage to top right front cover and a bent support bracket. For detailed photos please click 'See Additional Images' above. This Blueridge 7,000 BTU, 10,900 BTU Heating, 13.1 EER 3.5kW R-410A AC Heat Pump PTAC Unit, 208/230V meets the full manufacturer's specifications, comes with the full manufacturer's warranty, and includes Alpine's premium guarantee.
For product specs and photographs of product in its original condition, click here.
Questions on sizing? Use our Sizing Calculator or Contact our Product Specialists
<<kit_items>>
CALIFORNIA PURCHASERS: This PTAC unit is not approved for the state of California and cannot ship to California. Please consider this California-approved model instead.
*NOTE: Does not include all required components for installation. See required components below in the accessories section to complete your system.
Blueridge BP07ANR (Item No. 717564)
Great for Hotels
and Other Spaces
and Other Spaces
PTACs
Package terminal air conditioners also sometimes called PTHCs (package terminal heat pumps), most commonly seen in hotels, but have excellent applications as well in room additions, garages and other areas.
Surprisingly Affordable
Shortening the supply chain and cutting out the middleman allows us to provide you with brand name quality at the lowest possible price.
Heat Pump Technology
This energy efficient technology saves you money by using the outside temp to heat and cool your space.
Small and Compact
Unobtrusive and efficient, this 42" by 16" unit sits close against your wall with the back of the unit exposed to the outdoors.
Efficient
Customers give Blueridge PTAC units top ratings due to its attractive design, easy installation and exceptional value.
Check out reviews here!
Check out reviews here!
Cooling (BTUs)
Electric Heater Capacity (BTUs)
Heat Pump (BTUs)
Questions on Sizing?
Use our Sizing Calculator or contact our Product Specialists
Common Questions
Who makes Blueridge? I've never heard of them.
Blueridge products are made by one of the largest, most reputable HVAC equipment manufacturers in the world to Alpine Home Air's specifications, which is one of the reasons these products are so reliable.
Why are they so inexpensive
We buy direct from the manufacturer and cut out the middleman to reduce costs which means lower prices for you!
Do these systems heat and cool?
Yes! These units both heat and cool. Please see the Ambient Temperature Range on the specifications section below for the units' operating temperatures.
How much square footage does this unit cover?
The answer varies depending on your space. Try our easy sizing calculator, it's a great place to start. If you have more sizing questions, we would love to help! Call one of our product specialists at 888-764-6561.
Installation
View installation manual for complete instructions.
1
MountRough-in a 16 - 16.25 inch tall x 42 - 42.25 inch wide opening through the wall to the outside.
2
ConnectInstall the wall sleeve through the opening in the wall with a slight tilt towards the outside and secure the grille to the exterior of the wall sleeve.
3
ElectricalSecure the PTAC into the wall sleeve and plug it into a 220 volt 15, 20, or 30 amp outlet.
Customer Reviews
Blueridge BP07ANR (Item No. 717564)
Standard Features
Fresh Air Vent System
Provides up to 65 CFM of fresh outdoor air into the living space.
Ultimate Comfort Control
Connect your PTAC unit to a wall thermostat for ultimate comfort and
upgraded room appearance. This PTAC unit makes it easy to connect to wired wall
thermostats
Comfortouch Digital Control
Temperature Display and Touch Pad on Unit, Continuous Temperature Sensing,
Cooling Heating and Fan Modes, Electronic Temperature Limiting, Auto Restart and Random
Restart Delay, Freeze Protection, Emergency Heat, Remote Control Options.
Silencer System
Two speed indoor fan and AeroQuiet indoor blower wheel, provide quiet
and consistent airflow for maximum comfort.
Smartfan Comfort Control
Programmable constant fan operation and quiet fan start up and stops.
EZ-SERV
Ease of installation, service and maintenance - Easy troubleshooting
with LED onscreen displays and nine point diagnostic, self check/self correct options.
This System Includes*
7,000 BTU (0.6 Ton) Cooling, 10,900 BTU Heating, 13.1 EER Heat Pump PTAC, 3.5kW Heat Strip, R-410A Refrigerant, 208/230V
Specs
System Information
Equipment Type
PTAC
Refrigerant
R-410A
Features
Built-In Heater Coil
3.5 kW
Power Cord Included
Yes
Efficiency
Coefficient of Performance (at 47 F)
3.6 COP
Energy Efficiency Ratio
13.1 EER
Performance
Airflow Capacity
335 CFM
Total Cooling Capacity
0.6 Ton(s)
Base Cooling Capacity
7200 BTU
Nominal CFM
335
Heat Pump Heating BTUs
6200 BTUs
Electric Heater Capacity (BTUs)
10900 BTU
Compressor Type
Rotary
Electric Heater Size
3.5 kilowatts
Sound Rating, Indoor
49.2 / 51 Decibels
Electrical Information
Breaker Size
20 amps
Frequency
60 Hz
Voltage Phase
1
NEMA Plug
6 - 20P
Voltage
208 - 230 Volts
Product Dimensions
Power Cord Length
62 Inches
Width
42 1/100 Inches
Depth
20 47/50 Inches
Height
15 49/50 Inches
Product Weight
104.7 lbs
Shipping Weight
115.5 lbs
Important Measurements
Cut-Out Dimensions, W x H
42 x 16 inches
Warranty
Compressor Warranty
5 Years
Parts Warranty
1 Years
Certifications
AHRI#
211257117
California Approved PTAC
No
Accessories
Enjoy free shipping on any accessories purchased with the Blueridge BP07ANR (Item No. 717564).
Accessories for Hotel-Style Heating and Cooling Units (PTAC)
Blueridge BPAG
Aluminum Grille for PTAC Wall Sleeve 12120300A19965
$3999
Blueridge BPRC
Blueridge Midea PTAC Remote for BP Series Blueridge PTACs 17317000000222
$1999
Blueridge BPWS
Wall Sleeve for BLUERIDGE BP Series PTAC Units
$9999
Air Conditioning System Protectors
DiversiTech CGB-AER
Coil Guard - Aerosol, Blue
$3299
Tools
DiversiTech 358-20
Foam-Plus™ Foaming Condenser Coil Cleaner - 19 oz. Aerosol
$999
Documents
Blueridge PTAC Owners and Installation Manual(PDF, 8.54 MB)- Blueridge BP07A AHRI Certificate 211257117(PDF, 142 KB)
- BP07-15A Spec Sheet(PDF, 266 KB)
- BP07-15A Brochure(PDF, 729 KB)
- Blueridge PTAC Warranty(PDF, 286 KB)
- Blueridge PTAC Wall Sleeve Instructions(PDF, 5.24 MB)
- Wire Gauge Sizes(PDF, 40.9 KB)
