9,000 BTU (0.8 Ton) Cooling, 8,500 BTU Heating, 11.5 EER Heat Pump PTAC, 2.5 kW Heat Strip, R-410A Refrigerant, 208/230V

9,000 BTU (0.8 Ton) Cooling, 8,500 BTU Heating, 11.5 EER Heat Pump PTAC, 2.5 kW Heat Strip, R-410A Refrigerant, 208/230V

Model: Amana PTH093G25AXXX (Item No. 717721)

Sale
Actual product may vary from photos.

Model: Amana PTH093G25AXXX (Item No. 717721)

Now $96000

Was: $1,199.00

Savings: $239.00


Or as low as

Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

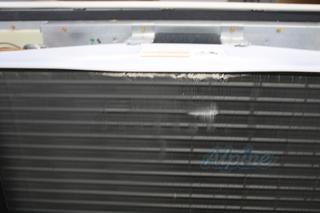

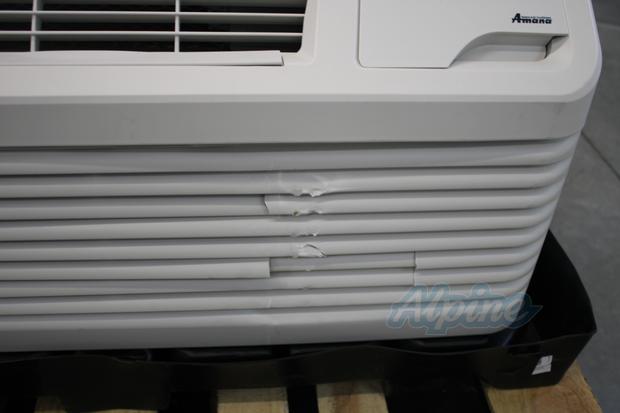

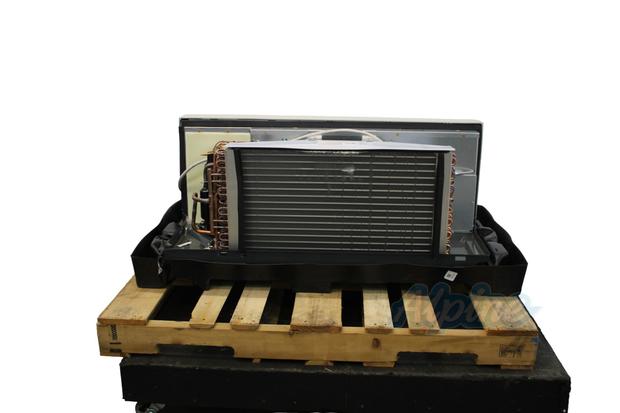

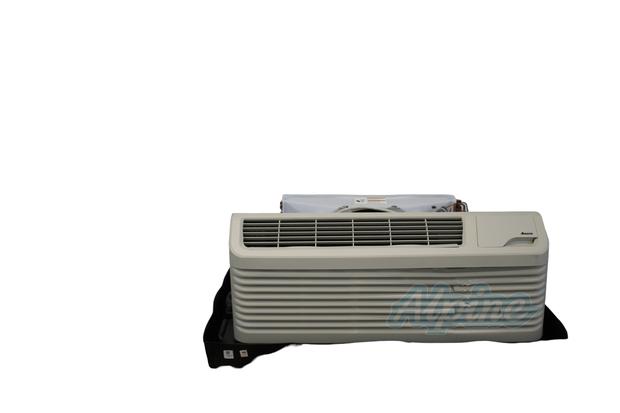

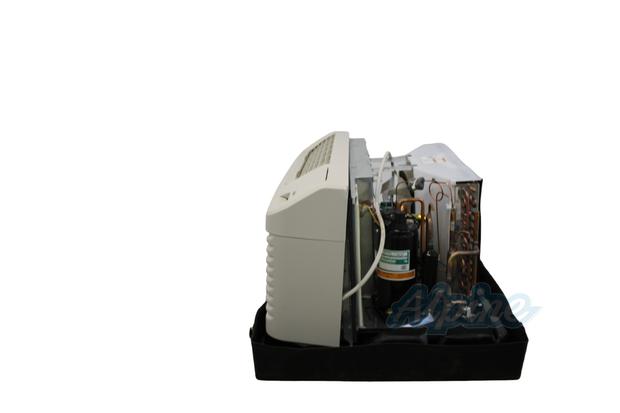

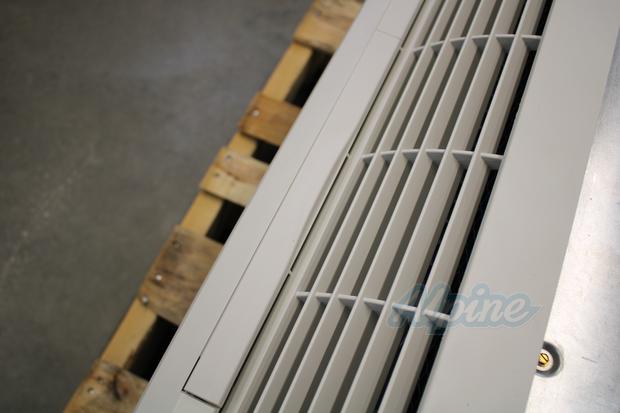

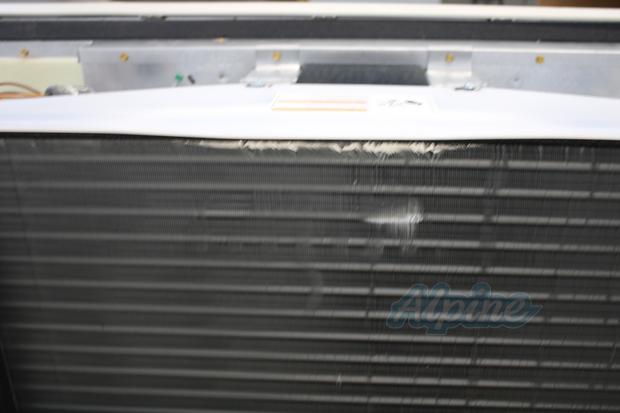

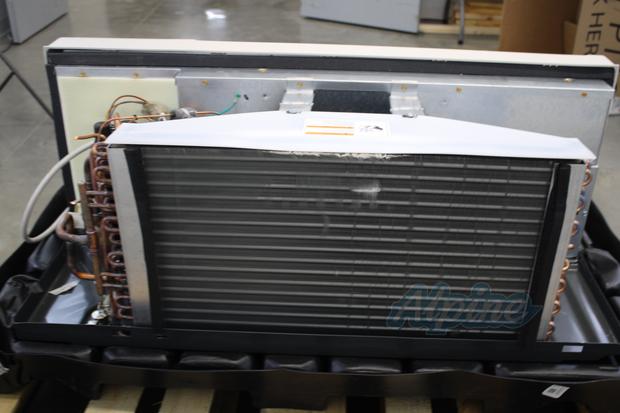

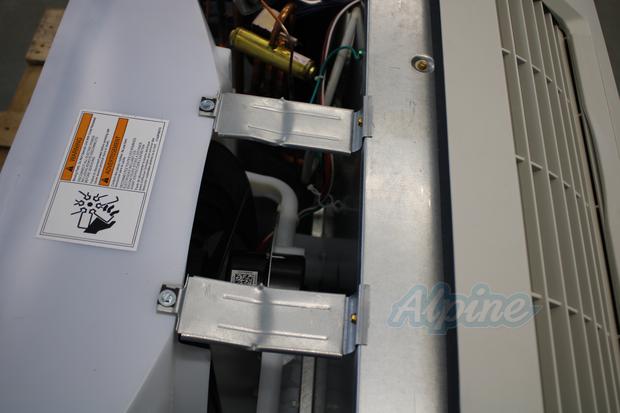

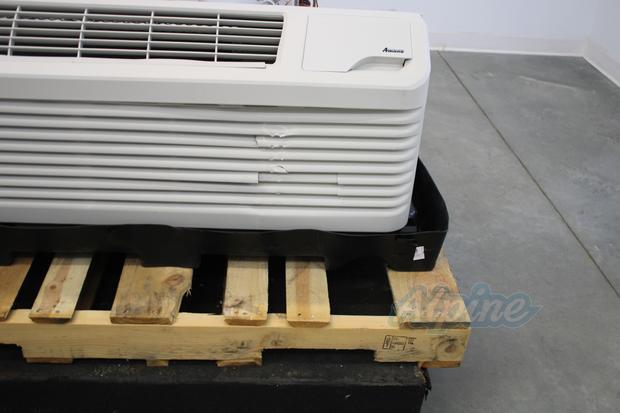

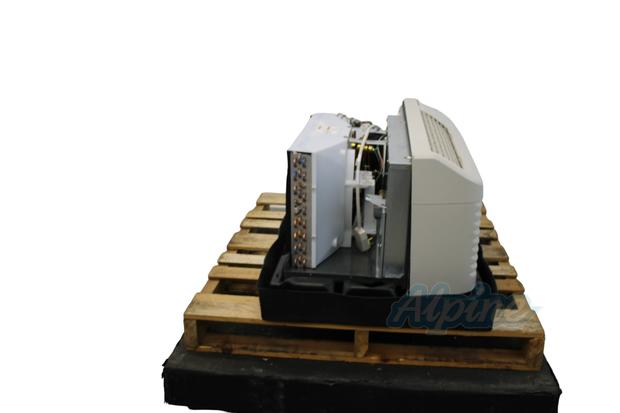

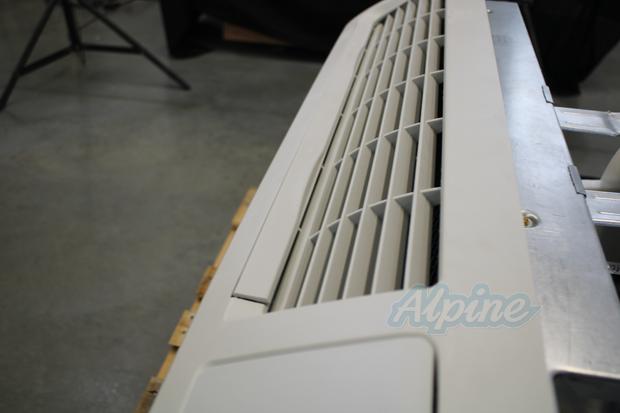

This Amana 9,000 BTU 11.5 EER PTH093G25AXXX Ptac Heat Pump 2.5kw R-410A,208/230V has some cosmetic damage incurred during shipping. The unit has some cosmetic damage to front cover broken panels and warp in a few places.  Support brackets are bent. For detailed photos please click 'See Additional Images' above. This Amana 9,000 BTU 11.5 EER PTH093G25AXXX Ptac Heat Pump 2.5kw R-410A,208/230V meets the full manufacturer's specifications, comes with the full manufacturer's warranty, and includes Alpine's premium guarantee.

For product specs and photographs of product in its original condition, click here.

Packaged Terminal Air Conditioners (PTAC), like those found in a typical hotel room, are an ideal way to heat and air condition offices, apartments, dormitories, and residential additions. The PTAC units slide into a standard, pre-existing 16” x 42” wall sleeve and include intuitively configured controls. New installations require a wall sleeve and grille which can be purchased as Accessories. These PTAC units are designed with efficiency, durability, and quiet operation in mind. They can be purchased in a variety of capacities to meet your sizing requirements. This PTAC unit is a heat pump with a back-up electric heat strip.

When purchasing a PTAC unit be sure to match the power plug to the wall recepticle. View this plug chart which will show you what wall recepticle is required for the PTAC unit of your choice.

Features

  • DigiSmart Control Board – Degree-by-degree temperature control and LED digital display make it easy to monitor the system settings.
  • Quiet Fan Operation – New 9-blade condenser fan, and reconfiguration of copper refrigerant tubing results in the quietest Amana PTAC ever.
  • Automatic Freeze Protection – If the unit senses the temperature below 40 degrees, the fan motor and electric heat strip are turned on.
  • 3-Minute Compressor Lockout – After the compressor cycles off, it will not restart for three minutes in order to prevent harm to the compressor.
  • Automatic 2nd Stage Electric Heat (Heat Pump Only) – If the room temperature falls to 4 degrees below the set point temperature, the heat pump compressor is shut off and the electric heat strip is turned on.
  • Rotary Compressor – Permanently mounted on rubber isolators to limit vibration noise.
Specs
System Information
Equipment Type
PTAC
view information
Refrigerant
R-410A
Features
view information
Built-In Heater Coil
2.5 kW
view information
Power Cord Included
Yes
Efficiency
view information
Coefficient of Performance (at 47 F)
3.4 COP
view information
Energy Efficiency Ratio
11.5 EER
Performance
view information
Airflow Capacity
310 / 282 CFM
view information
Total Cooling Capacity
0.75 Ton(s)
view information
Base Cooling Capacity
9000 BTU
view information
Nominal CFM
330
view information
Dehumidifying Capacity
2.2 Pints / Hour
view information
Heat Pump Heating BTUs
8300 BTUs
view information
Electric Heater Capacity (BTUs)
8500 BTU
view information
Compressor Type
Rotary
view information
Electric Heater Size
2.5 kilowatts
view information
Cooling Tonnage
0.8 Tons
Electrical Information
view information
Breaker Size
15 amps
view information
Reverse Heating Wattage
715 watts
view information
Frequency
60 Hz
view information
Voltage Phase
1
view information
Cooling Wattage
785 watts
view information
NEMA Plug
6 - 15P
view information
Voltage
208 - 230 Volts
Product Dimensions
view information
Power Cord Length
58 Inches
view information
Width
42 Inches
view information
Depth
21 1/2 Inches
view information
Height
16 1/16 Inches
Product Weight
112 lbs
Shipping Weight
127 lbs
Important Measurements
view information
Cut-Out Dimensions, W x H
42 1/4 x 16 1/4 inches
Warranty
view information
Parts Warranty
5 Years
view information
Sealed System Warranty
5 Years
view information
Labor Warranty
1 Years
Certifications
California Approved PTAC
Yes
