35,000 BTU, 1-Stage NG, Infrared Radiant Heater

35,000 BTU, 1-Stage NG, Infrared Radiant Heater

New Item!

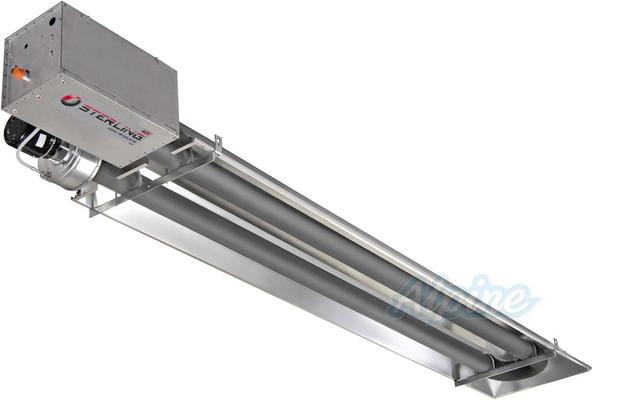

Model: Sterling RSG035N1

Actual product may vary from photos.

Model: Sterling RSG035N1

$44999

Or as low as

Volume Discounts
Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Services
highlights

This listing is not for a complete heater. Sterling part number 43468000 is required to complete this heater assembly.

The power of radiant heat, the Sterling infrared tube heater puts the warmth of the sun inside your building, and it reduces your fuel bills up to 50%! Its radiant heat warms people, concrete floors, and objects. The heat is absorbed and re-radiated to warm the entire area through convection. This, combined with the fact that it is powered by gas, adds up to one unbeatable combination. So, consider a very warm and efficient alternative to competitive heaters just blowing hot air. Consider the Sterling infrared tube heater.

General Features

  • Vacuum System - Products of combustion are pulled through the combustion chamber for greater safety. . . virtually eliminating the possibility of combustion gases leaking into the heated space.
  • Solid State Ignition System - Reliable electronic direct spark ignition system with 100% gas safety shut-off control and 30-second prepurge. . . safety and efficiency assurance.
  • U-Tube Design - Provides uniform emitter tube temperatures and energy distribution on the floor. . . unlike straight tube heaters which are always hotter at the burner end than at the exhaust end.
  • Warranty - 5-year limited combustion chamber warranty.
  • Other Features - Heavy-duty combustion chamber, aluminum reflectors with 97% reflectivity rating, diaphragm safety switch for proof of venting, and system indicator lights.

The Economical Alternative For Hard-To-Heat Spaces up to 5,000 Square Feet

  • Residential Garages
  • Vestibules
  • Entryways
  • Greenhouses
  • Enclosed Patios
  • Solariums
  • Workshops
  • Swimming Pools
  • Farm Buildings
  • Clubhouses
  • Small Businesses
  • Auto Garages
  • Warehouses
  • Print Shops
  • Machine Shops
  • Small Manufacturing Facilities
Specs
System Information
view information
Fuel Type
Natural Gas
Ignition Type
Direct Spark
view information
Combustion Type
Power Vented
view information
Product Type
Tools and Replacement Parts
Efficiency
view information
Efficiency Percentage (AFUE)
84.5 %
Performance
view information
Base Heating Capacity
35000 BTU
Effective Heating Capacity (BTUs)
29500
Electrical Information
view information
Frequency
60 Hz
view information
Voltage Phase
1
view information
Voltage
120 Volts
Product Dimensions
view information
Width
111 Inches
view information
Depth
18 1/2 Inches
view information
Height
10 1/2 Inches
Product Weight
88 lbs
Important Measurements
Minimum Ceiling Clearance to Combustibles
4 Inches
Minimum Floor Clearance to Combustibles
57 Inches
Minimum Side Clearance to Combustibles
12 Inches
Piping Connections - Gas
1/2 inches
view information
Orifice Size
.110 inches
view information
Flue Pipe Diameter
4
Warranty
Combustion Chamber Warranty
5 Years
Certifications
Certified for
Commercial / Industrial
