19,000 BTU (1.58 Ton) 16.5 SEER Ductless Mini-Split Dual Zone Heat Pump System 9WM+9WM
19,000 BTU (1.58 Ton) 16.5 SEER Ductless Mini-Split Dual Zone Heat Pump System 9WM+9WM
Model: Friedrich M18DYF
Friedrich Air multi-zone mini-split systems can be installed in a dual or tri-zone configuration. Featuring advanced inverter technology, Friedrich mini-split systems let you reach the desired temperature faster, maintain it more accurately, and reduce energy costs. The inverter technology allows each system to adjust capacity and cooling output to provide only the amount of cooling needed at a given time. For example, a 1.5 ton system will operate even more efficiently as a 1.25 ton system if that is all that is needed.
(Note: These heat pumps will not operate in heating mode when the outdoor temperature is below 14°F. The heating capacity at an outdoor temperature of 47°F is 11,000 BTU per zone, while the heating capacity at an outdoor temperature of 17°F is only 9,500 BTU per zone.)
Standard Features:
- Auto swing louvers (up / down)
- Continuous 'Air Sweep'
- Auto-restart after power interruptions
- Auto-shut flaps close when unit is off for a sleeker appearance
- Washable, reusable air filters
- Removable front grille
- Auto-changeover
- Low-ambient operation
- 24-hour timer and sleep timer
- Auto / cool / dry / fan / heat modes
- Four fan speeds: high / medium / low / quiet, plus auto-fan
- Remote control holder
- Unique transmitter codes to prevent unintentional interference with other units when using remote control

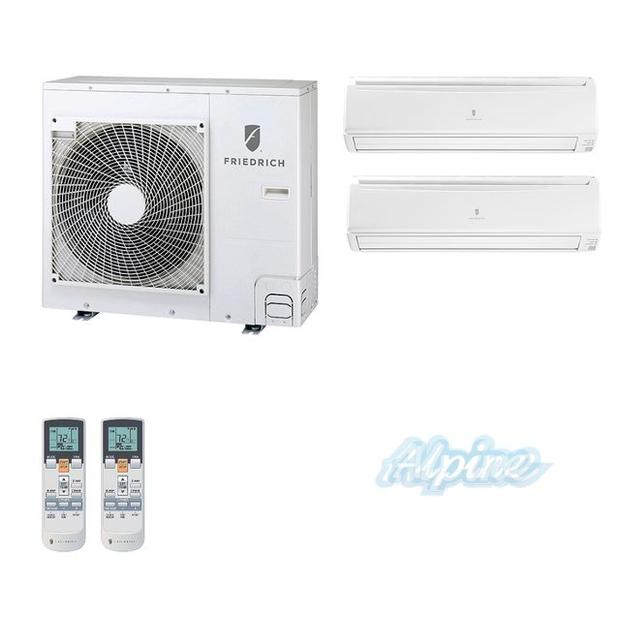

System Components:

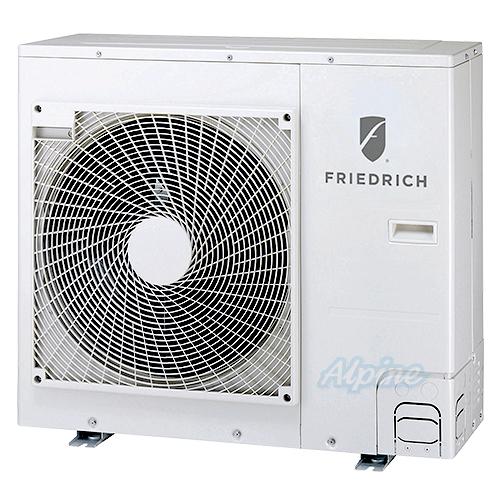

- 1 MR24DY3F 24,000 BTU Outdoor Heat Pump

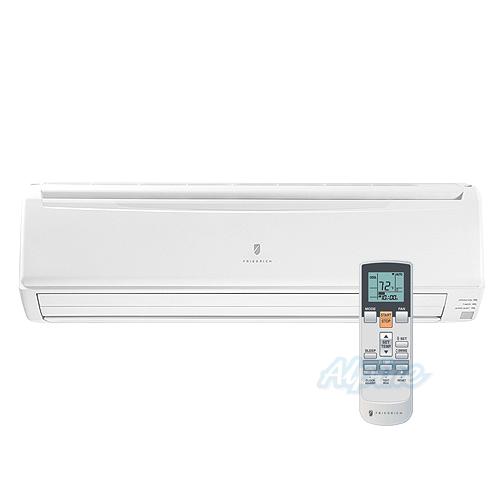

- 2 MW09Y3FM 9,500 BTU Indoor Air Handlers

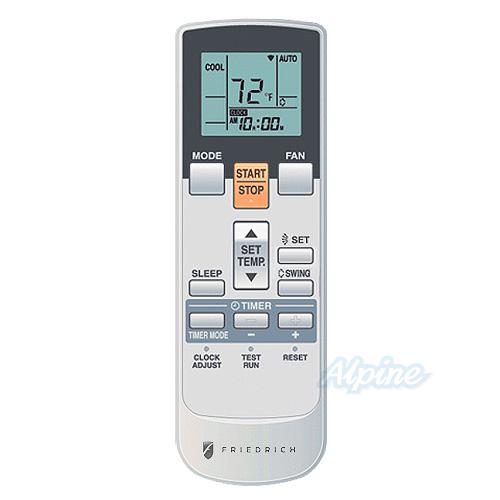

- 2 Remote Controls
Complete your system by selecting two line sets from the Accessories tab above. Line sets come in 15 foot, 35 foot, and 50 foot lengths.
Want to save money? Check out a similar unit we sell for a lot less!
Enjoy free shipping on any accessories purchased with the Friedrich M18DYF.
- Friedrich Ductless Split Heat Pump Manual(PDF, 757 KB)
- Friedrich Ductless Split Systems Brochure(PDF, 8.96 MB)
- Friedrich M18DYF Installation Manual(PDF, 983 KB)
- Wire Gauge Sizes(PDF, 40.9 KB)
