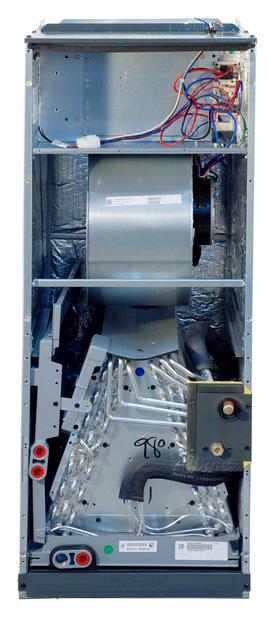

2 Ton Standard Multi-Positional Air Handler
2 Ton Standard Multi-Positional Air Handler
Model: Goodman ARUF25B14
highlights
The Goodman ARUF series is our biggest seller due to an unbeatable combination of high performance and low cost. The SmartFrame™ rust-resistant, fully insulated steel cabinet features a coil mounting track, allowing you to easily configure the unit for horizontal or vertical, upflow or downflow installations. The multi-speed blower is adjustable to your particular needs and has a time-delay to optimize comfort. See below for more features.
For Tips for Selecting Matched Components and Line Sets click here.
Standard Features
- Direct-drive, multi-speed motor allows air volume variation for heating and cooling applications

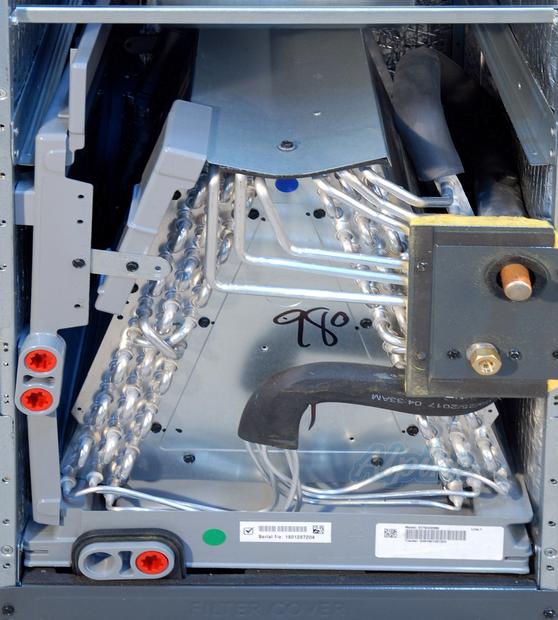

- All-Aluminum evaporator coil

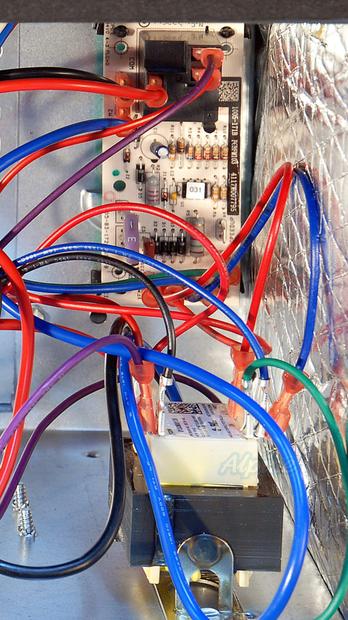

- Transformer & blower time-delay
- New SmartFrame™ cabinet construction
- Galvanized leather-grain embossed finish
- 21" cabinet depth for easy attic access
- Coil-mounting track for quick repositioning
- Glue-less cabinet insulation retention

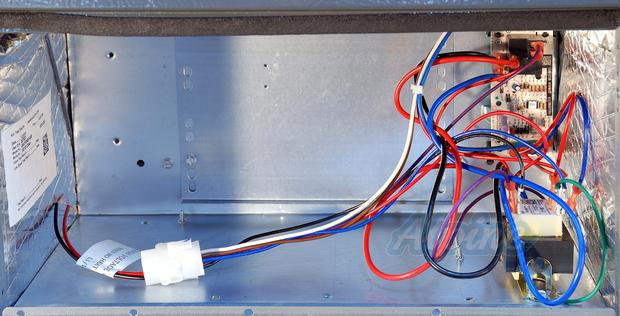

- Multiple electrical knockouts
- Suitable for horizontal, vertical, upflow, or downflow installations
- Improved condensate management
- Screw-less sides & back prevents condensation
- Three-hole condensate pan
- Tool-less filter access accommodates standard-size filters
- Factory-sealed cabinet achieves less than 2% leakage rate
- AHRI certified; ETL listed
Also Consider
Specs
System Information
Configuration
Downflow / Horizontal / Upflow
Fuel Type
Electricity
Requires Downflow Kit
Yes
TXV Required
No
Refrigerant
R-410A
Performance
Blower Cooling Capacity
2 Tons
Blower Type
Multi-Speed
Electric Heat Capabilities (Optional)
10 / 5 / 8 Kilowatts
Electrical Information
Frequency
60 Hz
Voltage Phase
1
Maximum Overcurrent Protection (Breaker)
15 Amps
Voltage
208 / 230 Volts
Line Set Information
Liquid Line Size (OD)
3/8 Inches
Suction Line Size (OD)
3/4 Inches
Product Dimensions
Width
17 1/2 Inches
Depth
21 Inches
Height
45 Inches
Cabinet/Chassis Size
B
Product Weight
100 lbs
Shipping Weight
100 lbs
Important Measurements
Orifice Size
0.051 inches
Supply Air Opening Size
16.4 x 11.3 Inches
Return Air Opening Size
14.2 x 19.5 inches
Warranty
Parts Warranty
With Online Registration 10 Years
