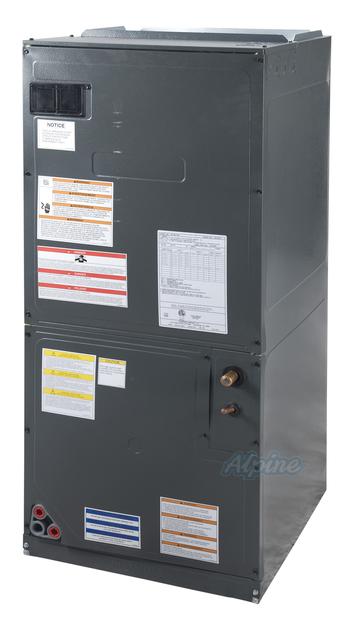

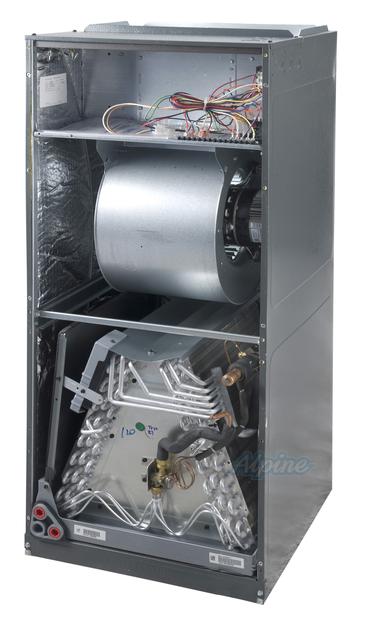

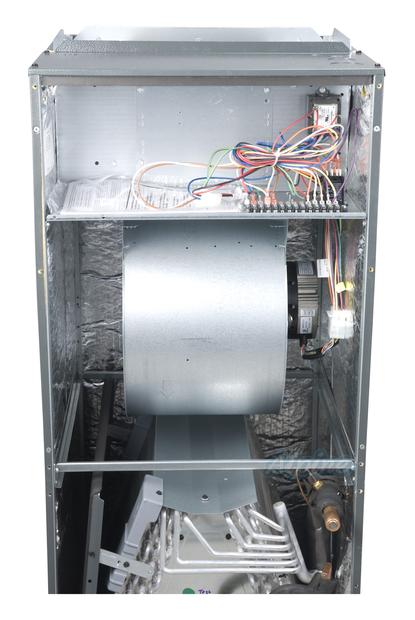

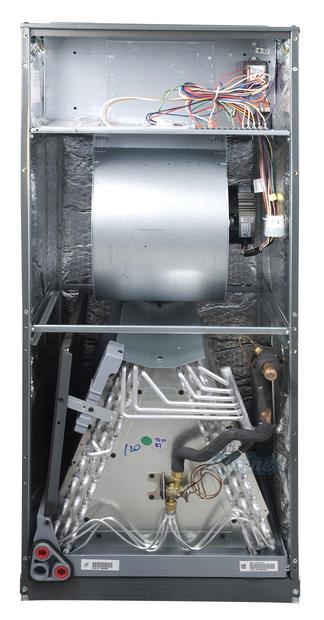

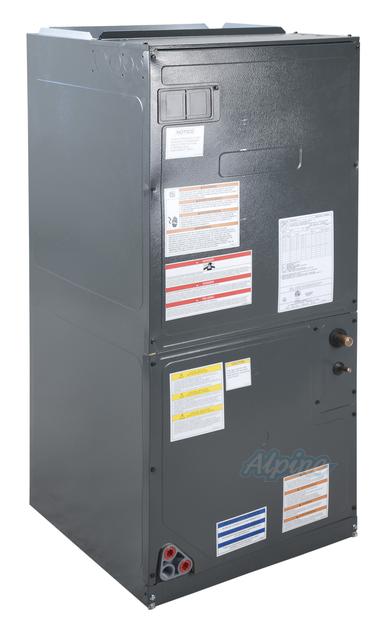

The Direct Comfort by Goodman DC-ASPT24B14 2 Ton Multi-Position Air Handler with EEM (Energy-Saving) Motor is suitable for use with R-410A refrigerant and may be installed in a variety of locations.  This air handler features a SmartFrame™ sub-structure that adds lateral stability, mounting locations for internal components, and additional insulation retention.

 For Tips for Selecting Matched Components and Line Sets click here.

Standard Features

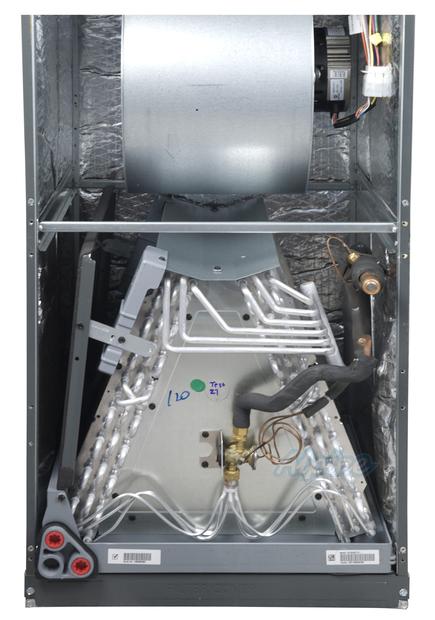

• All-aluminum evaporator coil
• Direct-drive, multi-speed ECM motor
• Internal factory-mounted TXV valve

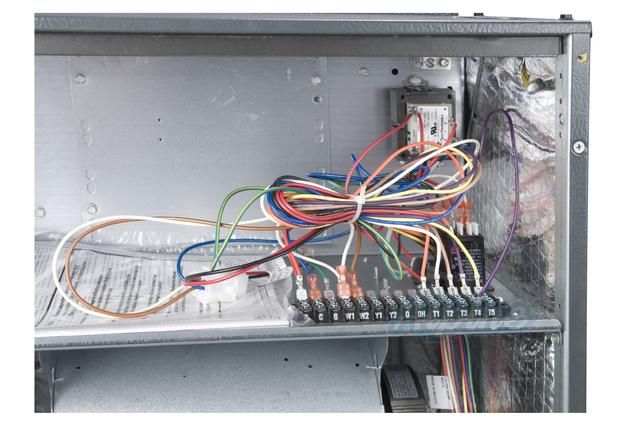

• Transformer and blower time-delay on all units
• Easy single-bulb UV light compatibility
• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
• AHRI Certified; ETL Listed

Cabinet Features

• New rigid SmartFrame™ cabinet
• 21 inch depth for easy attic access
• DecaBDE-free thermoplastic drain pan
• Galvanized leather grain-embossed finish
• Foil-faced insulation covers the internal blower case to reduce operating sound and cabinet condensation
• Glue-less cabinet insulation retention
• Screw-less sides & back prevents condensation
• Multi-position capability: upflow, downflow, horizontal or vertical
• Coil-mounting track for quick repositioning
• Tool-less filter access accommodates standard-size filters
• Multiple electrical knockouts
• Heavy-gauge bottom plate

If your air handler will be installed above a conditioned space, your local code may require a secondary drain pan. See Accessories for details.
