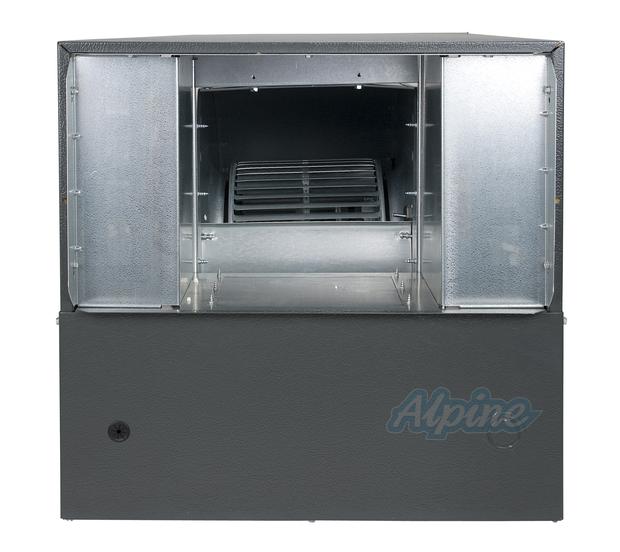

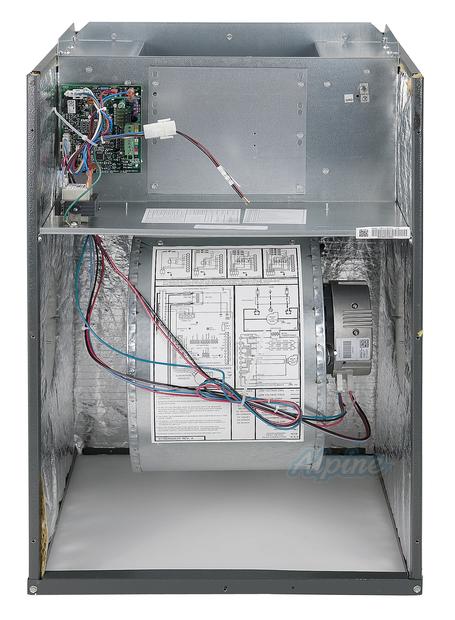

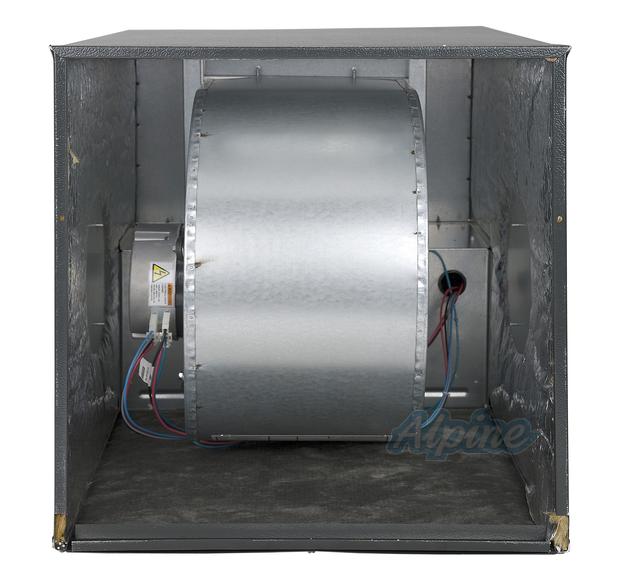

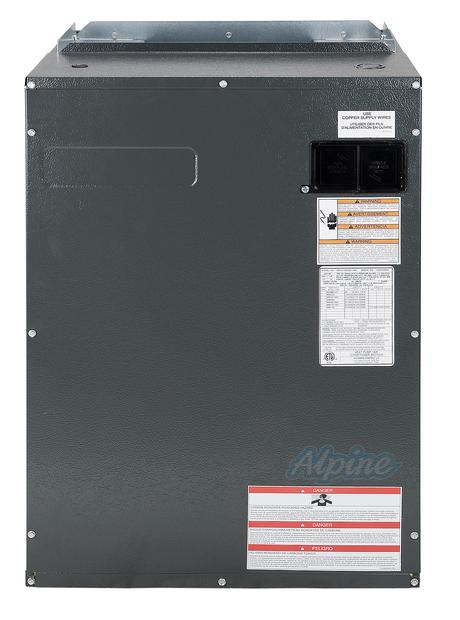

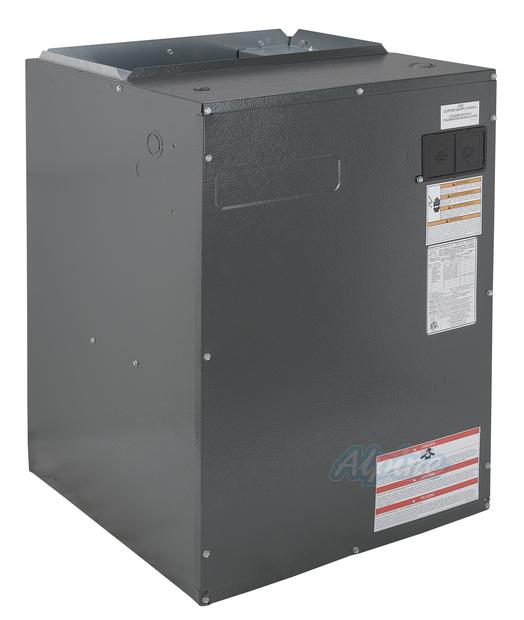

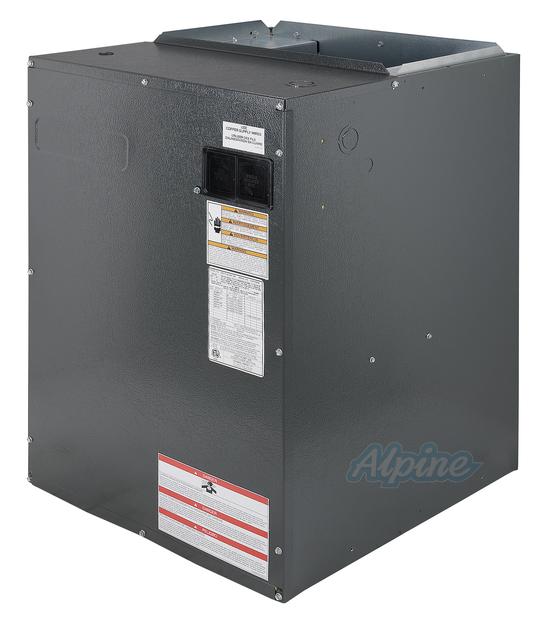

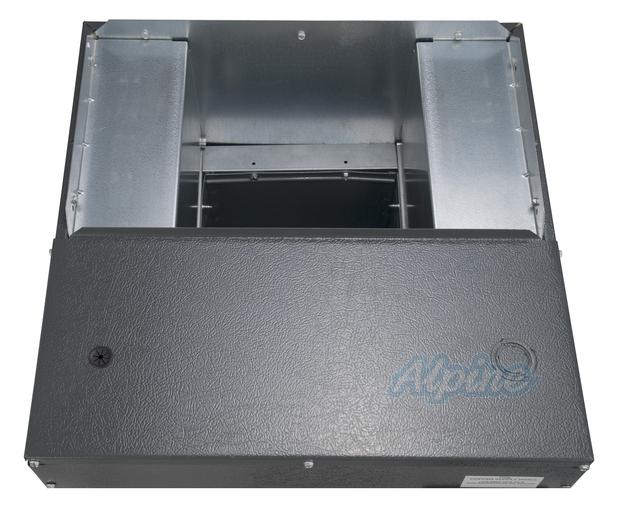

1.5 to 3 Ton, 17.5" Wide, Variable Speed Modular Blower w/ ComfortBridge Technology
1.5 to 3 Ton, 17.5" Wide, Variable Speed Modular Blower w/ ComfortBridge Technology
Model: Goodman MBVC1201AA-1
Actual product may vary from photos.
Model: Goodman MBVC1201AA-1
$87200
View Discounted Price In Cart
Or as low as
Qty:
Express Pay Available
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Services
- Pro Installation (Learn More)
highlights
The Goodman® brand MBVC modular blowers are tailor-made for exceptional energy efficiency. Now fully compatible with the ComfortBridge line of communicating equipment, these two-piece blowers increase both installation and application flexibility. Units can be matched with cased coils for upflow, downflow, and horizontal applications.
Standard Features
- Bluetooth Connectivity
- MBR is a multi-speed blower — motor speed is easily changed

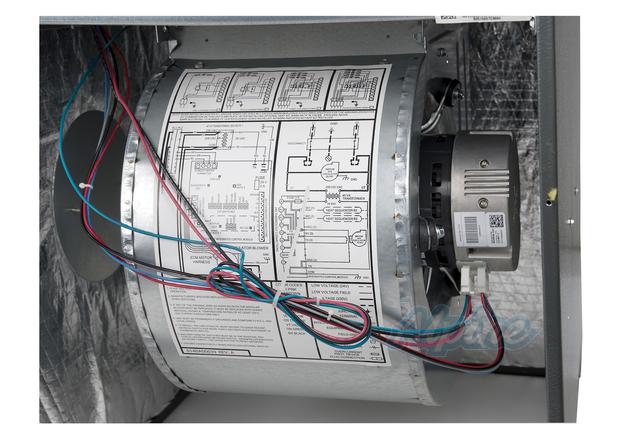

- MBVC has a variable-speed ECM™ blower motor
- MBVC is compatible with the ComfortBridge Communicating System family of products
- Cooling or heat pump applications: upflow, downflow, and horizontal applications

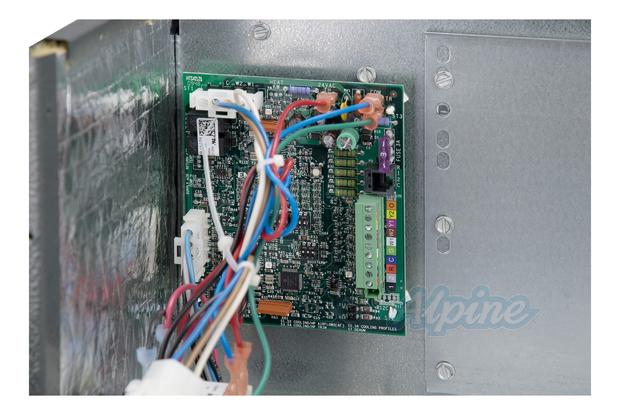

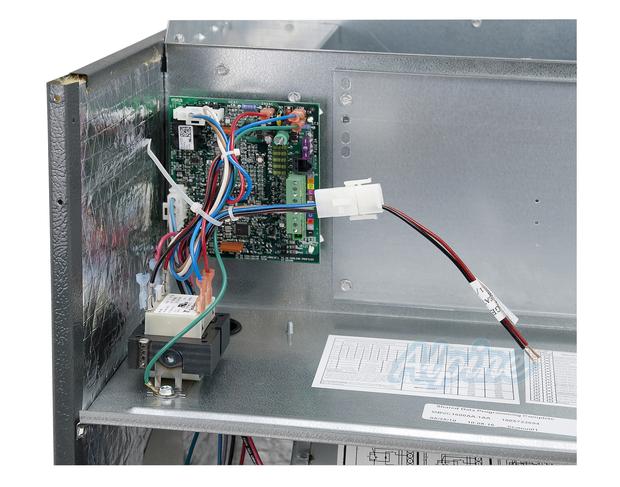

- MBR control board includes a fan delay in the cooling mode and is isolated from the air stream
- CAPF/CHPF coils are equipped with a check flowrater
- ARI Certified
- ETL Certified
Cabinet Features
- Cabinet constructed from formed, painted galvanized steel
- Cabinet blower section can be used as an electric furnace
- Cabinets intended to be used with cased evaporator coil (CAPF/CHPF) and condensing unit or heat pump
- Foil-faced insulation is glued in place and covers the entire blower case to reduce operating sound and cabinet condensation
- Bottom flanges formed inwardly for additional strength and to provide a good mounting surface for a cased-coil section to form a two-piece blower coil
This unit does not include a heat strip. If you would like to add heating capabilities, see the accessories tab for the appropriate heater coil.
Also Consider
1.5 to 3 Ton, 17.5" Wide, Variable Speed Modular Blower w/ ComfortBridge Technology
Direct Comfort DC-MBVC1201AA-1
In Stock
$
850
00
Specs
System Information
Configuration
Downflow / Horizontal / Upflow
Fuel Type
Electricity
Product Type
Modular Blower
Performance
CFM (Low/High)
(600/1200) CFM
Maximum CFM
1200 @ 0.5
Blower Cooling Capacity
1.5 / 2 / 2.5 / 3 Tons
Blower Type
Variable Speed
Electric Heat Capabilities (Optional)
10 / 15 / 3 / 5 / 8 Kilowatts
Blower Motor Horse Power
1/2 HP
Electrical Information
Voltage Phase
1
Minimum Ampacity
4.9 Amps
Maximum Overcurrent Protection (Breaker)
15 Amps
Voltage
208 - 230 Volts
Product Dimensions
Width
17 1/2 Inches
Depth
21 Inches
Height
26 Inches
Cabinet/Chassis Size
B
Blower Width
8 inches
Product Weight
67 lbs
Shipping Weight
67 lbs
Important Measurements
Blower Diameter
10 inches
Supply Air Opening Size
10 3/16 x 16 1/2 Inches
Warranty
Warranty
10 (with online registration) years
Limited Warranty
10 Years
Parts Warranty
With Online Registration 10 Years
