2.5 Ton, 15 to 17 SEER Condenser, R-410A Refrigerant
2.5 Ton, 15 to 17 SEER Condenser, R-410A Refrigerant
Model: Blueridge BA17L30P
Actual product may vary from photos.
Model: Blueridge BA17L30P
Designed for easy installation and maintenance
Reliable and consistent cooling power
Worry free and energy efficient performance
Peace of mind with 10 year warranty (with registration)
$1,82000
Or as low as
Volume Discounts
Qty:
Express Pay Available
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Services
- Pro Installation (Learn More)
highlights
The following Item(s) are immediately available from our Scratch-N-Dent Inventory. Please view the items for specific descriptions and photographs.
Blueridge air conditioning condensers come in three models to match your needs. The Blueridge BA13L is an ideal choice and offers standard energy efficiency. Robust, simple design means years of cooling performance at the lowest up-front cost. The Blueridge BA16L and BA17L deliver the same cooling power but at approximateley 20% (BA16L) and 24% (BA17L) lower operating cost than a 13 SEER system, making it a smart investment. All models give you the cooling power, quality, and long life you’d expect from a Blueridge product.
Condenser Series
This Product
BA13L
BA16L
BA17L
Efficiency (SEER)
13 to 15Standard Efficiency
14 to 16High Efficiency
14 to 18Highest Efficiency
Combine your AC Condenser with other HVAC Units to Achieve Higher SEER Ratings
Feel free to call us to speak with one of our friendly product specialists to assist you withselecting the right units.
Reasons You'll Love Your Blueridge AC Condenser
Reliability Is Assured
All units factory run-tested
Permanently lubricated fan motor requires no maintenance
High pressure switch protects the compressor
Low pressure switch protects the compressor

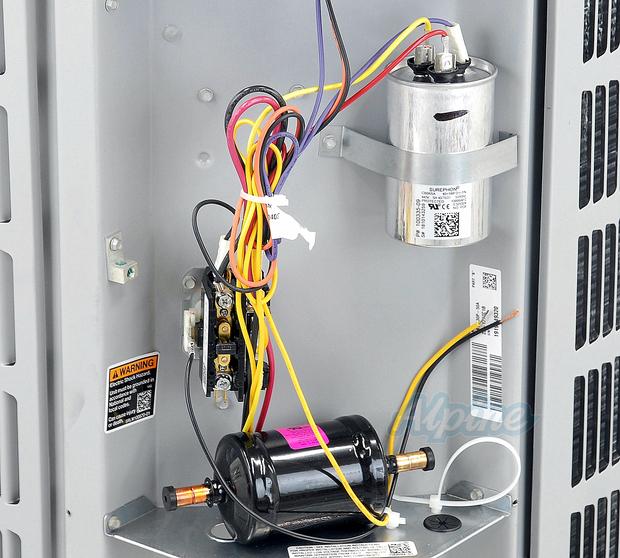

Filter dryer included
10 year warranty on all parts
Model series BA16L shown.
Designed To Be Easy To Install And Service
Comes pre-charged with R410a refrigerant for 15 feet of line set and evaporator coil

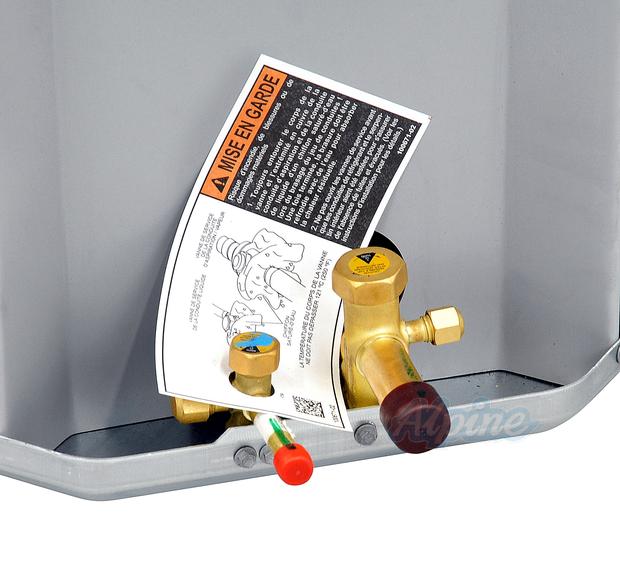

Service valves and all connections located on the corner for easy access
Fan motors have waterproof connections
Brass caps on all service valves, no plastic
Model series BA16L shown.
Quiet Performance Is Standard
Scroll compressor for quieter, more efficient operation
Patented Venturi ring around the condenser fan increases efficiency, reduces noise
Heavyweight T-fan exceeds strict regional requirements (Las Vegas, Toronto, etc.)
Heavy-gauge, reinforced steel chassis means low noise
Model series BA16L shown.
Superior Condenser Coil Construction
17 SEER feature all-alumninum construction for highest efficiency, uses approximately 24% less electricity than 13 SEER
BA17 Series models are designed with Omniguardâ„¢ total corrosion protection technology
Model series BA16L shown.
Hear What Blueridge Air Conditioner Owners Are Saying
Also Consider
Specs
System Information
Compressor Stages
Single Stage
TXV Required
No
Product Type
Condenser Unit
Refrigerant
R-410A
Features
Low Pressure Safety Switch
Yes
High Pressure Safety Switch
Yes
Efficiency
Energy Efficiency Ratio
12.2 - 14.5 EER
Energy Efficiency Ratio 2
11.7 - 13.5 EER2
SEER
15.0 - 17.6 SEER
SEER2
14.3 - 16.6 SEER2
Performance
Total Cooling Capacity
2.5 Ton(s)
Base Cooling Capacity
28600 BTU
Compressor Type
Scroll
Noise Level
76 - 68 - 62 - 58 Decibels
Electrical Information
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
18.4 Amps
Maximum Overcurrent Protection (Breaker)
25 Amps
Voltage
208 - 230 Volts
Line Set Information
Liquid Line Size (OD)
3/8 Inches
Suction Line Size (OD)
3/4 Inches
Product Dimensions
Width
28 1/4 Inches
Depth
28 1/4 Inches
Height
29 1/4 Inches
Pad Size
30x30 Inches
Product Weight
180 lbs
Shipping Weight
180 lbs
Warranty
Compressor Warranty
10 Years With Online Registration
Parts Warranty
With Online Registration 10 Years
Certifications
Qualifies for Govt. Money
North US: Up to $600 / South US: Up to $600
Approved for US Region(s)
North / Southeast / Southwest
ENERGY STAR® Certified
No
Accessories
Enjoy free shipping on any accessories purchased with the Blueridge BA17L30P.
Required Components for Installation
Alpine Home Air Products KIT016
Basic AC Supplies Package With 8 Conductor Wire for 3/4 Inch Suction Line Systems
$7999
Alpine AG-DCT
Safety Non-Fused Electrical Disconnect
$2199
Alpine AG-WHP10
1/2 x 48 Inches, #10 Gauge Electrical Whip
$2499
Alpine 61280251
25 Foot 3/8 LL 3/4 SL Line Set
$16999
AC Installation Supplies
Alpine Home Air Products CW8/50
50 Feet of 8 Conductor, 18 Gauge Thermostat Wire
$2999
Air Conditioning System Protectors
DiversiTech CGB-AER
Coil Guard - Aerosol, Blue
$3299
DiversiTech DPSG-3S
Virginia KMP- LDE-3-S, Sight Glass, Sweat Connection, 3/8"
$2799
Honeywell FPC
Freeze Protection Control
$6499
Equipment Supports
DiversiTech MP-3E (4-Pack)
(4-Pack) Vibration Isolation Blocks
$1699
Hard-Start Capacitors
Rectorseal TO5
Kickstart® Hard Start Device (1-3 Ton)
$5499
Horizontal Cased Evaporator Coils
Blueridge BH1P30B
2.5 Ton, W 26 1/2 x H 17 1/2 x D 21 1/2, Horizontal Cased Evaporator Coil
$46000
Blueridge BH1P36B
3 Ton, W 26 1/2 x H 17 1/2 x D 21 1/2, Horizontal Cased Evaporator Coil
$39000
Blueridge BH1P42B
3.5 Ton, W 31 1/2 x H 17 1/2 x D 21 1/2, Horizontal Cased Evaporator Coil
$44000
Blueridge BH1P42C
3.5 Ton, W 26 1/2 x H 21 x D 21 1/2, Horizontal Cased Evaporator Coil
$57000
Mini-Split System Accessories
Mersen STXH240S05
STXH240S05 Type 1 50kA 240/120V Split Phase Surge Protector
$9999
Mobile Home Uncased Evaporator Coils
Aspen CM36B3G
3 Ton Mobile Home Uncased Evaporator Coil
$55000
Multi-Positional Air Handlers
Blueridge BE5C30MA4X
2.5 Ton Standard Multi-Positional Air Handler
$93000
Blueridge BE5C36MA4X
3 Ton Standard Multi-Positional Air Handler
$1,05000
Blueridge BE5E30MA4X
2.5 Ton High Efficiency Multi-Positional Air Handler
$1,09000
Outdoor Pads & Brackets
Alpine AG-PAD30
30" x 30" x 2" UV Resistant Plastic Condensing Unit Pad
$6999
Standard Split System Line Sets
Alpine 61280351
35 Foot 3/8 LL 3/4 SL Line Set
$23999
Alpine 61280501
50 Foot 3/8 LL 3/4 SL Line Set
$30999
Thermostatic Expansion Valves (TXV)
Blueridge BGH4TXV01
1.5 To 3 Ton TXV Kit - R-410A Refrigerant
$10999
Thermostats
Cielo Smart Thermostat Eco (White)
Cielo Smart Thermostat Eco (White) - Smart Wi-Fi Air Conditioner Controller (Works with Alexa and Google Assistant)
$11999
Cielo Smart Thermostat Eco (Black)
Cielo Smart Thermostat Eco (Black) - Smart Wi-Fi Air Conditioner Controller (Works with Alexa and Google Assistant)
$11999
Honeywell TH1110D2009
T1 Pro Non-Programmable Thermostat (For 24 VAC, Single Stage Heat/Cool Systems)
$4999
Honeywell TH5110D1022
FocusPro 5000 Universal Non-Programmable Thermostat - One Stage Heat One Stage Cool (Large Screen)
$9499
Honeywell TH6320WF2003
Lyric T6 Pro Wi-Fi Programmable Thermostat with stages up to 3 Heat/2 Cool Heat Pump or 2 Heat/2 Cool (compatible with Alexa and Google Assistant)
$21499
Honeywell TH8321WF1001
Wi-Fi VisionPRO 8000, 3 Stage Heat / 2 Stage Cool, Digital Thermostat (Compatible with Alexa and Google Assistant)
$27499
Honeywell TH4110U2005
T4 Pro Programmable Thermostat with stages up to 1 Heat/1 Cool Conventional Systems
$6999
Tools
DiversiTech 358-20
Foam-Plus™ Foaming Condenser Coil Cleaner - 19 oz. Aerosol
$999
Variable Speed Air Handlers
Blueridge BE5V30MA4X
2.5 Ton Multi-Positional Variable Speed Air Handler
$1,30000
Blueridge BE5V36MA4X
3 Ton Multi-Positional Variable Speed Air Handler
$1,42000
Vertical Cased Evaporator Coils
Blueridge BC1P30A
2.5 Ton, W 14.5 x 22.5 H x 21 D, Painted Cased Evaporator Coil
$55000
Blueridge BC1P30B
2.5 Ton, W 17.5 x 22.5 H x 21 D, Painted Cased Evaporator Coil
$56000
Blueridge BC1P48C
4 Ton, W 21 x H 27.5 x D 21, Painted Cased Evaporator Coil
$67000
Blueridge BC1P49C
4 Ton, W 21 x H 29.5 x D 22, Painted Cased Evaporator Coil
$62000
Blueridge BC4X49C-50
4 Ton, W 21 x H 29.5 x D 21, Painted Cased Evaporator Coil, w/ TXV
$75000
Documents
Blueridge Long Lineset Instructions(PDF, 667 KB)- Blueridge BA17 Installation Manual(PDF, 1.66 MB)
- Blueridge BA17L Spec Sheet(PDF, 1.36 MB)
- Wire Gauge Sizes(PDF, 40.9 KB)
- Blueridge Unitary Equipment Warranty (Ver. 2.2)(PDF, 551 KB)
