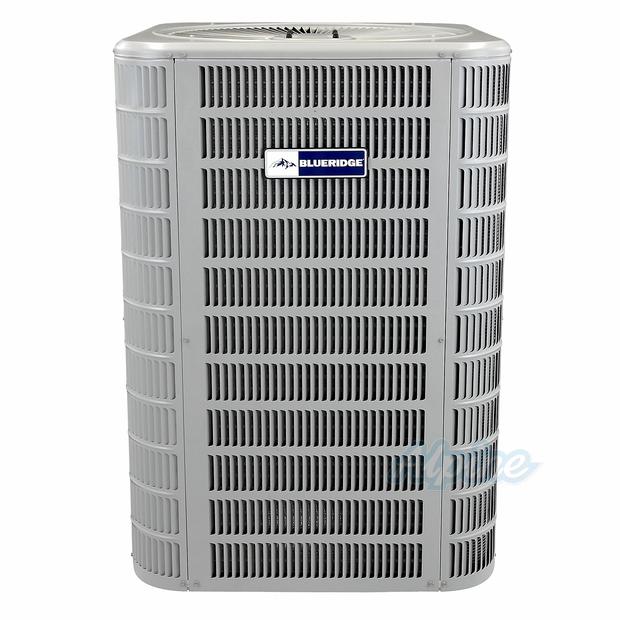

5 Ton, Up To 14.7 SEER2 Heat Pump, R-410A Refrigerant

Model: Blueridge BHP17L60P

Actual product may vary from photos.

Model: Blueridge BHP17L60P

Designed for easy installation and maintenance

LED diagnostics for easy troubleshooting

Worry free and energy efficient performance

Peace of mind with 10 year warranty (with registration)

checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights
Blueridge BHP17

The Blueridge BHP series of heat pump air conditioners are built in North Americafor an unbeatable combination of quality and price. They provide highly efficient,powerful cooling during hot weather, and when the weather turns cold, onboardtechnology reverses the refrigerant cycle to provide heat, and at a fraction ofthe cost of many alternative heat sources. Optionally, match one of these witha Blueridge air handler and auxiliary heat coil, or with a Blueridge furnace fora hybrid / dual fuel system.

Alpine offers Blueridge with the handy homeowner in mind. You can accomplishthe majority of the HVAC installation yourself and save thousands.

Condenser Series
This Product
BHP15L
BHP17L
Efficiency (Seer)
14 to 16
15 to 18
Reasons You'll Love Your Blueridge Heat Pump Condenser
Reliability Is Assured
All units factory run-tested
All units factory run-tested
High and low pressure switches standard
High and low pressure switches standard
Moisture proof control boards
Moisture proof control boards
Filter dryer included
Filter dryer included
10 year warranty on all parts
10 year warranty on all parts
Model series BHP15L shown.
Designed To Be Easy To Install And Service
Comes pre-charged with R410a refrigerant for 15 feet of line set and evaporator coil
Comes pre-charged with R410a refrigerant for 15 feet of line set and evaporator coil
Service valves and all connections located on the corner for easy access
Service valves and all connections located on the corner for easy access
Fan motors have waterproof connections
Fan motors have waterproof connections
Brass caps on all service valves, no plastic
Brass caps on all service valves, no plastic
LED diagnostic on control board
LED diagnostic on control board
Open-back plugin connections for easy wiring and testing
Open-back plugin connections for easy wiring and testing
Model series BHP15L shown.
Quiet Performance Is Standard
Scroll compressor for quieter, more efficient operation
Scroll compressor for quieter, more efficient operation
Discharge muffler is standard
Discharge muffler is standard
Innovative defrost cycle reduces noise
Innovative defrost cycle reduces noise
Patented Venturi ring around the condenser fan increases efficiency, reduces noise
Patented Venturi ring around the condenser fan increases efficiency, reduces noise
Heavyweight T-fan exceeds strict regional requirements (Las Vegas, Toronto, etc.)
Heavyweight T-fan exceeds strict regional requirements (Las Vegas, Toronto, etc.)
Heavy-gauge, reinforced steel chassis means low noise
Heavy-gauge, reinforced steel chassis means low noise
Model series BHP15L shown.
All-Aluminum Condenser Coil, Best In The Industry
All-aluminum construction gives superior reliability and heat transfer
All-aluminum construction gives superior reliability and heat transfer
Rubber coating on capillary tubes prevents leaks due to vibration wear
Rubber coating on capillary tubes prevents leaks due to vibration wear
Model series BHP15L shown.
Hear What Blueridge Heat Pump Owners Are Saying
Also Consider
Specs
System Information
view information
Compressor Stages
Single Stage
view information
TXV Required
Yes
view information
Product Type
Heat Pump Unit
view information
Refrigerant
R-410A
Features
view information
Low Pressure Safety Switch
Yes
view information
High Pressure Safety Switch
Yes
Efficiency
view information
Coefficient of Performance at 5° F
2.02 - 2.32
view information
Energy Efficiency Ratio
12.2 - 12.7 EER
view information
Energy Efficiency Ratio 2
11.7 - 12.2 EER2
view information
SEER
15.0 - 15.1 SEER
view information
SEER2
14.3 - 14.7 SEER2
view information
Heating Seasonal Performance Factor
9.0 - 10.0 HSPF
view information
Heating Seasonal Performance Factor 2
7.5 - 8.0 HSPF2
Performance
view information
Base Heating Capacity
54000 BTU
view information
Total Cooling Capacity
5 Ton(s)
view information
Maximum Heating Capacity
54000 BTU
view information
Base Cooling Capacity
56500 BTU
view information
Compressor Type
Scroll
view information
Noise Level
79 - 71 -65 -61 Decibels
Electrical Information
view information
Frequency
60 Hz
view information
Voltage Phase
1
view information
Minimum Ampacity
32.5 Amps
view information
Maximum Overcurrent Protection (Breaker)
50 Amps
view information
Voltage
208 - 230 Volts
Line Set Information
view information
Liquid Line Size (OD)
3/8 Inches
view information
Suction Line Size (OD)
1 1/8 Inches
Product Dimensions
view information
Width
32 1/4 Inches
view information
Depth
32 1/4 Inches
view information
Height
43 Inches
view information
Pad Size
36x36 Inches
Product Weight
260 lbs
Shipping Weight
260 lbs
Warranty
view information
Compressor Warranty
10 Years With Online Registration
Limited Warranty
10 Years - With Online Registration
view information
Parts Warranty
With Online Registration 10 Years
Certifications
view information
Qualifies for Govt. Money
No
view information
Approved for US Region(s)
North / Southeast / Southwest
view information
ENERGY STAR® Certified
Yes
