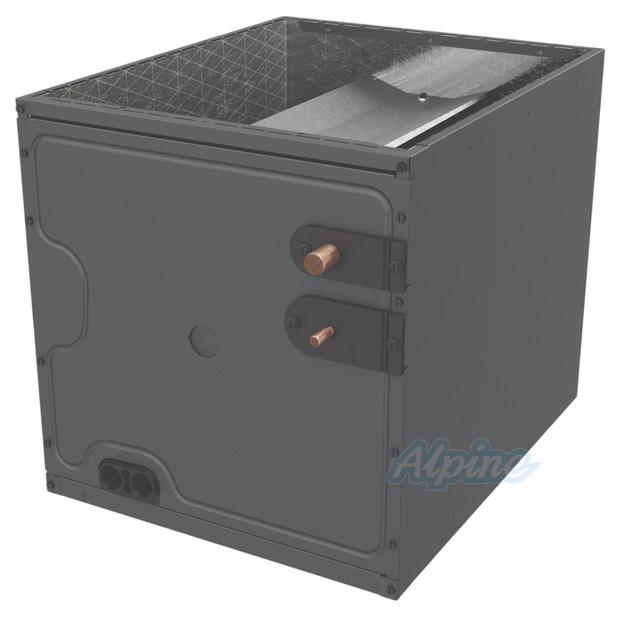

2 Ton, W 17 1/2 x H 22 x D 21, Painted Cased Evaporator Coil with TXV

2 Ton, W 17 1/2 x H 22 x D 21, Painted Cased Evaporator Coil with TXV

Model: Goodman CAPTA2422B4

Actual product may vary from photos.

Model: Goodman CAPTA2422B4

$58400

View Discounted Price In Cart

Or as low as


Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Services
highlights

The Goodman® CAPTA Cased Upflow/Downflow Indoor Coils with TXV are made for split system air conditioners and heat pumps. Each coil comes with a TXV factory installed.



For tips for selecting matched components and line sets click here.



Standard Features

  • All-aluminum evaporator coil
  • Optimized for use with R-410A refrigerant
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • UV-resistant drain pan
  • AHRI certified; ETL listed



Also Consider
Specs
System Information
view information
Configuration
Downflow / Upflow
view information
Product Type
Evaporator Coil
view information
Refrigerant
R-410A
Performance
view information
Base Cooling Capacity
24000 BTU
view information
Cooling Tonnage
2 Tons
Line Set Information
view information
Liquid Line Size (OD)
3/8 Inches
view information
Suction Line Size (OD)
3/4 Inches
Product Dimensions
view information
Cabinet/Chassis Size
B
Coil Width
17 1/2 inches
Coil Height
22 inches
Coil Depth
21 inches
Product Weight
48 lbs
Shipping Weight
48 lbs
Important Measurements
Plenum Opening Width
16.5 inches
