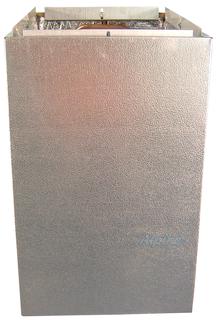

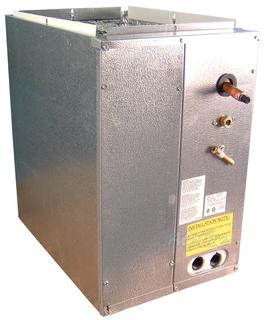

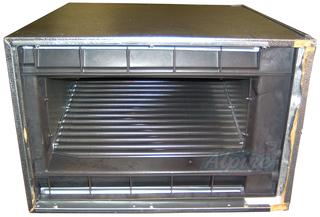

3 Ton, W 14 x H 22 x D 20 1/8, Cased Evaporator Coil
3 Ton, W 14 x H 22 x D 20 1/8, Cased Evaporator Coil
New Item!
Model: Goodman CACF036A2A
highlights
Cased Coils (CACF Series)
- No-rust, high temperature thermoplastic drain pans feature a low water retention design
- Unpainted check flowrater expansion device for heat pump or cooling only applications

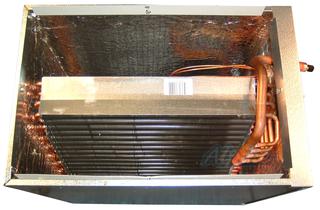

- Rifled copper tubing and wave pattern aluminum fin coils
- Foil-faced insulation
- Galvanized leather-grain cabinet

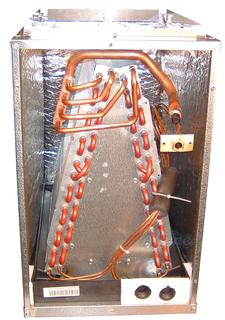

- Split-seam front–excellent access
Specs
System Information
Configuration
Downflow / Upflow
Number of Rows
3
Performance
Base Cooling Capacity
36000 BTU
Nominal CFM
1200
Static Pressure Wet Coil
0.30
Cooling Tonnage
3 Tons
Line Set Information
Liquid Line Size (OD)
3/8 Inches
Suction Line Size (OD)
3/4 Inches
Product Dimensions
Coil Width
14 inches
Coil Height
22 inches
Important Measurements
Plenum Opening Width
13 inches
Accessories
Supply Air Plenums
Alpine PLN120
Supply Plenum 14 x 20 x 30 Inches
$10499
Documents
Install Instructions - Upflow-Downflow Coils(PDF, 324 KB)- Piston Kit Chart - Goodman Evaporator Coils(PDF, 19.2 KB)
Goodman Coils to Furnaces Chart(HTM, 55.8 KB)- Goodman Coil - How To Change Coil Orifice(PDF, 1.25 MB)
