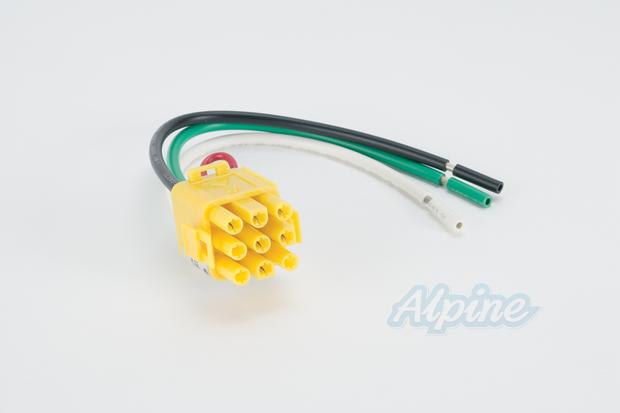

230/208V 30amp Direct Wire Kit. Compatible with GE AZ41 and AZ61 PTAC Units. Provides 17,000 BTUs heat
230/208V 30amp Direct Wire Kit. Compatible with GE AZ41 and AZ61 PTAC Units. Provides 17,000 BTUs heat
Model: GE RAK4307
Model: GE RAK4307
Only 1 left in stock
Power connection kits are required on all Zoneline® chassis (see chart below). The correct kit for the installation is determined by the voltage and amperage of the electrical circuit and the means of connecting the unit to the building wiring. If the unit is to be plugged into a receptacle, a line cord kit would be used; if the unit is to be permanently connected, a permanent connection kit would be used. 265 volt cord set units must be installed in compliance with National Electrical Code®.
| 230/208 volt Line Cord Connected Units | |||
| LCDI Power Connection Kit | RAK3153* | RAK3203* | RAK3303* |
| Heater KW | 2.4/2.32 | 3.3/3.2 | 4.7/4.53 |
| Watts | 2,400 / 2,320 | 3,300 / 3,200 | 4,700 / 4,530 |
| BTUH | 8,600 / 7,100 | 11,700 / 9,600 | 17000 / 13,900 |
| Amps | 11.0/11.6 | 15/1/16.0 | 21.2/22.4 |
| Min. Circuit Amps | 15 | 20 | 30 |
| Recommended Protective Device | 15 amp time delay fuse or breaker | 20 amp time delay fuse or breaker | 30 amp time delay fuse or breaker |
|
|
|||
| 230/208 volt Direct Connection Kit † | |||
| LCDI Power Connection Kit | RAK4157 | RAK4207 | RAK4307 |
| Heater KW | 2.4/2.32 | 3.3/3.2 | 4.7/4.53 |
| Watts | 2,400 / 2,320 | 3,300 / 3,200 | 4,700 / 4,530 |
| BTUH | 8,600 / 7,100 | 11,700 / 9,600 | 17000 / 13,900 |
| Amps | 11.0/11.6 | 15/1/16.0 | 21.2/22.4 |
| Min. Circuit Amps | 15 | 20 | 30 |
| Recommended Protective Device | 15 amp time delay fuse or breaker | 20 amp time delay fuse or breaker | 30 amp time delay fuse or breaker |
* RAK3153, RAK3203 and RAK3303 will be transitioning to RAK3153A, RAK3203A and RAK3303A respectively. Old and new models are interchangeable, and there will be no change in performance.
*To be used with sub-base
†To be used with sub-base or connection to building wiring
Preliminary specifications subject to change.
Room Air Conditioner Accessories Guide(PDF, 2.37 MB)
