36,000 BTU (3 Ton) 23 SEER / 16 SEER2 - M5 SERIES - ULTRA HEAT Two Zone Ductless Mini-Split Heat Pump System
36,000 BTU (3 Ton) 23 SEER / 16 SEER2 - M5 SERIES - ULTRA HEAT Two Zone Ductless Mini-Split Heat Pump System

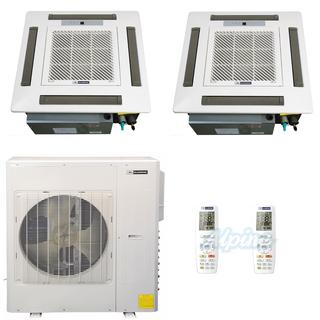

Model: Blueridge BMKH36UH23-18C-18C
Clearance
Actual product may vary from photos.
Model: Blueridge BMKH36UH23-18C-18C
Provides heating and cooling
Whisper quiet indoors and outdoors
Sips electricity for low utility costs
Simple installation + friendly tech support available
Now $3,76900
Was: $4,309.00
Savings: $540.00
Or as low as
Volume Discounts
Qty:
Express Pay Available
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Includes
Services
- Pro Installation (Learn More)
highlights
Heat or Cool Any Space,
Simply and Affordably
Simply and Affordably
Surprisingly
Affordable
Affordable
Incredibly
Quiet
Quiet
Great
Reviews
Reviews
Easy to
Install
Install
What is a Blueridge Ductless System?
It's a better way to heat and cool any space without the need for ductwork. Includes an outdoor heat pump condenser and 1 to 5 indoor air handlers. It's inexpensive to own and operate, easier to install and whisper quiet.
Homeowners and contractors love Blueridge ductless mini-splits. If you own a home, you will want one.
Blueridge mini-splits are a high quality, energy efficient and inexpensive option for cooling and heating many types of spaces without ductwork.
Blueridge mini-splits compare favorably to well-known brands at a fraction of the price. They have the highest online product ratings of all mini-split brands. Their affordability, ease of installation, and high quality make them a favorite among contractors and homeowners.
Ideal for commercial applications and drop ceilings
Benefits
Quiet
Both the indoor and outdoor units operate so quietly you may not be aware they are running. You will just be aware that you are comfortable.
Affordable
The great value extends beyond the low purchase price of these units. You will be pleasantly surprised by how inexpensive they are to operate.
Efficient
Lower your utility bills with inverter technology, by using less electricity and no fossil fuels to accomplish your heating and cooling needs. This is intelligent equipment for a sustainable and comfortable lifestyle.
Versatility
Because there is no ductwork, this is a solution for all kinds of hard-to-fit applications. Any room or space can be transformed into a place for you and others to enjoy for years to come.
Simple Installation
If you're handy, you can accomplish 90% of the installation yourself by following the simple directions and watching our helpful video. Bring in a professional to finish the job and you're set.
Heat or Cool Any Type of Space:
Entire homes
Condos
Bonus rooms
Hotel rooms
Small businesses
Studios
Tiny homes
Coffee shops
Pool houses
Workshops
Offices
Man caves
Attics
Casitas
Retreat spaces
Sun rooms
Basements
Garages
Enclosed porches
Mother-in-law apartments
Many more applications
Videos
Blueridge Ductless Mini-Split AC Highlights
Blueridge Mini-Splits also Provide Heat!
Great customer reviews
Great Product!
Simon
Cleveland, GA
This is an outstanding product at a reasonable price.
Mike
Birmingham AL
Great mini-split system!
Marq
New Bern, NC
Installed easily and works very quietly.
Mike
Palm Desert, CA
Excellent! Works great.
Vic
Jefferson, GA
I would buy it again.
Jack
Johns Creek, GA
Blueridge BMKH18MCC Unit Type:
Ceiling Flush Mount
Ceiling Cassettes flush mount in the ceiling for better
air distribution and to preserve the appearance of your
walls. Ideal for drop ceilings, more construction is required
to retrofit this to a standard ceiling, involving removal
of ceiling material and some reframing.
Installation
Step 1
Mount
Once you have received the product, mount the indoor and outdoor units to your desired resting location.
Step 2
Connect
Next, run the line sets, drain line, and electrical wires from the indoor unit(s) to the outdoor unit.
Step 3
Electrical
Run a 220 volt power circuit from your main breaker to the outdoor disconnect. Then run the electrical whip from the disconnect to the outdoor unit.
Step 4
Pro Start Up
We'll help you get an HVAC contractor who will pressure test the line sets, check for leaks, and release refrigerant. Click Here For Details
How to Install a Blueridge Ductless Mini-Split AC System
View installation manual for complete instructions
CEO and Founder
Andrew Arthurs
Alpine Home Air Products
Blueridge ductless mini-splits are exclusive to Alpine Home Air and are one of our most popular brands. These units are manufactured to our specifications by the largest, most reputable HVAC manufacturer in the world.
Our customers love them! We receive rave reviews because these products are solidly-engineered, thoroughly tested, reliable, and quiet. Our customers order Blueridge because of the incredible value and savings. Competing brands cost more for one reason: a long supply chain raising the price before the product hits your door. With Blueridge, we buy directly from the manufacturer and our customers save thousands of dollars. Long established throughout the rest of the world, mini-splits are quickly gaining popularity across America. The ease of installation, versatility, and savings cannot be matched. We know you will love our Blueridge mini-splits as much as we do. Please tell your friends and help us get the word out.
Blueridge BMKH36UH23-18C-18C
Standard Features
Convenient remote control enables unique temperatures to be set per zone.
High-efficiency inverter technology allows for even cooling and heating while reducing energy costs.
Gold fin condenser coil coating extends the life of your system by protecting it from corrosion.
Intelligent sleep function adjusts to your sleep pattern in order to maximize your comfort and reduce energy costs. User controls direct air flow.
Intelligent defrost reduces energy and defrost time by only defrosting when needed.
This System Includes*
36,000 BTU 23 SEER Four Zone Ultra Heat Ductless Mini Split Outdoor Condenser
18,000 BTU Ceiling Cassette Drop Ceiling Ductless Air Handler (1/4 LL 1/2 SL)
Grill for 12K and 18K BTU Ceiling Cassettes
Blueridge 30510599 Remote Control
Blueridge BXK19 Optional Wired Wall Controller
*NOTE: Does not include all required components for installation. See required components below in the accessories section to complete your system.
Also Consider
42,000 BTU (3.5 Ton) 23 SEER / 16 SEER2 - M5 SERIES - ULTRA HEAT Two Zone Ductless Mini-Split Heat Pump System
Blueridge BMKH42UH23-24F-24F
In Stock
$
4,239
00
Specs
System Information
Zones
2
Factory Precharge
131 Feet
Indoor Air Handler Type(s)
Ceiling Cassette
Indoor Unit(s) Capacity
18,000 + 18,000 BTU
Multi Zone Mini-Split Series
M5 Series: Ultra Heat
Product Type
Mini Split Only
Refrigerant
R-410A
Features
WIFI (2.4GHz)
Yes (With Adapter)
Efficiency
Coefficient of Performance (at 47 F)
3.21 COP
Coefficient of Performance at 5° F
1.82
Energy Efficiency Ratio
9.0 EER
Energy Efficiency Ratio 2
9.0 EER2
SEER
23.0 SEER
SEER2
16.0 SEER2
Heating Seasonal Performance Factor
10.0 HSPF
Heating Seasonal Performance Factor 2
8.6 HSPF2
Performance
Ambient Temperature Range (Cooling)
0 / 114 °F
Ambient Temperature Range (Heating)
-31 / 75 °F
Low Ambient Cooling
Yes
Base Heating Capacity
42514 BTU
Total Cooling Capacity
3 Ton(s)
Maximum Heating Capacity
42514 BTU
Base Cooling Capacity
36000 BTU
Lowest Ambient Temperature (Heating)
-31 °F
Maximum Cooling Capacity
40000 BTU
Compressor Type
Inverter / Rotary
Cooling Tonnage
3 Tons
Sound Rating, Indoor
46 / 52 / 56 Decibels
Sound Rating, Outdoor
62 Decibels
Electrical Information
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
36 Amps
Maximum Fuse/Breaker
60 Amps
Voltage
208 - 230 Volts
Line Set Information
Maximum Line Length per Zone
82 Feet
Maximum Height Difference
49 Feet
Maximum Line Length all Zones
246 Feet
Liquid Line Size (OD)
(2) 1/4 Inches
Suction Line Size (OD)
(2) 1/2 Inches
Line Set Connection Type
Flare
Product Dimensions
Indoor Air Handler Size, W x H x D
23.46 x 9.44 x 23.46 Inches
Outdoor Condenser Size, W x H x D
44 x 43.42 x 15.5 Inches
Indoor Air Handler Weight
44 Lbs
Outdoor Condenser Weight
280 Lbs
Footprint Mounting Holes (W x D)
24.81 x 14.8 Inches
Important Measurements
Panel Size
26.37 x 26.37 x 1.96
Warranty
Compressor Warranty
7 Years
Parts Warranty
5 Years
Certifications
AHRI#
206221555
Qualifies for Govt. Money
No
Approved for US Region(s)
North / Southeast / Southwest
ENERGY STAR® ID
2415262
ENERGY STAR® Certified
Yes
