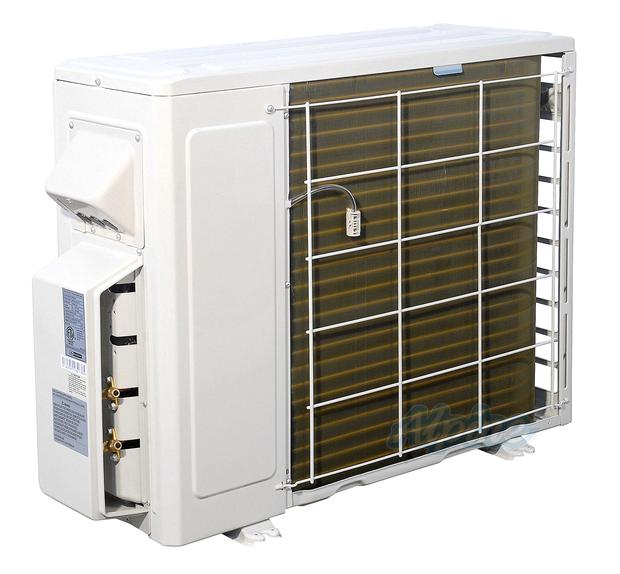

36,000 BTU Four Zone Hyper Heat Ductless Mini Split Outdoor Condenser
36,000 BTU Four Zone Hyper Heat Ductless Mini Split Outdoor Condenser
Model: Blueridge BMM36HH2C
Actual product may vary from photos.
Model: Blueridge BMM36HH2C
Provides heating and cooling
Whisper quiet indoors and outdoors
Sips electricity for low utility costs
Simple installation + friendly tech support available
$3,04900
Or as low as
Volume Discounts
Qty:
Express Pay Available
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Includes
highlights
*NOTE: This product is not a complete system, it is only one component. A complete system requires an indoor air handler, outdoor condenser and connecting line set. Please view complete systems here.
Heat or Cool Any Space,
Simply and Affordably
Simply and Affordably
Surprisingly
Affordable
Affordable
Incredibly
Quiet
Quiet
Great
Reviews
Reviews
Easy to
Install
Install
What is a Blueridge Ductless System?
It's a better way to heat and cool any space without the need for ductwork. Includes an outdoor heat pump condenser and 1 to 5 indoor air handlers. It's inexpensive to own and operate, easier to install and whisper quiet.
Homeowners and contractors love Blueridge ductless mini-splits. If you own a home, you will want one.
Blueridge mini-splits are a high quality, energy efficient and inexpensive option for cooling and heating many types of spaces without ductwork.
Blueridge mini-splits compare favorably to well-known brands at a fraction of the price. They have the highest online product ratings of all mini-split brands. Their affordability, ease of installation, and high quality make them a favorite among contractors and homeowners.
Benefits
Quiet
Both the indoor and outdoor units operate so quietly you may not be aware they are running. You will just be aware that you are comfortable.
Affordable
The great value extends beyond the low purchase price of these units. You will be pleasantly surprised by how inexpensive they are to operate.
Efficient
Lower your utility bills with inverter technology, by using less electricity and no fossil fuels to accomplish your heating and cooling needs. This is intelligent equipment for a sustainable and comfortable lifestyle.
Versatility
Because there is no ductwork, this is a solution for all kinds of hard-to-fit applications. Any room or space can be transformed into a place for you and others to enjoy for years to come.
Simple Installation
If you're handy, you can accomplish 90% of the installation yourself by following the simple directions and watching our helpful video. Bring in a professional to finish the job and you're set.
Heat or Cool Any Type of Space:
Entire homes
Condos
Bonus rooms
Hotel rooms
Small businesses
Studios
Tiny homes
Coffee shops
Pool houses
Workshops
Offices
Man caves
Attics
Casitas
Retreat spaces
Sun rooms
Basements
Garages
Enclosed porches
Mother-in-law apartments
Many more applications
Videos
Blueridge Ductless Mini-Split AC Highlights
Blueridge Mini-Splits also Provide Heat!
Great customer reviews
Great Product!
Simon
Cleveland, GA
This is an outstanding product at a reasonable price.
Mike
Birmingham AL
Great mini-split system!
Marq
New Bern, NC
Installed easily and works very quietly.
Mike
Palm Desert, CA
Excellent! Works great.
Vic
Jefferson, GA
I would buy it again.
Jack
Johns Creek, GA
Installation
Step 1
Mount
Once you have received the product, mount the indoor and outdoor units to your desired resting location.
Step 2
Connect
Next, run the line sets, drain line, and electrical wires from the indoor unit(s) to the outdoor unit.
Step 3
Electrical
Run a 220 volt power circuit from your main breaker to the outdoor disconnect. Then run the electrical whip from the disconnect to the outdoor unit.
Step 4
Pro Start Up
We'll help you get an HVAC contractor who will pressure test the line sets, check for leaks, and release refrigerant. Click Here For Details
How to Install a Blueridge Ductless Mini-Split AC System
View installation manual for complete instructions
CEO and Founder
Andrew Arthurs
Alpine Home Air Products
Blueridge ductless mini-splits are exclusive to Alpine Home Air and are one of our most popular brands. These units are manufactured to our specifications by the largest, most reputable HVAC manufacturer in the world.
Our customers love them! We receive rave reviews because these products are solidly-engineered, thoroughly tested, reliable, and quiet. Our customers order Blueridge because of the incredible value and savings. Competing brands cost more for one reason: a long supply chain raising the price before the product hits your door. With Blueridge, we buy directly from the manufacturer and our customers save thousands of dollars. Long established throughout the rest of the world, mini-splits are quickly gaining popularity across America. The ease of installation, versatility, and savings cannot be matched. We know you will love our Blueridge mini-splits as much as we do. Please tell your friends and help us get the word out.
Blueridge BMM36HH2C
Standard Features
Convenient remote control enables unique temperatures to be set per zone.
High-efficiency inverter technology allows for even cooling and heating while reducing energy costs.
Gold fin condenser coil coating extends the life of your system by protecting it from corrosion.
Intelligent sleep function adjusts to your sleep pattern in order to maximize your comfort and reduce energy costs. User controls direct air flow.
Intelligent defrost reduces energy and defrost time by only defrosting when needed.
This System Includes*
36,000 BTU Four Zone Hyper Heat Ductless Mini Split Outdoor Condenser
Also Consider
48,000 BTU Five Zone Hyper Heat Ductless Mini Split Outdoor Condenser
Blueridge BMM48HHC
In Stock
$
3,749
00
Specs
System Information
Zones
4
Factory Precharge
98 Feet
Single Vs. Multi-Zone
Multi-zone
Mini-Split Series
M4 Series: Hyper Heat
Product Type
Hyper Heat
Component Type
Outdoor Unit
Refrigerant
R-410A
Features
WIFI (2.4GHz)
None
Efficiency
Coefficient of Performance (at 47 F)
3.62 COP
Energy Efficiency Ratio 2
12 EER2
SEER2
21 SEER2
Heating Seasonal Performance Factor 2
8.5 HSPF2
Performance
Ambient Temperature Range (Cooling)
-22 / 122 °F
Ambient Temperature Range (Heating)
-22 / 75 °F
Low Ambient Cooling
Yes
Base Heating Capacity
36000 BTU
Total Cooling Capacity
3 Ton(s)
Maximum Heating Capacity
48000 BTU
Base Cooling Capacity
36000 BTU
Lowest Ambient Temperature (Heating)
-22 °F
Maximum Cooling Capacity
41000 BTU
Compressor Type
Inverter
Sound Rating, Outdoor
65 Decibels
Electrical Information
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
36 Amps
Maximum Fuse/Breaker
50 Amps
Maximum Overcurrent Protection (Breaker)
50 Amps
Voltage
208 - 230 Volts
Line Set Information
Maximum Line Length per Zone
115 Feet
Maximum Height Difference
49 Feet
Maximum Line Length all Zones
262 Feet
Liquid Line Size (OD)
(4) 1/4 Inches
Suction Line Size (OD)
(2) 1/2 / (2) 3/8 Inches
Line Set Connection Type
Flare
Product Dimensions
Width
38 29/50 Inches
Depth
16 17/50 Inches
Height
38 39/100 Inches
Product Weight
213.85 lbs
Footprint Mounting Holes (W x D)
25 x 15.9 Inches
Warranty
Compressor Warranty
7 Years
Parts Warranty
5 Years
Certifications
ENERGY STAR® Certified
Yes
