Concealed Duct Return Kit for 24000 btu concealed duct air handlers (Three Returns, 10 inch Duct)
Concealed Duct Return Kit for 24000 btu concealed duct air handlers (Three Returns, 10 inch Duct)
Model: Alpine AH 24CD KIT8
![](/assets/images/blueridge-product-templates/icons/arrow-right.png)
![](/assets/images/blueridge-product-templates/icons/arrow-blue.png)
Model: Alpine AH 24CD KIT8

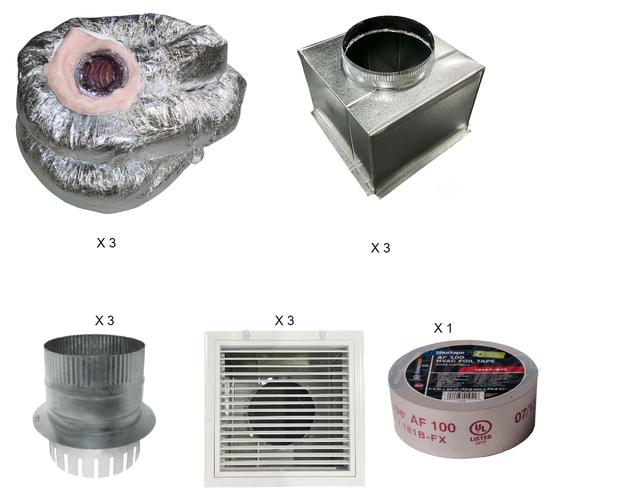

This is a professionally designed return ductwork installation kit for the BM24MCD (24000 btu) concealed duct (multi room) air handler. With the exception of the return plenum itself this kit includes all of the materials needed to successfully install the BM24MCD return ductwork. This kit has been designed specifically to deliver an optimal performance level and help to simplify the installation. It uses three 10 inch return ducts to optimize air mixture in your space. It is highly recommended that you select one of the matching supply duct installation kits as well and the supply and return air plenum KIT-BPK24. This kit is designed to be used with a ductboard plenum such as KIT-BPK24. This kit is not compatible with a sheet metal plenum. It includes:
x3 25 feet of 10 inch R8 metalized felx ducts
x3 10 inch ductboard takeoff collars (no damper)
x3 14.5 x 14.5 x 10(round connection) non insulated ceiling boxes
x3 14 x 14 x 1 ceiling filter grilles
x1 Foil tape
- Blueridge Concealed Duct Install Kit Installation Manual(PDF, 2.73 MB)
