55,000 BTU (4.5 Ton) 19 SEER / 20.2 SEER2 - M2 SERIES - Four Zone Ductless Mini-Split Heat Pump System - Wi-Fi Capable

55,000 BTU (4.5 Ton) 19 SEER / 20.2 SEER2 - M2 SERIES - Four Zone Ductless Mini-Split Heat Pump System - Wi-Fi Capable

Model: Blueridge BMM5519-12C2-12C2-12C2-18F

Clearance
Top Rated: Hightest Rating of Any Mini-Split Brand
Actual product may vary from photos.

Model: Blueridge BMM5519-12C2-12C2-12C2-18F

Provides heating and cooling

Whisper quiet indoors and outdoors

Sips electricity for low utility costs

Simple installation + friendly tech support available

Now $5,23900

Was: $6,229.00

Savings: $990.00

Or as low as


Volume Discounts
Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights
Midea Floor Ceiling
Blueridge logo
Heat or Cool Any Space,
Simply and Affordably
affordable icon
Surprisingly
Affordable
quiet icon
Incredibly
Quiet
reviews icon
Great
Reviews
easy to install icon
Easy to
Install
What is a Blueridge Ductless System?
It's a better way to heat and cool any space without the need for ductwork. Includes an outdoor heat pump condenser and 1 to 5 indoor air handlers. It's inexpensive to own and operate, easier to install and whisper quiet.
Homeowners and contractors love Blueridge ductless mini-splits. If you own a home, you will want one.
Midea Floor Ceiling
Blueridge mini-splits are a high quality, energy efficient and inexpensive option for cooling and heating many types of spaces without ductwork.
Blueridge mini-splits compare favorably to well-known brands at a fraction of the price. They have the highest online product ratings of all mini-split brands. Their affordability, ease of installation, and high quality make them a favorite among contractors and homeowners.
Benefits
WiFi Control
WiFi Control
Included remote with features like Quiet Mode, Turbo Mode, Sleep Mode and Timer. Use app with smartphone or tablet to control the system from wherever you are.
Cutting Edge Technology
Cutting Edge Technology
Designed to be paired with a mini split condensing unit using an inverter compressor. That means these units are at the cutting edge of heating and cooling technology. This air handler comes with a remote control and a wifi enabled programmable thermostat. This allows you to set heating/cooling schedules, and control your system from anywhere as long as you have access to the internet.
Quiet
Quiet
Both the indoor and outdoor units operate so quietly you may not be aware they are running. You will just be aware that you are comfortable.
Affordable
Affordable
The great value extends beyond the low purchase price of these units. You will be pleasantly surprised by how inexpensive they are to operate.
Efficient
Efficient
Lower your utility bills with inverter technology, by using less electricity and no fossil fuels to accomplish your heating and cooling needs. This is intelligent equipment for a sustainable and comfortable lifestyle.
Versatility
Versatility
Designed to be installed between joists that are 16 inches apart or greater make them compatible with most ceilings.
Simple Installation
Simple Installation
If you're handy, you can accomplish 90% of the installation yourself by following the simple directions and watching our helpful video. Bring in a professional to finish the job and you're set.
Heat or Cool Any Type of Space:
Entire homes
Condos
Bonus rooms
Hotel rooms
Small businesses
Studios
Tiny homes
Coffee shops
Pool houses
Workshops
Offices
Man caves
Attics
Casitas
Retreat spaces
Sun rooms
Basements
Garages
Enclosed porches
Mother-in-law apartments
Many more applications
Videos
Blueridge Ductless Mini-Split AC Highlights
Video thumbnail
Blueridge Mini-Splits also Provide Heat!
Video thumbnail
Great customer reviews
Great Product!
Simon
Cleveland, GA
This is an outstanding product at a reasonable price.
Mike
Birmingham AL
Great mini-split system!
Marq
New Bern, NC
Installed easily and works very quietly.
Mike
Palm Desert, CA
Excellent! Works great.
Vic
Jefferson, GA
I would buy it again.
Jack
Johns Creek, GA
View All Reviews
Blueridge BM18MFCC Unit Type:
Wall / Ceiling Console
These units surface-mount on the wall or ceiling for a simpler, more flexible installation. Vertically, they mount all the way down near the floor. They can be mounted anywhere on the ceiling. Condensation may be pumped upward to a gravity drain, or a drain hose can be run along the ceiling inside conduit.
Wall / Ceiling Console
Installation
Mount
Step 1
Mount
Once you have received the product, mount the indoor and outdoor units to your desired resting location.
Connect
Step 2
Connect
Next, run the line sets, drain line, and electrical wires from the indoor unit(s) to the outdoor unit.
Electrical
Step 3
Electrical
Run a 220 volt power circuit from your main breaker to the outdoor disconnect. Then run the electrical whip from the disconnect to the outdoor unit.
Pro Start Up
Step 4
Pro Start Up
We'll help you get an HVAC contractor who will pressure test the line sets, check for leaks, and release refrigerant. Click Here For Details
How to Install a Blueridge Ductless Mini-Split AC System
Video thumbnail
View installation manual for complete instructions
Andrew Arthurs
CEO and Founder
Andrew Arthurs
Alpine Home Air Products
Blueridge ductless mini-splits are exclusive to Alpine Home Air and are one of our most popular brands. These units are manufactured to our specifications by the largest, most reputable HVAC manufacturer in the world.
Our customers love them! We receive rave reviews because these products are solidly-engineered, thoroughly tested, reliable, and quiet. Our customers order Blueridge because of the incredible value and savings. Competing brands cost more for one reason: a long supply chain raising the price before the product hits your door. With Blueridge, we buy directly from the manufacturer and our customers save thousands of dollars. Long established throughout the rest of the world, mini-splits are quickly gaining popularity across America. The ease of installation, versatility, and savings cannot be matched. We know you will love our Blueridge mini-splits as much as we do. Please tell your friends and help us get the word out.
Blueridge BMM5519-12C2-12C2-12C2-18F
Standard Features
Convenient remote control enables unique temperatures to be set per zone.
High-efficiency inverter technology allows for even cooling and heating while reducing energy costs.
Gold fin condenser coil coating extends the life of your system by protecting it from corrosion.
Intelligent sleep function adjusts to your sleep pattern in order to maximize your comfort and reduce energy costs. User controls direct air flow.
Intelligent defrost reduces energy and defrost time by only defrosting when needed.

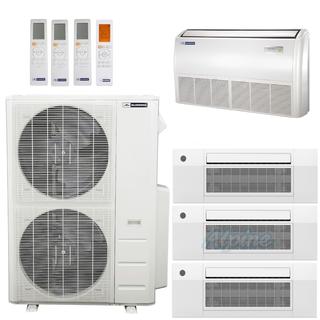

This System Includes*
Blueridge BMM55C
55,000 BTU Five Zone Ductless Mini Split Outdoor Condenser
Blueridge BMM12CC2
12,000 BTU Slim Cassette Air Handler (1/4 LL 1/2 SL)
Blueridge BM18MFCC
18,000 BTU Floor/Ceiling Console Ductless Air Handler (1/4 LL 1/2 SL)
Blueridge 17317000A63544
RG10B(D1)/BGEFU1 Remote Controller
Blueridge 17317000A65424
Remote controller
Blueridge 17317100A36377
Wired controller with WIFI built-in, KJR-120N(X6W)/BGEF (replaces 17317100A35580 & 17317100007940 )
important
*NOTE: Does not include all required components for installation. See required components below in the accessories section to complete your system.
WIFI adapter 453076086
Optional: WiFi Adapter for Blueridge BM Series Ceiling Cassette and Floor Ceiling Air Handlers
To add this item to your system, please view accessories section below.
Specs
System Information
view information
Zones
4
view information
Factory Precharge
125 Feet
view information
Indoor Air Handler Type(s)
Slim Cassette / Floor Ceiling
view information
Indoor Unit(s) Capacity
12,000 + 12,000 + 12,000 + 18,000 BTU
view information
Multi Zone Mini-Split Series
M2 Series: Economy
view information
Refrigerant
R-410A
Features
view information
WIFI (2.4GHz)
Yes (With Adapter)
Efficiency
view information
Coefficient of Performance (at 47 F)
3.15 COP
view information
Coefficient of Performance at 5° F
1.8
view information
Energy Efficiency Ratio
10.5 EER
view information
Energy Efficiency Ratio 2
10.5 EER2
view information
SEER
19.0 SEER
view information
SEER2
20.2 SEER2
view information
Heating Seasonal Performance Factor
11.5 HSPF
view information
Heating Seasonal Performance Factor 2
9.6 HSPF2
Performance
view information
Ambient Temperature Range (Cooling)
122 / 5 °F
view information
Ambient Temperature Range (Heating)
-13 / 75 °F
view information
Low Ambient Cooling
Yes
view information
Base Heating Capacity
55000 BTU
view information
Total Cooling Capacity
4.5 Ton(s)
view information
Maximum Heating Capacity
63000 BTU
view information
Base Cooling Capacity
55000 BTU
view information
Lowest Ambient Temperature (Heating)
-13 °F
view information
Maximum Cooling Capacity
56900 BTU
view information
Compressor Type
Inverter
view information
Sound Rating, Indoor
32.5 / 37 / 38.5 / 39 / 44 / 47 Decibels
view information
Sound Rating, Outdoor
62 Decibels
Electrical Information
view information
Frequency
60 Hz
view information
Voltage Phase
1
view information
Minimum Ampacity
40 Amps
view information
Maximum Fuse/Breaker
60 Amps
view information
Voltage
208 - 230 Volts
Line Set Information
view information
Maximum Line Length per Zone
115 Feet
view information
Maximum Height Difference
49 Feet
view information
Maximum Line Length all Zones
262 Feet
view information
Liquid Line Size (OD)
(4) 1/4 Inches
view information
Suction Line Size (OD)
(4) 1/2 Inches
view information
Line Set Connection Type
Flare
Product Dimensions
view information
Indoor Air Handler Size, W x H x D
Multiple Sizes - See Documentation Inches
view information
Outdoor Condenser Size, W x H x D
37.48 x 52.48 x 16.34 Inches
Indoor Air Handler Weight
Multiple Weights - See Documentation Lbs
Outdoor Condenser Weight
224.21 Lbs
view information
Footprint Mounting Holes (W x D)
25 x 15.9 Inches
Warranty
view information
Compressor Warranty
7 Years
view information
Parts Warranty
5 Years
Certifications
view information
AHRI#
208650619
view information
Qualifies for Govt. Money
North US: Up to $2,000
view information
Approved for US Region(s)
North / Southeast / Southwest
view information
ENERGY STAR® Certified
No
