When you consider a Blueridge system, quality and value are a given. You’re getting peace of mind with great features and a smart design—and best of all, you get it right now. When you think about everything Blueridge delivers, your decision is easy. With Blueridge, all your heating and cooling questions are answered. The performance and reliability you want are right here, and ready to go to work.

Blueridge air conditioning units are built in North America for an unbeatable combination of quality and price. They provide highly efficient, powerful cooling during hot weather, and are designed to last, with quiet operation, and ease of maintenance.

This system is designed to be installed in an upflow application with a furnace standing up straight and blowing air into ducts above it. We design our system bundles to provide homeowners and contractors with a new HVAC system in one simple purchase. If you'd like help picking out the best option for your needs, give us a call at 1 800 865 5931. Our system design consultants have decades of combined experience helping homeowners select the right equipment. If you have any questions, concerns or just need some guidance, please get in touch with us. We're here to help.

For additional installation components please take a look at our Accessories page to add the appropriate length line sets, electrical connections, and other parts to make your installation a breeze.

Condenser Standard Features:

• HIgh-efficiency scroll compressor

• R410a refrigerant

• Internally protected against high temperature overload conditions

• full metal louvered construction to protect coil/hail protection

•  Individual louver panel; 4 screws to remove for ease of coil cleaning and service

• Corner-mounted controls for easy service

• Baked polyester paint fininshed over galvanized steel for maximum durability

• 45-degree offset valves for easy service

• Omniguard total corrosion protection technology designed coil

• Enhanced tube-an-fin coil design featuring MHT Technology

• Lanced fins for maximum heat trasfer

• Every coil factory tested for leakproof construction

• Factory installed high and low pressure switches

• Thread-on pressure switches for simple, quick replacement

• Filter drier shipped loose for installation flexibility

• Charged for 15 feet of line set

      Coil Features:

• Dedicated Upflow

• Tightly sealed, painted steel cabinet with wall to wall insulation to ensure <2% air leakage

• Single protruding right side dual drain port for easy installation and service access

• Omniguard™ Total Corrosion Protection* our advanced evaporator coil helps protect against leaks and corrosion for long term performance

• Microban® antimicrobial additive in the drain pan to resist mold and mildew growth

• Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines

• Preformed flanges in outlet for quick and easy plenum connections

• One of the lowest water retention drain pans in the industry to minimize mold and mildew growth

• Interlocking door assemblies and snug line seal grommets to minimize air leakage

• Foil-face insulation for easy cleaning

• Tubing located at door split for easy coil service or cleaning

• All drain pans are compatible with UV lights

• All piston coils are compatible with R22 or R410a

• 10-year limited parts warranty available when applied with a system. See limited warranty document for details.

These components were selected by HVAC specialists to maximize their performance and efficiency. This system is certified under AHRI # 209442687 to give you 13.8 SEER2

Please note that this condenser comes pre-charged with R-410A liquid refrigerant and by Federal law cannot be released to the atmosphere. You can purchase this equipment without being EPA certified, and if you are mechanically inclined you may perform about 90% of the equipment installation yourself. However we strongly recommend to have a professional heating/cooling contractor do the final part of the installation including managing the refrigerant. An HVAC contractor has the tools and know-how to do this work. Also, having a contractor perform the final startup and inspection of this condenser validates your warranty with Alpine.

Click the links below to check each components' specifications and documentation.

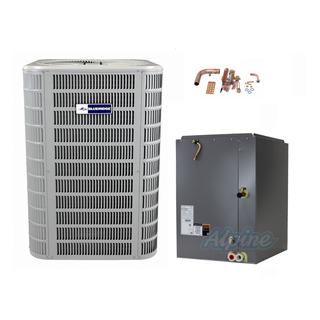

This system includes:

BC1P60C

5 Ton, W 21 x H 31.5 x D 21 Painted Cased Evaporator Coil

BA17L60P

5 Ton, 13.8 SEER2 Condenser W 32.25 x H 43.25 x D 32.25 R-410A Refrigerant

BGH4TXV03

5 Ton TXV Kit

WARRANTY
10 year limited warranty with online registration
5 year limited warranty without online registration
