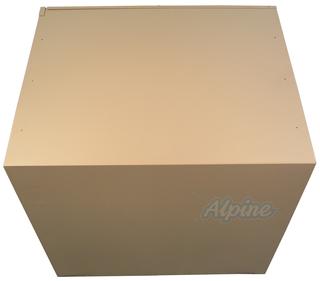

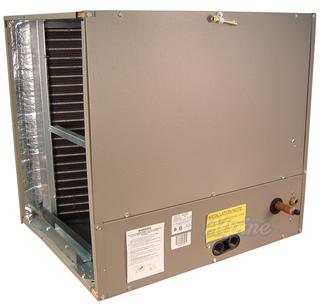

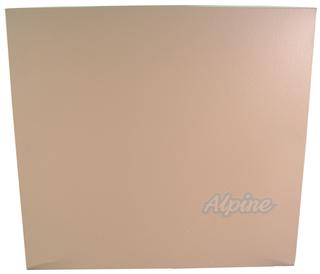

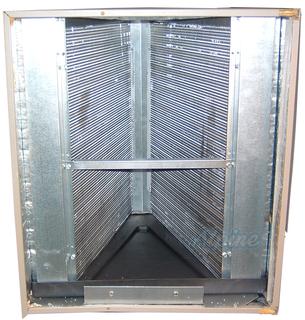

4 Ton, H 24.5 x D 21.125 x L 26, Horizontal Evaporator Coil
4 Ton, H 24.5 x D 21.125 x L 26, Horizontal Evaporator Coil
Model: Goodman CHPF048D2A
highlights
Horizontal Coils (CHPF Series)
- No-rust, high temperature thermoplastic drain pans feature a low water retention design
- Check flowrater expansion device for heat pump or cooling only applications

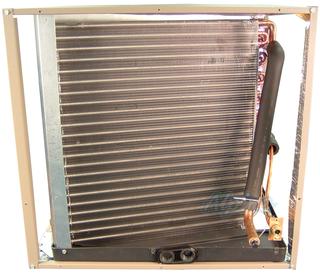

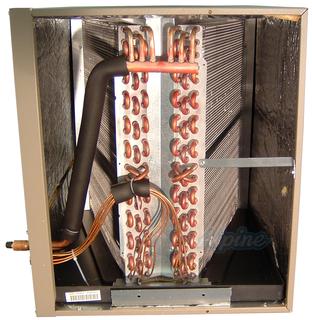

- Rifled copper tubing and wave pattern aluminum fin coils
- Foil-faced insulation
- High-quality post-paint cabinet
- Split-seam front–excellent access
Specs
System Information
Configuration
Horizontal
Number of Rows
3
Performance
Base Cooling Capacity
48000 BTU
Nominal CFM
1950
Static Pressure Wet Coil
0.31
Cooling Tonnage
4 Tons
Line Set Information
Liquid Line Size (OD)
3/8 Inches
Product Dimensions
Coil Height
24 1/2 inches
Length
26 Inches
Important Measurements
Plenum Opening Width
19 inches
Plenum Opening Height
23.5 inches
Documents
Install Instructions - Horizontal 2-Way Coils - CH(PDF, 264 KB)- Piston Kit Chart - Goodman Evaporator Coils(PDF, 19.2 KB)
Goodman Coils to Furnaces Chart(HTM, 55.8 KB)- Goodman Evaporator Coil Brochure 2022(PDF, 775 KB)
- Goodman Evaporator Coil Warranty 2022(PDF, 482 KB)
- Goodman Evaporator Coil Spec Sheet 2023(PDF, 3.64 MB)
- Goodman Coil - How To Change Coil Orifice(PDF, 1.25 MB)
