5 Ton AC, 13 SEER Horizontal AC and Evaporator Coil Kit
5 Ton AC, 13 SEER Horizontal AC and Evaporator Coil Kit
Model: Blueridge BA13L48P-BH1P60D
![](/assets/images/blueridge-product-templates/icons/arrow-right.png)
![](/assets/images/blueridge-product-templates/icons/arrow-blue.png)
Model: Blueridge BA13L48P-BH1P60D
- Pro Installation (Learn More)
When you consider a Blueridge system, quality and value are a given. You’re getting peace of mind with great features and a smart design—and best of all, you get it right now. When you think about everything Blueridge delivers, your decision is easy. With Blueridge, all your heating and cooling questions are answered. The performance and reliability you want are right here, and ready to go to work.
Blueridge air conditioning units are built in North America for an unbeatable combination of quality and price. They provide highly efficient, powerful cooling during hot weather, and are designed to last, with quiet operation, and ease of maintenance.

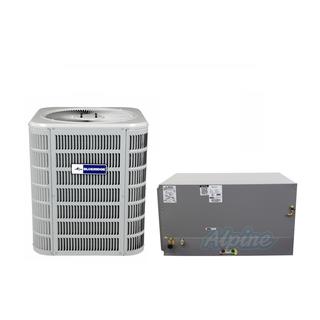

This system is designed to be installed in a horizontal application paired with a furnace that is laying on its side. It consists of a 5 ton, 13 SEER, AC condensing unit, and horizontal evaporator coil. It is a certified, 13 SEER matching AC system.
The evaportor coil is 24.5 inches tall and is designed to be installed on the supply side of a 24.5 inch tall furnace (laying on its side) although it is both common and acceptable to install it with a 21 inch tall furnace as well with some minor duct work modifications.
We design our system bundles to provide homeowners and contractors with a new HVAC system in one simple purchase. If you'd like help picking out the best option for your needs, give us a call at 1 800 865 5931. Our system design consultants have decades of combined experience helping homeowners select the right equipment. If you have any questions, concerns or just need some guidance, please get in touch with us. We're here to help.
For any additional installation components please take a look at our Accessories section to add the appropriate length line sets, electrical connections, and other parts to make your installation a breeze.
Condenser Standard Features:
-
R410a Refrigerant
-
Factory installed high pressure switch
-
High-quality condenser coil with copper tubing and enhanced louvered fin for maximum heat transfer capacity
-
Top discharge with fan orifice to direct hot air away from living area and shrubbery
-
All units factory run tested
-
Available with louvered panel or wire guard coil protection
-
Easy access to electrical panels
-
Corner mounted service valves for easy hook-up and service
-
Liquid line filter drier shipped loose
-
Charged for 15 feet of interconnecting tubing
-
All units are ETL and ETLC approved and AHRI certified
Coil Features:
-
Dedicated Horizontal
-
Tightly sealed, painted steel cabinet with wall to wall insulation to ensure <2% air leakage
-
Single protruding right side dual drain port for easy installation and service access
-
Omniguard™ Total Corrosion Protection* our advanced evaporator coil helps protect against leaks and corrosion for long term performance
-
Microban® antimicrobial additive in the drain pan to resist mold and mildew growth
-
Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines
-
Preformed flanges in outlet for quick and easy plenum connections
-
One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
-
Interlocking door assemblies and snug line seal grommets to minimize air leakage
-
Foil-face insulation for easy cleaning
-
Tubing located at door split for easy coil service or cleaning
-
All drain pans are compatible with UV lights
-
All piston coils are compatible with R22 or R410a
-
10-year limited parts warranty available when applied with a system. See limited warranty document for details.
These components were selected by HVAC specialists to maximize their performance and efficiency. This system is certified under AHRI # 207254381 to give you 13 SEER
Please note that this condenser comes pre-charged with R-410A liquid refrigerant and by Federal law cannot be released to the atmosphere. You can purchase this equipment without being EPA certified, and if you are mechanically inclined you may perform about 90% of the equipment installation yourself. However we strongly recommend to have a professional heating/cooling contractor do the final part of the installation including managing the refrigerant. An HVAC contractor has the tools and know-how to do this work. Also, having a contractor perform the final startup and inspection of this condenser validates your warranty with Alpine.
Click the links below to check each components' specifications and documentation.
|
||
|
||
|
||
|
||
BA13L48P | ||
|
Enjoy free shipping on any accessories purchased with the Blueridge BA13L48P-BH1P60D.
Required Components for Installation
- Blueridge BA13 BA16 Owners and Installation Manual(PDF, 782 KB)
- Blueridge Long Lineset Instructions(PDF, 667 KB)
- Blueridge Air Conditioning Condenser Brochure(PDF, 4.45 MB)
- Blueridge Evaporator Coil Spec Sheet(PDF, 650 KB)
- BA13 Spec Sheet 7/21(PDF, 4.64 MB)
- Blueridge Horizontal Coil Installation Manual(PDF, 902 KB)
- AHRI Certificate 207254381(PDF, 143 KB)
- Wire Gauge Sizes(PDF, 40.9 KB)
- Blueridge Unitary Equipment Warranty (Ver. 2.2)(PDF, 551 KB)
